Weight
Showing all 4 results
-
Sensors, Weight

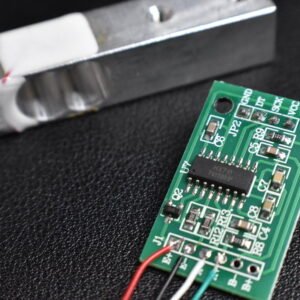

HX711 Module Load Cell Voltage Amplifier
The HX711 Dual-Channel 24 Bit Precision A/D weight Pressure Sensor Load Cell Amplifier and ADC Module is a small breakout board for the HX711 IC that allows you to easily read load cells to measure weight. By connecting the module to your microcontroller you will be able to read the changes in the resistance of the load cell with some calibration. You?ll be able to get very accurate weight measurements.
SKU: n/a -
Sensors, Weight

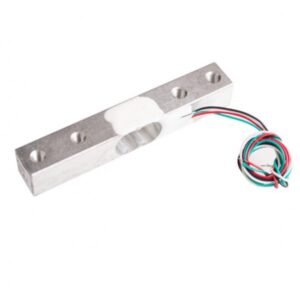

Load Cell 20Kg
- Rated Load: 20Kg
- Rated Output: 1.0 ±0.15mV/V
- Zero Output: ±0.1mV/V
- Cree: 0.03%F.S./30min
- Input End: Red+, Black-
- Output End: Green+, White-
- Input Impedance: 1115±10% Ω
- Output Impedance: 1000±10% Ω
- Maximum working voltage: 15V DC
- Operating temperature range: -20~60°C
- Total Size: 80 x 13 x 13mm/3.14 x 0.51 x 0.51″(L x W x H)
SKU: n/a -
Sensors, Weight
Load Sensor – 50kg
- Capacity: 40-50kg
- Comprehensive Error: 0.05mv/v
- Output Sensitivity: 1.0 0.1mv/v
- Nonlinearity: 0.03%FS
- Repeatability: 0.03%FS
- Hysteresis: 0.03%FS
- Creep: 0.03 (3min)%FS
- Zero Drift: 0.03(1min)%FS
- Temp. Effect on Zero: 10 1Zero %FS/
- Temp. Effect on Output: 0.05%FS/10
- Zero Output: 0.1mV/V
- Input Resistance: 1000 20
- Output Resistance: 1000 20
- Insulation Resistance: 5000M
- Excitation Voltage: 10V
- Operation Temp. Range: 0+50
- Overload Capacity: 150%FS
SKU: n/a -
Sensors, Weight

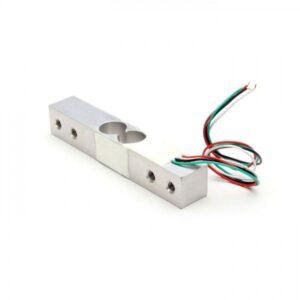

Loadcell 10kg
- Rated Load: 10Kg
- Rated Output: 1.0 ±0.15mV/V
- Zero Output: ±0.1mV/V
- Cree: 0.03%F.S./30min
- Input End: Red+, Black-
- Output End: Green+, White-
- Input Impedance: 1115±10% Ω
- Output Impedance: 1000±10% Ω
- Maximum working voltage: 15V DC
- Operating temperature range: -20~60°C
- Total Size: 80 x 13 x 13mm/3.14 x 0.51 x 0.51″(L X W X H)
SKU: n/a
