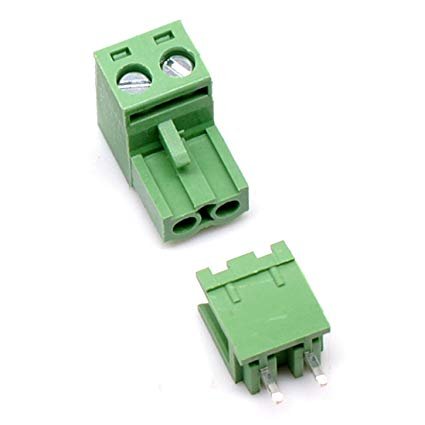

2 Pin Terminal Block Male/Female

Features:

.This is a 2 pin 2 way Straight Pin Screw Terminal Block Connector. Molded-in green UL94-V0 flame retardant PA. It has a double interlocking mechanism for increased strength. It has also guided pin alignment.

Specification :

• Poles: 2Pin
• Rated voltage:300V
• Rated current: 10A
• Contact Resistance: 20m MAX
• Withstanding voltage: AC 1500V/1Min
• Wire range: 24-18A WG
• Temperature range:-40~ +105C
• MAX soldering:+250C for 5sec
• Torque:0.2Nm(1.8lb.in)
• Withstand length:4.5~5mm
• Captive screws
• Guided pin alignment
• Double interlock mechanism for increased strength
