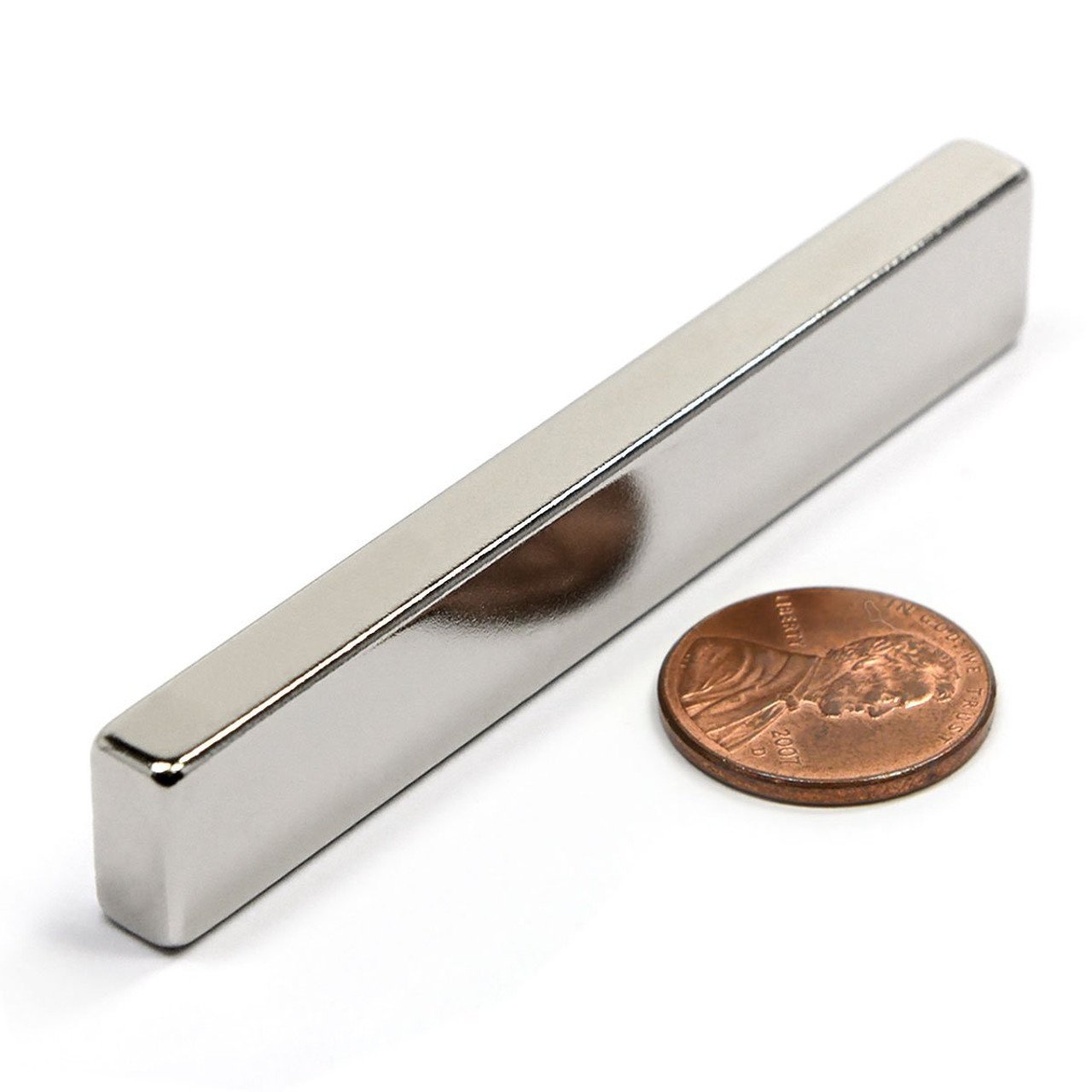

High Quality Super Strong Permanent Bar Shaped Magnet
High Quality Super Strong Permanent Bar Shaped Magnet - Image 2
High Quality Super Strong Permanent Bar Shaped Magnet - Image 3

High Quality Super Strong Permanent Bar Shaped Magnet

NdFeB magnet is an alloy magnet made from Nd,Fe,B and other metal elements,which has the high remanence,high coercive force,high energy and high performance/cost ratio.The highest magnetic properties is from 33MGOe to 52MGOe,and we are able to control the magnetic properties within the range as you demanded,like SH,UH,EH such high stable properties could be produced as per your industrial application.

₨ 159 ₨ 208

NdFeB magnet is an alloy magnet made from Nd,Fe,B and other metal elements,which has the high remanence,high coercive force,high energy and high performance/cost ratio.The highest magnetic properties is from 33MGOe to 52MGOe,and we are able to control the magnetic properties within the range as you demanded,like SH,UH,EH such high stable properties could be produced as per your industrial application.

Product Description:

Product Name High Quality Super Strong Permanent Bar Shaped Magnet for Switchboard
Material Neodymium-Iron-Boron : the strongest available permanent magnet with a maximal energy product of more than 50 MGOe with an excellent coercivity.
Max. Working Temperature Grade Max. Operating Temperatures
  N35-N52 80°C (176°F)
  33M- 48M 100°C (212°F)
  33H-48H 120°C (248°F)
  30SH-45SH 150°C (302°F)
  30UH-40UH 180°C (356°F)
  28EH-38EH 200°C (392°F)
  28AH-35AH 220°C (428°F)
Magnet Shape Neodymium magnet can be made in many kinds of shapes like Ring, Disc, Cylinder, Arc, Block, Stick, Cuboid, Cube, Bar, Countersunk, Segment, Trapezoid and other abnormal shape according to customers’ requirement.  Customized shapes for  35SH magnet for high low RPM Synchronous motor  are available.
Coating Double Nickel, Nickel Copper Nickel, Zinc, Gold, Copper, Chemical, PTFE, Parylene, Everlube, Passivation,Tin, Aluminium, Teflon or Epoxy, depending on the application.
Technology Advantage Depending on advanced R&D center, Quality control team and professional machining technicians, we can surpass our competitors in the stability of quality and superiority of property.
Tight tolerances Standard tolerances are ± 0.1 mm. If grinded ± 0, 05 mm/± 0, 03 mm. Tighter tolerances are available on request.
