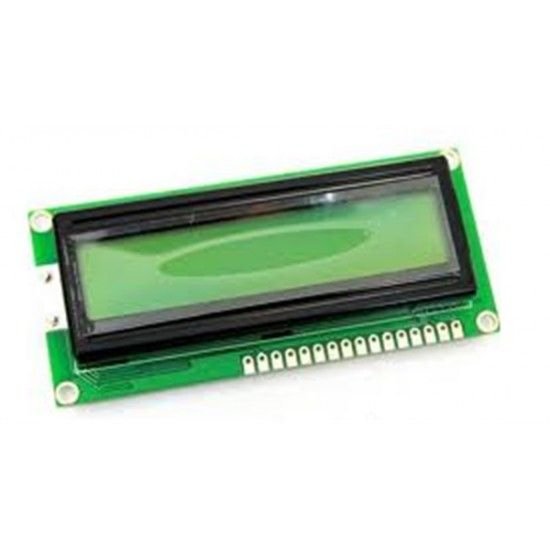

LCD Green 20x2 display module (JHD202C)
LCD Green 20x2 display module (JHD202C) - Image 2
LCD Green 20x2 display module (JHD202C) - Image 3
,

LCD Green 20×2 display module (JHD202C)

Availability:

Out of stock
  1. Color of display: Green
  2. Color of character: Yellow
  3. Size : 20 x 2 (20 character x 2 rows)
  4. Input voltage: +5V
  5. Supply current: 1.5mA
  6. Board dimensions  :  116mm x 38mm (LxB)
  7. Display dimensions   :   83mm x 19mm (LxB)

₨ 252 ₨ 328

Out of stock

LCD Green 20×2 display module (JHD202C)

LCD (Liquid Crystal Display) screen is an electronic display module. These modules are preferred over seven segments and other multi segment LEDs. The reasons being: LCDs are economical; easily programmable; have no limitation of displaying special & even custom characters (unlike in seven segments), animations and so on.

FEATURES

  • Type: Character
  • Display format: 20 x 2 characters
  • Built-in controller: ST 7066 (or equivalent)
  • Duty cycle: 1/16
  • 5 x 8 dots includes cursor
  • + 5 V power supply (also available for + 3 V)
  • LED can be driven by pin 1, pin 2, pin 15, pin 16 or A and K
  • N.V. optional for + 3 V power supply
