Meanwell Switching Mode Power Supply 5V-7A

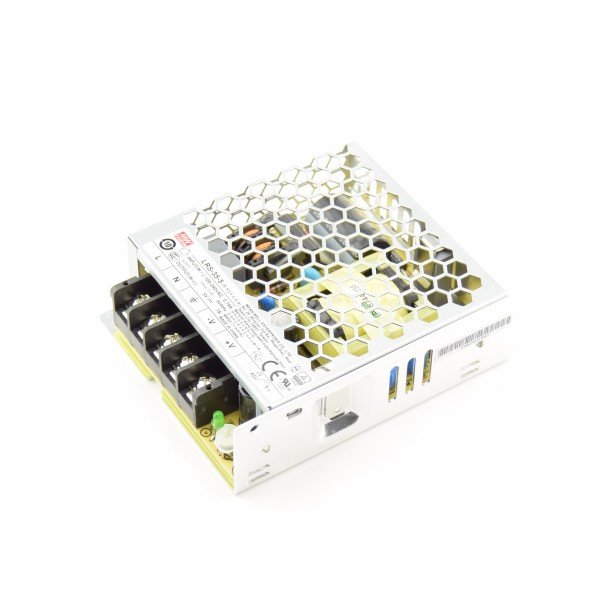

Meanwell Switching Mode Power Supply 5V-7A - Image 2
Meanwell Switching Mode Power Supply 5V-7A - Image 3
Meanwell Switching Mode Power Supply 5V-7A - Image 4
,

Meanwell Switching Mode Power Supply 5V-7A

Availability:

Out of stock
  • Output Voltage 5V
  • Type Enclosed Type
  • Approx. Wattage 35W
  • Features Standard
  • Series LRS(Reliable)
  • Mechanical Form Enclosed
  • IP Level Non-Waterproof
  • Input Voltage 100-240V auto-select

₨ 1,975

Out of stock

Meanwell Switching Mode Power Supply 5V-7A

Meanwell Switching Mode Power Supply offers a power of 35W, a voltage of 5V DC, and a current of 7A. With a universal connection system, it will fit easily into a system. In addition, this power supply has interesting features for those who wish to integrate it into a DIY project, including the presence of protection against short circuits, overloads or overvoltages, and cooling by convection air. In addition, it is designed to last, incorporating high-quality components, such as its 105C Long Life electrolytic capacitors.

Key Specifications:

  • Output Voltage 5V
  • Type Enclosed Type
  • Approx. Wattage 35W
  • Features Standard
  • Series LRS(Reliable)
  • Mechanical Form Enclosed
  • IP Level Non-Waterproof
  • Input Voltage 100-240V auto-select

Features:

  • No-load power consumption <0.2W for 35W/50W; <0.3W for 75W/100W
  • Universal AC input / Full range
  • Withstand 300VAC surge input for 5 seconds
  • Ultra-compact and 1U low profile
  • Withstand 5G vibration test
  • High operating temperature up to 70oC
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances
  • Operating altitude up to 5000 meters
  • High efficiency, long life, and high reliability
  • LED indicator for power on
  • Low cost

Specifications:

AC input voltage range 85~264VAC; 120~370VDC
AC inrush current (max.) Cold start, 45A at 230VAC
DC adjustment range 10% by potentiometer
Overload protection Range 110%~150%
Overload protection Type Hiccup mode, auto-recovery
Overvoltage protection Range 115%~135% rated output voltage
Overvoltage protection Type Shut down o/p voltage, re-power on to recover
Withstand voltage 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC, 1 minute
Working temperature -30~+70C (refer to output derating curve)
Safety standards UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, CCC GB4943 approved
EMC standards EN55022 class B, EN55014, EN61000-3-2, 3, EN61000-4,2,3,4,5,6,8,11, GB9254
Connection 5P/9.5mm pitch terminal block
Dimension (LxWxH) 99x 82x 30
