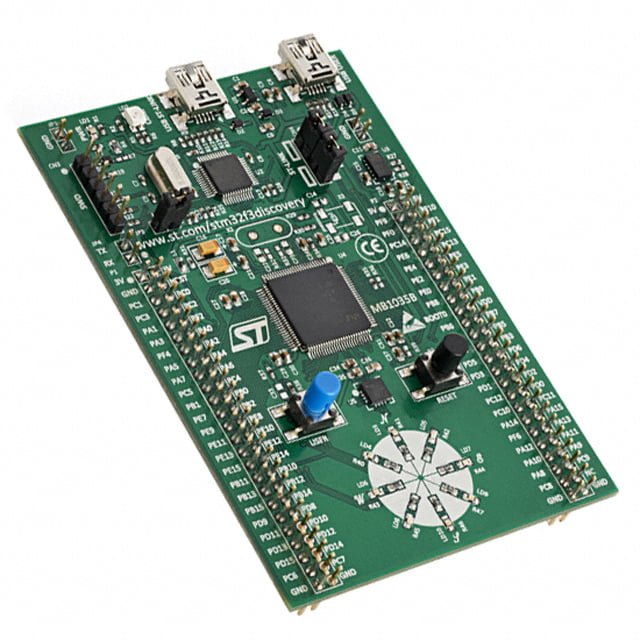

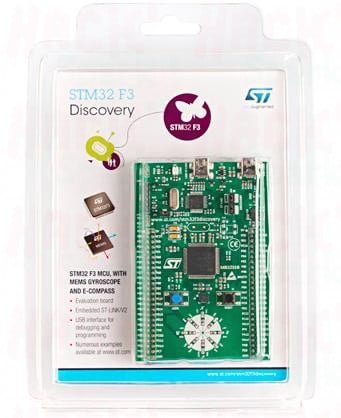

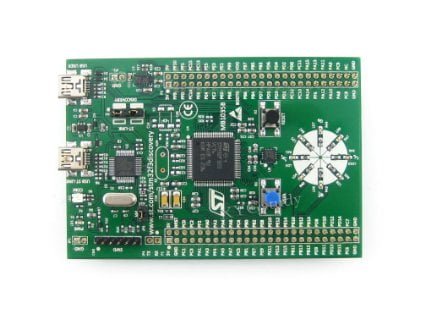

STM Discovery Kit STM32F3 STM32F303VC
- STM32F303VCT6 microcontroller featuring 256 KB Flash, and 48 KB RAM in an LQFP100 package
- On-board ST-LINK/V2 with selection mode switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging)
- Board power supply: through USB bus or from an external 3 V or 5 V supply voltage
- External application power supply: 3 V and 5 V
- L3GD20, ST MEMs motion sensor, 3-axis digital output gyroscope
- LSM303DLHC, ST MEMs system-in-package featuring a 3D digital linear acceleration sensor and a 3D digital magnetic sensor
- Ten LEDs:
- LD1 (red) for 3.3 V power on
- LD2 (red/green) for USB communication
- Eight user LEDS, LD3/10 (red), LD4/9 (blue), LD5/8 (orange) and LD6/7 (green)
- Two pushbuttons (user and reset)
- USB USER with Mini-B connector
- Extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing
₨ 8,999 ₨ 10,400
STM32F3 Discovery board Price in Pakistan
The STM32F3 Discovery kit is built around the STM32F303VCT6 Arm Cortex-M4 mixed-signal microcontroller. Onboard ST-LINK, motion sensors, user LEDs, buttons and USB connectivity make it practical for motor control, sensor fusion, digital-signal processing and embedded-learning projects.
If you are comparing an STM32F3 Discovery board price in Pakistan, verify the board revision, USB connector and supporting software requirements. ST schematics, user manuals and STM32Cube examples should be used when assigning pins or configuring onboard sensors.
STM32F3DISCOVERY STM32F3 Discovery Kit
The STM32F3DISCOVERY allows users to easily develop applications with the STM32F3 Series mixed-signal microcontroller based on the Arm Cortex-M4. It includes everything required for beginners and experienced users to get started quickly.
Based on the STM32F303VCT6, it includes an ST-LINK/V2 or ST-LINK/V2-B embedded debug tool, accelerometer, gyroscope and e-compass ST MEMS, USB connection, LEDs, and push-buttons.
STM32F3DISCOVERY STM32F3 Discovery Kit Features
- STM32F303VCT6 microcontroller featuring 256 KB Flash, and 48 KB RAM in an LQFP100 package
- On-board ST-LINK/V2 with selection mode switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging)
- Board power supply: through USB bus or from an external 3 V or 5 V supply voltage
- External application power supply: 3 V and 5 V
- L3GD20, ST MEMs motion sensor, 3-axis digital output gyroscope
- LSM303DLHC, ST MEMs system-in-package featuring a 3D digital linear acceleration sensor and a 3D digital magnetic sensor
- Ten LEDs:
- LD1 (red) for 3.3 V power on
- LD2 (red/green) for USB communication
- Eight user LEDS, LD3/10 (red), LD4/9 (blue), LD5/8 (orange) and LD6/7 (green)
- Two pushbuttons (user and reset)
- USB USER with Mini-B connector
- Extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing
Browse more STM32 development boards at Robonation Pakistan. For setup limits and technical guidance, review the official ST STM32F3DISCOVERY page.
Frequently Asked Questions
Which MCU is used on the STM32F3 Discovery kit?
The board uses the STM32F303VCT6 Arm Cortex-M4 mixed-signal microcontroller.
Which motion sensors are onboard?
The listed board includes a gyroscope plus an accelerometer and e-compass sensor package.
Does the board include a programmer and debugger?
Yes. It includes an onboard ST-LINK interface for programming and debugging.
What should be checked before connecting the STM32F3 Discovery board?
Confirm the board revision, USB connector type, power source and I/O voltage limits in the matching ST manual before attaching external hardware.
Where are examples for the onboard sensors available?
ST provides board documentation and STM32Cube examples that cover the STM32F303 MCU and onboard peripherals for the appropriate board revision.
