Bluetooth
Showing all 3 results
-
Arduino & IOT Boards, Bluetooth, Communication Modules, Module

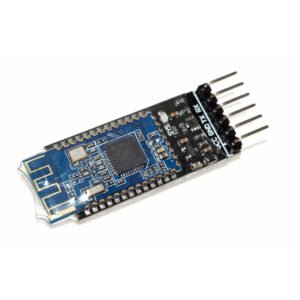

AT-09 HM10 / HM-10 4.0 BLE Bluetooth Serial CC2540 CC2541 Module For IOS 6/Android 4.3
Arduino & IOT Boards, Bluetooth, Communication Modules, ModuleAT-09 HM10 / HM-10 4.0 BLE Bluetooth Serial CC2540 CC2541 Module For IOS 6/Android 4.3
- Ultra Low Standby Power 90uA ~ 400uA
- Communication Distance Range : 100 ft / 60mtr
- Super Fast Reaction Speed : 0.4 Sec.
- Built-in PCB antena
- Power Input : 3.6V To 6V DC (Cannot higher than 6V)
- Size : 43 X 15 mm
- Color : Blue
- Net weight : 4g
SKU: n/a -
Bluetooth, Communication Modules
HC-06 Bluetooth Module
HC-06 is a Bluetooth module designed for establishing short range wireless data communication between two microcontrollers or systems. The module works on Bluetooth 2.0 communication protocol and it can only act as a slave device. This is cheapest method for wireless data transmission and more flexible compared to other methods.
SKU: n/a -
Arduino & IOT Boards, Bluetooth, Communication Modules

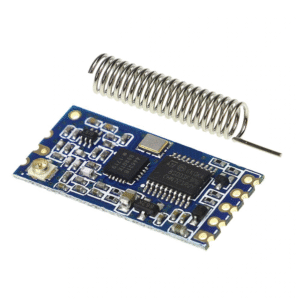

HC-12 HC12 Si4463 433MHZ RF Wireless Serial Module With Antenna
Arduino & IOT Boards, Bluetooth, Communication ModulesHC-12 HC12 Si4463 433MHZ RF Wireless Serial Module With Antenna
- Working frequency: 433.4MHz to 473.0MHz
- Supply voltage: 3.2V to 5.5VDC
- Communication distance: 1,000m in the open space
- Serial baud rate: 1.2Kbps to 115.2Kbps（default 9.6Kbps）
- Receiving sensitivity: -117dBm to -100dBm
- Transmit power: -1dBm to 20dBm
- Interface protocol: UART/TTL
- Operating temperature: -40℃ to +85℃
- Dimensions: 27.8mm x 14.4mm x 4mm
SKU: n/a
