Charging Modules

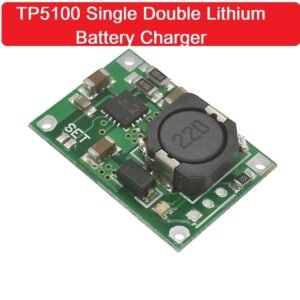

• Double 8.4v / 4.2v lithium rechargeable single
• Programmable charge current. 0. 1A-2A
• Programmable steady precharge current 10% -100>#/li###
• Wide operating voltage, maximum reach I8V
• Red and green LED charge status indicator
• Chip temperature protection, overcurrent protection, under-voltage protection
• Battery temperature protection, reverse battery shutdown, short circuit protection
• Switching frequency 400Khz, usable inductance 20uH and more
• PWR_ON Power battery for switching control

– 4 independent charging channels with built-in micro-computer management system to ensure the high efficiency

– USB output function: Built with 5V / 1000mAh output

– 300mA / 500mA / 700mA / 1000mA charging current for selection

– CC / CV charge mode to maintain a constant current flow and protect battery and users’ safety

– full Fledged LCD display with a variety of info

– Refresh function for 0V battery

– Quick test mode – 4 channels detect the battery capacity quicker than the Nor mode

– Identifies broken batteries, 0V rechargeable battery activation, can’t charge 1.65 – 1.85V batteries

– Protections: over-charge, over-discharge, reverse polarity, short circuit protections, temperature control

– Charging between 1.65 – 2.2V / bad battery recognition and activation

• Automatic Charging: Starts and stops charging automatically.
• Accurate Voltage Monitoring: Keeps track of your battery’s voltage.
• Versatile Battery Support: Works with many different battery types.
• Safe and Reliable: Protects your battery from overcharging, over discharging, and short circuits.
• Easy to Set: Adjust the charging settings to fit your needs.
• Compact Size: Small and easy to use.
