Peltier & accessories
Showing all 9 results
-
Cooling Fan, Motors & Drivers, Peltier & accessories
12V DC Cooling Fan 80mm
12v DC cooling fan 80mm Ideal for compact PC cases (HTPC, ITX, Small Form Factor) and other chassis (intake & exhaust), replacement fan for NAS and other devices, etc. you can order all types of electrical and electronics components at ELECTRONATION.PK
SKU: n/a -
Cooling Fan, Motors & Drivers, Peltier & accessories
12V DC Fan 3 Inches
- Type: Axial Flow Fan
- Blade Material: Plastic
- Bearing Type: Ball/hyper bearing
- Bearing system type: Ball/Hydraulic bearing
- Rated voltage: 5V/12V/24V/48V
- Rated speed: 2000/2500/3000/3500/4000/5000RPM
- Maximum airflow: 26.13/33.02/38.10/43.90/49.50/63.50CFM
- Maximum pressure(mmH2O): 1.75/2.65/3.38/4.85/6.58/9.40mmH2O
- Maxima noise(dBA): 22.1/26.7/30.9/37.2/40.9/42.0dBA
- Function: by impedance, by IC, by IC with FG
- Safety approvals: CE, TUV, UL
- Lead wire: UL Type (+): Red wire ; (-): Black wire. This is a two-wire cooling fan
- Bearing Type: Dual Ball Bearings
- Life: Working up to 50000h at 25 degrees.
- Applications: Server cabinet, UPS power, computer, CPU, etc.
- Check the voltage whether fit your need. power the fan with corresponding voltage.
- Make sure the + (RED wire) and Black wire are connected to power correctly.
- 1 x 3 Inches12V DC Fan
SKU: n/a -
Cooling Fan, Motors & Drivers, Peltier & accessories
2.5inch 12V DC Fan Cooling Fan
2.5inch 12V DC Fan Cooling Fan is the best choice for customers. This Exhaust Fan with high-quality material is ideal for compact PC cases (HTPC, ITX, Small Form Factor) and other chassis (intake & exhaust), replacement fan for NAS and other devices, etc. This fan is made from injection-molded, plastic housing a durable DC motor for long life. 2.5 inch 12V DC Fan is 4 through holes to allow easy mounting to a variety of surfaces. Our 12V DC fans are the clear choice for anyone needing, quality, reliability, and low-cost cooling in their DIY project.
SKU: n/a -
-
-
Peltier & accessories

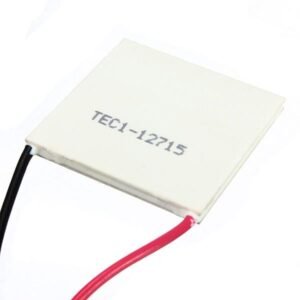

TEC1 12715 136.8W 12V-15.4V 15A Peltier
Utilized in high-end consumer, commercial, and military-grade applications for extreme performance and maximum energy efficiency, TEC1 Peltier Modules provide unmatched temperature differentials (DTmax) in cooling or heating applications. TEC1-12715 Peltier Modules from electron.com measure 50x50x3.9mm and offer 68C Delta T max (DTmax) at a maximum operating temperature of 138C. Capable of performing to exacting specifications, cooling or heating with precision in extreme environments, TEC1 Peltier Modules from electron.com have rapidly become an industry standard for numerous exacting thermoelectrics.
SKU: n/a -
Peltier & accessories, Solder Paste, Soldering Accessories & Tools
Thermal Paste Injection Type
Thermal grease (also called CPU grease, heat paste, heat sink compound, heat sink paste, thermal compound, thermal gel, thermal interface material, or thermal paste) is a thermally conductive (but usually electrically insulating) compound, which is commonly used as an interface between heat sinks and heat sources such as high-power semiconductor devices. The main role of thermal grease is to eliminate air gaps or spaces (which act as thermal insulation) from the interface area in order to maximize heat transfer and dissipation.
SKU: n/a -
Peltier & accessories

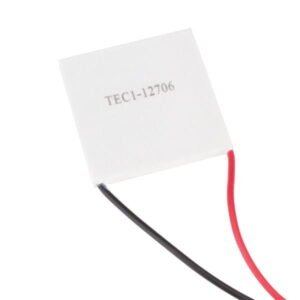

Thermoelectric Cooler Peltier Module TEC1-12706 12VDC 6A
- Ceramics thermoelectric Cooler semiconductor module TEC1-12706
- Small module.
- Its work is characterized by side refrigeration and side fever.
- Hot and cold on both sides of the temperature difference of 68 degrees
- Connected to the 12-volt power supply cooling piece on both sides there will be the difference in temperature, side cold side of the heat, do not long power cooler radiator, otherwise, it will cause cooler internal overheating and burning.
- Quality tested cooling cells.
- Solid-state, vibration-free, noise-free.
- Simple to install and operate.
- Fitted with 6-inch insulated leads
SKU: n/a
