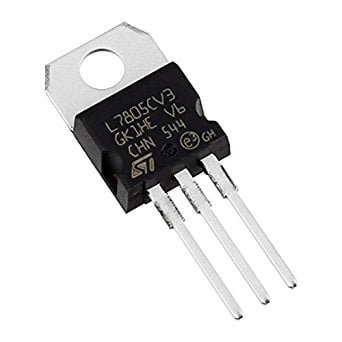

7805 Voltage Regulator
The voltage regulator IC maintains the output voltage at a constant value. 7805 provides +5V regulated power supply. Input voltage range 7V- 35V Current rating Ic = 1A Output voltage range VMax=5.2V ,VMin=4.8V.
₨ 26
Product Category: Linear Voltage Regulators – Standard
Polarity: Positive
Number of Outputs: Single
Output Type: Fixed
Output Voltage: 5 V
Output Current: 1.5 A
Line Regulation: 50 mV
Load Regulation: 100 mV
Dropout Voltage (Max): 2.5 V @ 1A
Maximum Operating Temperature: 150 C
Minimum Operating Temperature: 0 C
Mounting Style: Through Hole
