CD4013 – Dual D-Type Flip Flop

CD4013 – Dual D-Type Flip Flop

CD4013 – Dual D-Type Flip Flop device consists of two identical, independent data-type flip-flops. Each flip-flop has independent data, set, reset, and clock inputs and Q and Q outputs. These devices can be used for shift register applications, and, by connecting Q output to the data input, for counter and toggle applications. The logic level present at the D input is transferred to the Q output during the positive-going transition of the clock pulse. Setting or resetting is independent of the clock and is accomplished by a high level on the set or reset line, respectively.

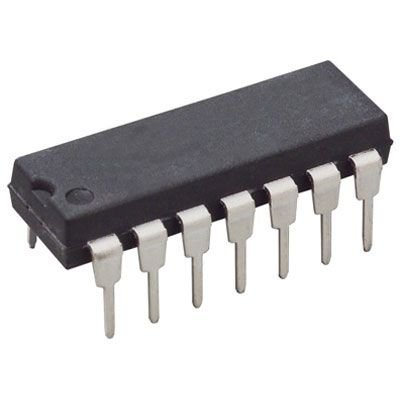

The CD4013 types are supplied in 14-pin dual-in-line plastic packages (E suffix), 14-pin small-outline packages (M, MT, M96, and NSR suffixes), and 14-pin thin shrink small-outline packages (PW and PWR suffixes).

Features:-

• Asynchronous Set-Reset Capability
• Static Flip-Flop Operation
• Medium-Speed Operation: 16 MHz (Typical) Clock Toggle Rate at 10-V Supply
• Standardized Symmetrical Output Characteristics
• Maximum Input Current Of 1- A at 18 V Over Full Package Temperature Range:
  • 100 nA at 18 V and 25C
• Noise Margin (Over Full Package Temperature Range):
  • 1 V at V_DD = 5 V
  • 2 V at V_DD = 10 V
  • 2.5 V at V_DD = 15 V

Detailed Specifications:-

Related Documents:

CD4013 IC Datasheet
