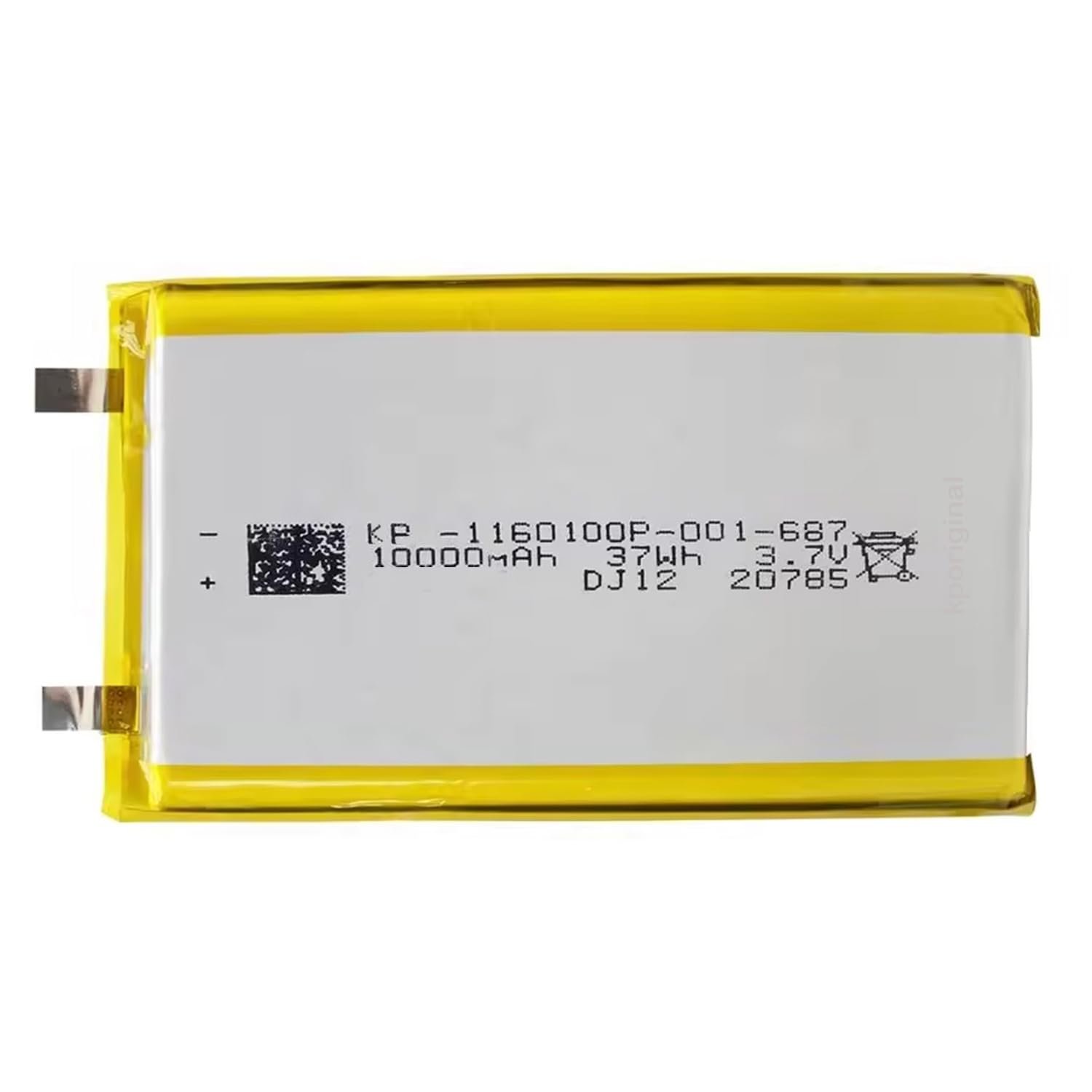

High Quality 3.7v 10000mah 1260110 Polymer Lithium Ion Li-ion Rechargeable Battery
3.7v 10000mAh Lithium Ion Battery More correctly, a lithium-ion battery is rechargeable using lithium-ion technology using a polymer electrolyte instead of a liquid one. High-conductivity semisolid (gel) polymers form this electrolyte. These batteries provide higher specific energy than other lithium battery types and are being used in applications where weight is a critical feature – like tablet computers, cellular telephone handsets or radio-controlled aircraft.
Features of 3.7v 10000mAh Lithium-Ion Battery :
- 100% brand new
- High quality and high capacity!
- Rating: DC3.7V 10000mAh
- Wire Length 50mm
- Charging current: standard charging, fast charging: 1.0C: 0.5C
- Standard charging method: 0.5C CC (constant current) charge to 4.25V,
- Then CV (constant voltage 4.2V) charges till the charge current is less than or equal to 0.05C.
- The maximum charge current: 1C
- Maximum discharge current: 1C
- Discharge cut-off voltage: 2.75V
- The discharge temperature: -20 degrees C~+60 degrees C
- Charging time: 3-7hrs (standard); 3hrs (fast)
- It can be recharged repeatedly
Specifications of 3.7v 10000mAh Lithium Ion Battery:
- Type: Lithium battery
- Capacity: 10000mAh
- Rechargeable: YES
- Charging Voltage: 4.2V
- Rated Voltage: 3.7V
- Working Temperature: -20°~50°

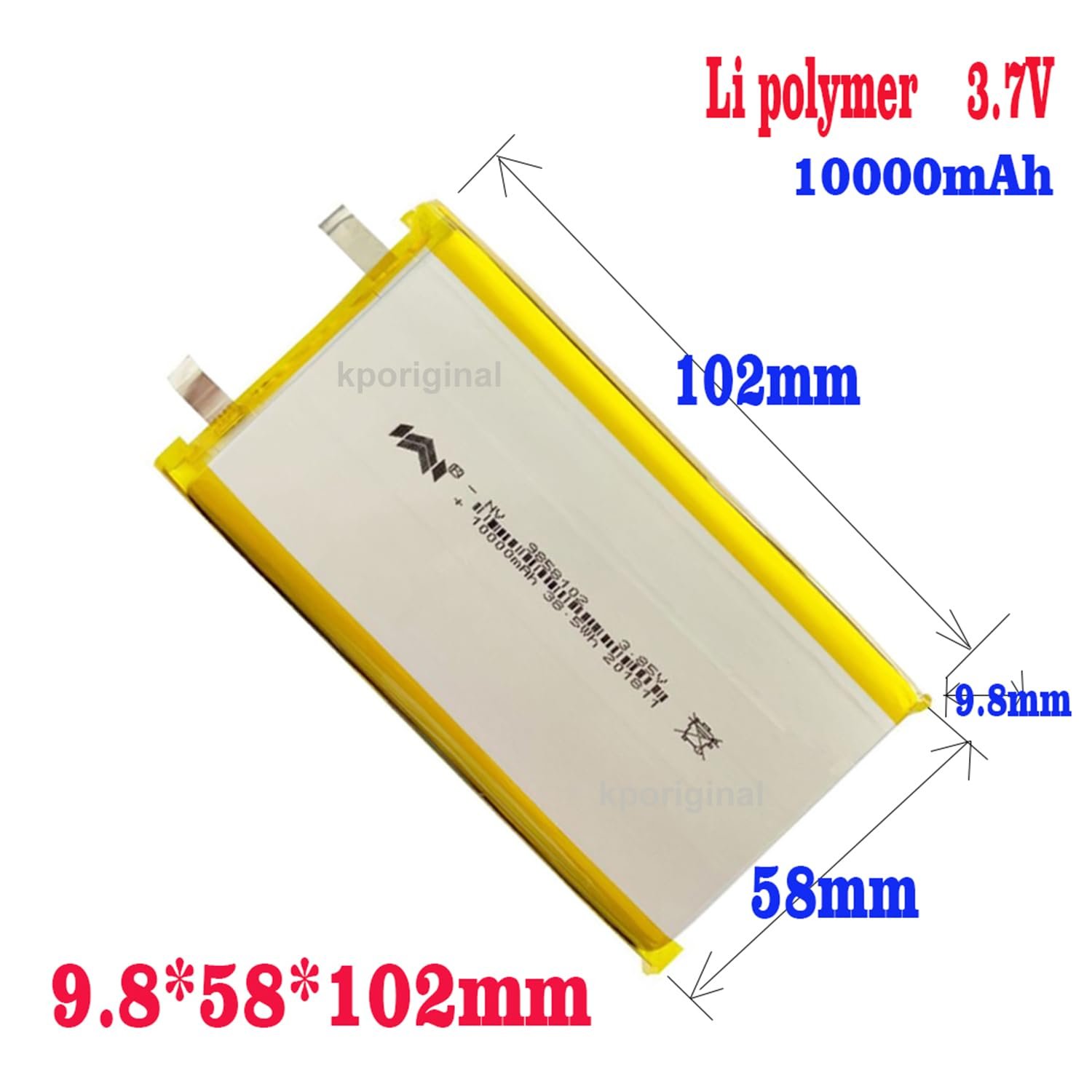

- Dimensions(L*W*H): About 110 x 60 x 12mm
Attention:
- Please allow tiny size deviations due to human measurement.
- Make sure your device’s battery space before you bid, we prefer you to purchase a smaller size battery.
- You should charge the battery before you use it.
- When the battery is not in use, it should be removed from the device.
- The red and black lines should not be connected to avoid short circuits after the battery is charged.
Package Includes:
1 x 3.7v 10000mAh Lithium Ion Battery
