HW632 HW-M632 XH-M603 CHARGING CONTROL MODULE
HW632 HW-M632 XH-M603 CHARGING CONTROL MODULE - Image 2
,

HW632 HW-M632 XH-M603 CHARGING CONTROL MODULE

Availability:

Out of stock
  1.  Model: HW632
  2. Input Voltage: DC 10-30V
  3. Display Precision: 0.1V
  4. Control Precision: 0.1V
  5. Output Type: direct output
  6. Voltage Tolerance: +/-0.1V
  7. Application Fields: 12-24V storage battery

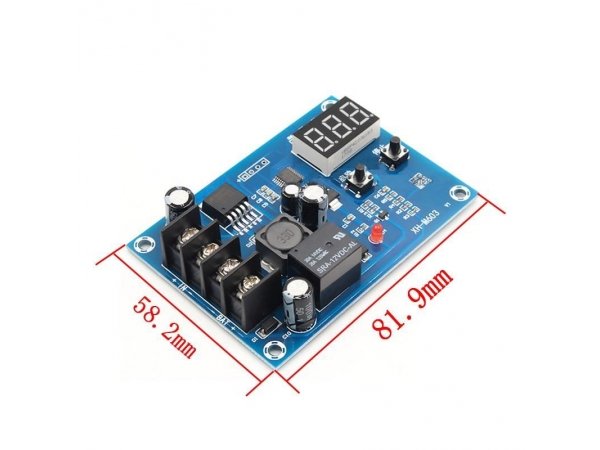

  8. Size: 82*58*18mm

₨ 749 ₨ 1,092

Out of stock

HW632 HW-M632 XH-M603 CHARGING CONTROL MODULE

  1.  Model: HW632
  2. Input Voltage: DC 10-30V
  3. Display Precision: 0.1V
  4. Control Precision: 0.1V
  5. Output Type: direct output
  6. Voltage Tolerance: +/-0.1V
  7. Application Fields: 12-24V storage battery
  8. Size: 82*58*18mm

Using Method:

  1. Set Starting Voltage: in the normal display voltage state, pressing the button will display the start charging voltage, long press for 3s the digital tube will flash, you can start or stop button to set the starting charge voltage value
  2. Set Stop Voltage: in the normal display voltage state, pressing the button will display the stopping charge voltage, long press the button for 3s the digital tube will flash, you can start or stop button to set the stopping charge voltage value
  3. Factory Reset: in power on state press the start & stop buttons at the same time, the digital tube will display 888, which represents factory reset settings

Package Included:

1* DC 12V-24V Lithium Battery Charge Control Protection Board with LED Display HW632
