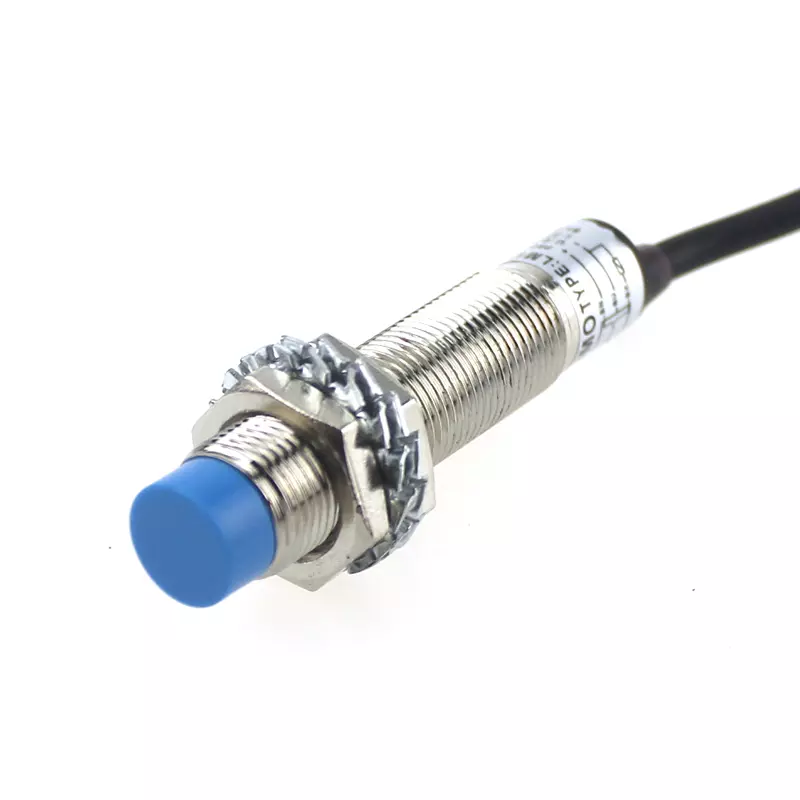

LM12-3004PA M12 detection distance 2mm 4mm Inductive Proximity Switch Sensor

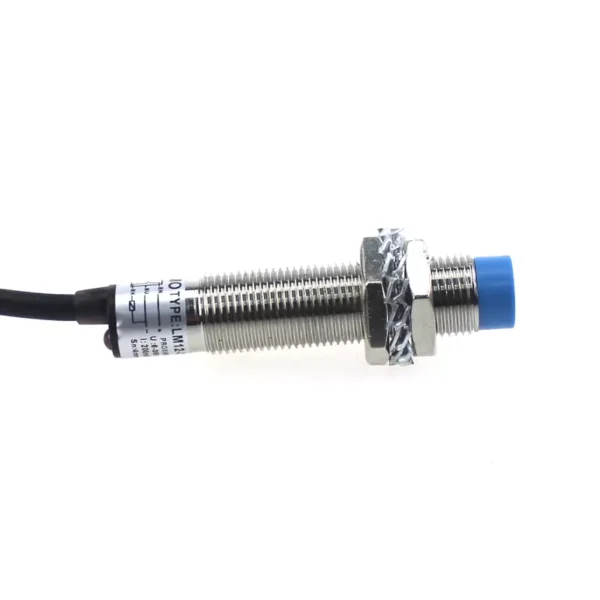

LM12-3004PA M12 detection distance 2mm 4mm Inductive Proximity Switch Sensor - Image 2

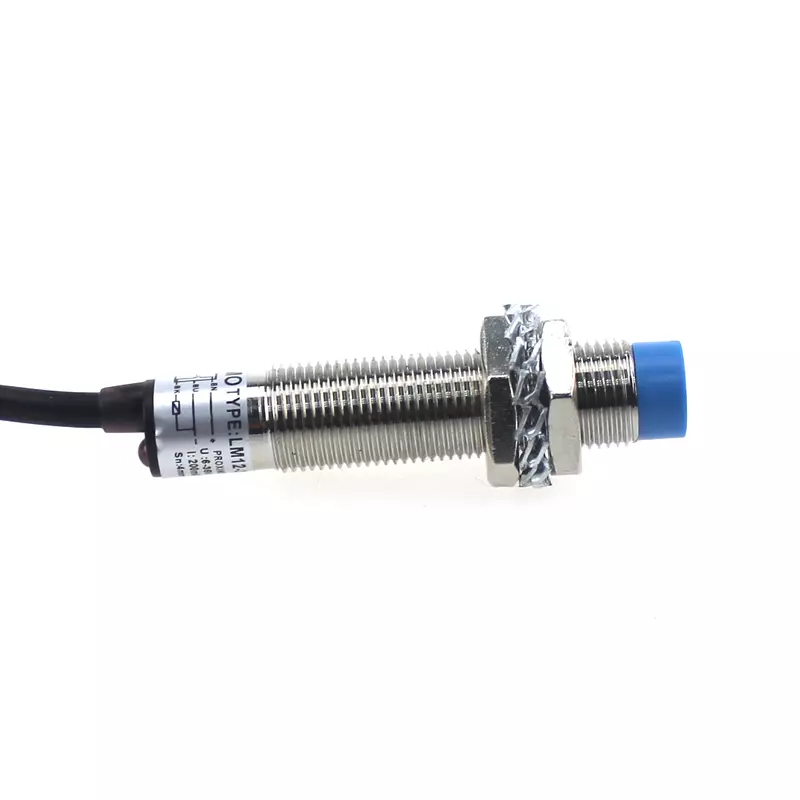

LM12-3004PA M12 detection distance 2mm 4mm Inductive Proximity Switch Sensor - Image 3
,

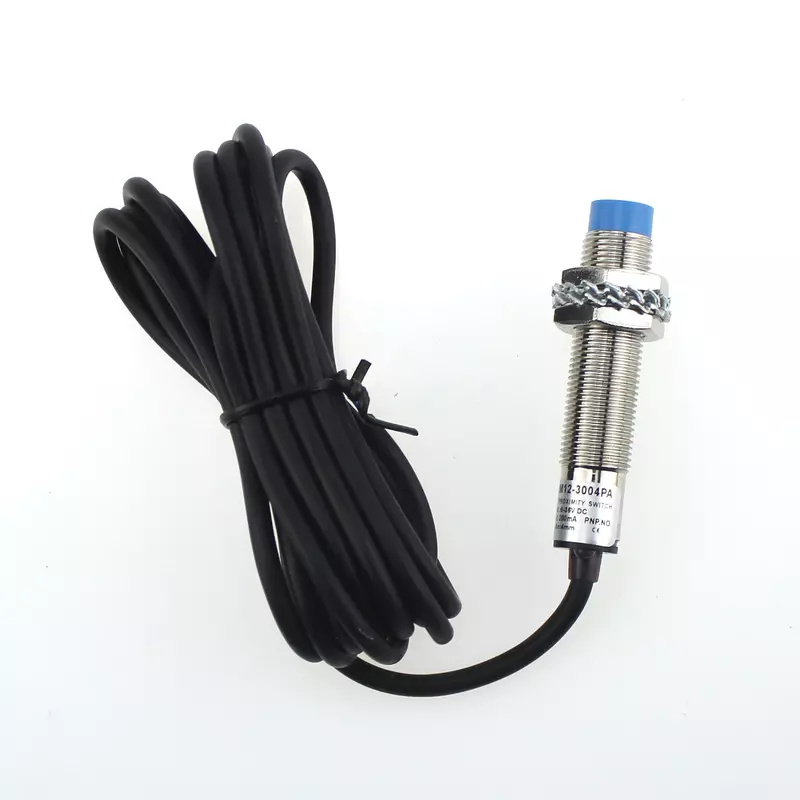

LM12-3004PA M12 detection distance 2mm 4mm Inductive Proximity Switch Sensor

Proximity switches are the most common solution for non-contact detection. The inductive type is the widely used proximity switch, which uses electromagnetic waves to detect the metal object near the sensor detection surface. In application, this is a very simple technology to detect 1”~2” metal objects.

₨ 999 ₨ 1,560

LM12-3004PA Cylinderical Inductive Proximity Switch
Outside diameter 12mm cylinder inductive proximity switch, sensing range from 2mm~4mm .

China YUMO offer customized design!

Detecting rang 2mm YUMO part no. other part no. OMRON Omron part no. Autonics  Part no.
Flush DC   NPN NO LM12-3002NA LJ12A3-2-Z/BX E2E-X2E1 PR12-2DN
NC LM12-3002NB LJ12A3-2-Z/AX E2E-X2E2 PR12-2DN2
NO+NC LM12-3002NC LJ12A3-2-Z/CX
  PNP NO LM12-3002PA LJ12A3-2-Z/BY E2E-X2F1 PR12-2DP
NC LM12-3002PB LJ12A3-2-Z/AY E2E-X2F2 PR12-2DP2
NO+NC LM12-3002PC LJ12A3-2-Z/CY
2 Wires NO LM12-3002LA LJ12A3-2-Z/EX
NC LM12-3002LB LJ12A3-2-Z/DX
AC SCR NO LM12-2002A LJ12A3-2-J/EZ E2E-X2Y1 PR12-2AO
NC LM12-2002B LJ12A3-2-J/DZ E2E-X2Y2 PR12-2AC
NO+NC
Relay output
                         Detecting rang 4mm
Non-flush DC NPN NO LM12-3004NA LJ12A3-4-Z/BX E2E-X5ME1 PR12-4DN
NC LM12-3004NB LJ12A3-4-Z/AX E2E-X5ME2 PR12-4DN2
NO+NC LM12-3004NC LJ12A3-4-Z/CX
PNP NO LM12-3004PA LJ12A3-4-Z/BY E2E-X5MF1 PR12-4DP
NC LM12-3004PB LJ12A3-4-Z/AY E2E-X5MF2 PR12-4DP2
NO+NC LM12-3004PC LJ12A3-4-Z/CY
2 Wires NO LM12-3004LA LJ12A3-4-Z/EX
NC LM12-3004LB LJ12A3-4-Z/DX
AC SCR NO LM12-2004A LJ12A3-4-J/EZ E2E-X5MY1 PR12-4AO
NC LM12-2004B LJ12A3-4-J/DZ E2E-X5MY2 PR12-4AC
NO+NC
Relay output



Sensor Characteristics
Output current DC 200mA
SCR/relay 300mA
Output voltage drop DC(NPN;PNP)type<3V;2wires type:<3.9V;AC type: AC <10VDC< 3V ;AC< 10V
Consumption current DC(NPN;PNP) DC 12V 8mA;24V 15mA; AC type: AC<10mA DC<15mA;AC<10mA
Standard detected object 15×15×1(A3 Iron)
Repeated precision 0.01
Response Frequency 400Hz/25Hz
Working environment temperature -25℃ ~+75℃
Insulation resistance ≥50MΩ
Shell material Metal
Protection grade IP67
Alternative model E2E-X5M□
