Servo Motor
Showing all 8 results
-
Clearance Sale, Motors & Drivers, Servo Motor

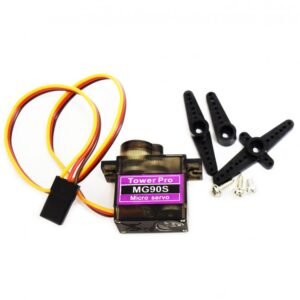

MG90S Metal Gear Micro Servo Motor
- Weight 9 grams.
- Dimension: 22.2 x 11.8 x 31 mm approx
- Stall torque: 1.8 kgf·cm.
- Operating speed: 0.1 s/60 degree.
- Operating voltage: 4.8 V (~5V)
- Working Torque: 2kg/Cm Reaction Speed: 0.11 Seconds / 60 Degrees (4.8v)
- Operating Temperature: 0 -55 The Deadband Setting: 5 Microseconds Plug Type: Jr, Futaba General Rotation Angle: 180 Degrees
- Servo: Analog Servo Operating Voltage: 4.8v Structural Material: Copper Metal Teeth, Coreless Motor, Double Ball Bearing
SKU: n/a -
Motors & Drivers, Servo Motor

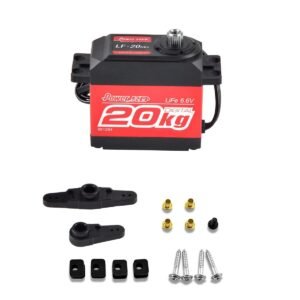

Power HD LF20MG Servo – 20Kg-cm (277.75 oz-in), 0.16sec – High Voltage
- Supply voltage: from 4.8 V to 6.6 V
- Range of motion: from 0°to 180°
- Type: digital
- Servo has aluminum cogs and ball bearings
- Control signal: up to 1520 μs / 333 Hz
- Dimensions:40,7 x 20,5 x 39,5mm
- Weight: 60 g
- Parameters for 4.8 V:
- Torque: 16.5 kg*cm (1,61 Nm)
- Speed: 0,18 sec/60°
- Parameters for 6.6 V:
- Torque: 20.0 kg*cm (1.96 Nm)
- Speed: 0.16 s/60°
SKU: n/a -
Servo Motor

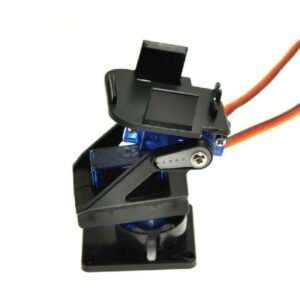

Sg90 Servo Mounting Bracket
- -Perfect fit for SG90 servos
- -With extension holes for sensors can install a Bracket for sensors
- -Material: Nylon
- -2 Axis servo bracket
- -You need to assemble the parts by yourself
- -Pan / Tilt PT camera platform mount anti-vibration camera for FPV aircraft
- -Dual axis platform 20g suitable for 9g servos. 12g precision and great appearance no shaking with a servo wire clamp.
- -or horizontal direction I recommend MD260 260-degrees metal digital servo wide angle to see more for the perpendicular direction you can use ordinary ES08A plastic servo control chip.
SKU: n/a -
Motors & Drivers, Servo Motor
Tower Pro MG-945 Digital High-Speed Servo
- Weight: 55g
- Dimensions: 40.7 x 19.7 x 42.9 mm
- Torque: 10kg/cm (4.8V), 12kg/cm (6.6V)
- Operating Voltage: 4.8V – 6.6V
- Speed: 0.23 sec/60°
- Temperature Range: 0°C to 55°C
- Material: High-strength metal gears
- Connector Type: “S” type (compatible with Futaba, JR, Hitec, GWS, and more)
- Idle Current Draw: 10mA
- No-load Current Draw: 170mA
- Stalled Current Draw: 1200mA
- Wire Length: 32cm
- Dead Bandwidth: 1 microsecond
SKU: n/a -
Motors & Drivers, Servo Motor

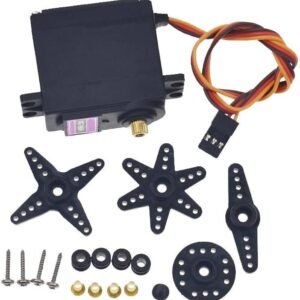

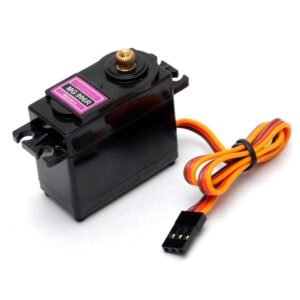

Tower Pro MG996R Metal Gear High Torque Servo Motor 180 & 360 Deg
- The operating Voltage is +5V typically
- Current: 2.5A (6V)
- Stall Torque: 9.4 kg/cm (at 4.8V)
- Maximum Stall Torque: 11 kg/cm (6V)
- Operating speed is 0.17 s/60
- Gear Type: Metal
- Rotation : 0-180 or 0 to 360
- Weight of motor: 55gm
- Package includes gear horns and screws
SKU: n/a -
Servo Motor

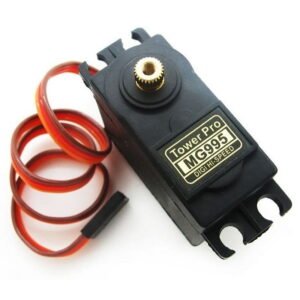

TowerPro MG995 Plastic Gear Servo Motor
MG995 MG-995 Metal Gear Servo Motor Tower Pro-360 Degree comes complete with 30cm wire and 3 pins S type female header connector that fits most receivers, including Futaba, JR, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum, and Hitec. This high-speed standard servo can rotate approximately 360 degrees (60 in each direction). You can use any servo code, hardware, or library to control these servos, so its great for beginners who want to make stuff move without building a motor controller with feedback & gearbox, especially since it will fit in small places. The MG995 Metal Gear Servo also comes with a selection of arms and hardware to get you set up nice and fast.
SKU: MOT489 -
