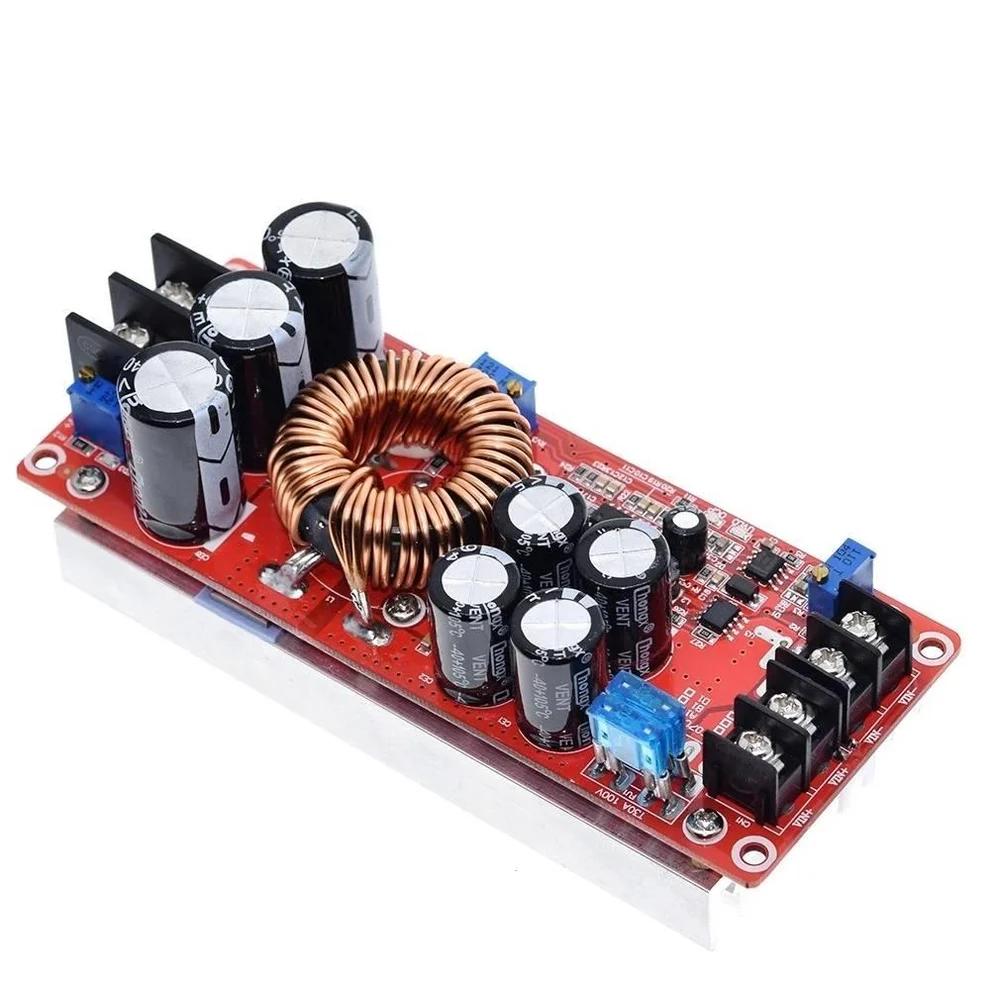

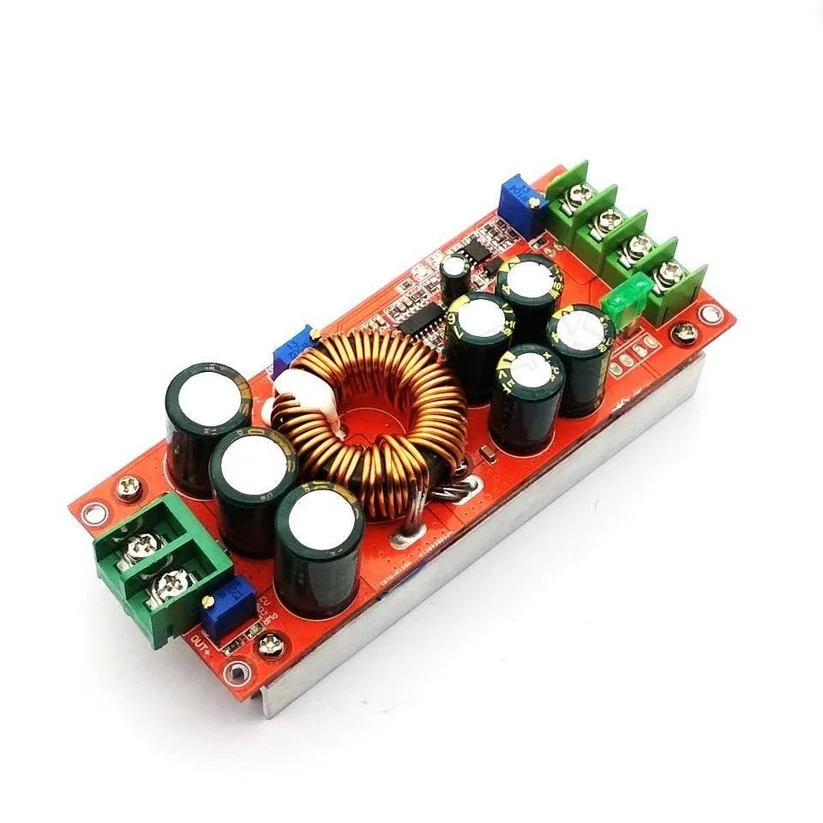

1200W step up 20A Adjustable DC-DC Boost Converter Module 10-60V to 12-83V
The 1200W 20A DC-DC Boost Converter is an adjustable step-up power module designed to convert lower DC input voltages into higher output voltages. It supports a 10V–60V DC input and an adjustable 12V–83V output, making it suitable for LED lighting, solar projects, custom power supplies, and other electronics applications. The module features voltage and current adjustment controls and a heatsink to help manage operating temperatures.
1200W 20A DC-DC Boost Converter Module
The 1200W 20A DC-DC Boost Converter is designed for applications that require an adjustable DC voltage higher than the available input voltage. Its step-up conversion design makes it useful for electronics projects, custom power systems, and a variety of DC-powered applications.
Key Features
- Wide input voltage range: Accepts DC input voltages from 10V to 60V.
- Adjustable output voltage: Provides an output range of approximately 12V to 83V.
- Voltage and current control: Onboard adjustment controls allow users to configure the output for their application.
- High-power design: Advertised as a 1200W-rated module, with actual power capability depending on operating conditions.
- Heatsink included on applicable versions: Helps dissipate heat generated during voltage conversion.
- Non-isolated design: Input and output do not have electrical isolation.
- Convenient connections: Power terminals allow connection to a suitable DC source and compatible load.
- Compact installation: Mounting points support installation in suitable electronic enclosures.
Applications
This boost converter module is suitable for:
- DC power supply projects
- High-power LED lighting
- Solar power applications
- Compatible battery charging systems
- Automotive electronics projects
- Voltage boosting for electronic equipment
- DIY electronics and laboratory projects
- Custom DC power systems
Operating Guidelines
Before connecting a load, adjust and measure the output voltage using a multimeter. Ensure the selected voltage is compatible with your equipment.
Use appropriately rated cables, connectors, fuses, and cooling. Additional forced-air cooling may be needed under heavier loads.
This module only steps voltage up; it cannot reduce the input voltage. It is also not electrically isolated, so suitable electrical safety precautions are necessary.
The maximum usable output current and power depend on the input voltage, output voltage, conversion losses, and thermal conditions. The advertised 1200W rating should not be assumed to represent continuous output at every voltage.
Package Contents
1 × 1200W 20A DC-DC Boost Converter Module
Please confirm the supplied version includes a heatsink before listing it as a package accessory.
Highlights
- 1200W-rated DC-DC boost converter
- 10V–60V DC input voltage
- Adjustable 12V–83V DC output
- Up to 20A input current rating
- Adjustable voltage and current controls
- Heatsink for heat dissipation
- Non-isolated step-up conversion
- Suitable for LED and solar power projects
- Ideal for custom DC power supplies
- Designed for electronics and DIY applications
1 × 1200W 20A DC-DC Boost Converter Module
