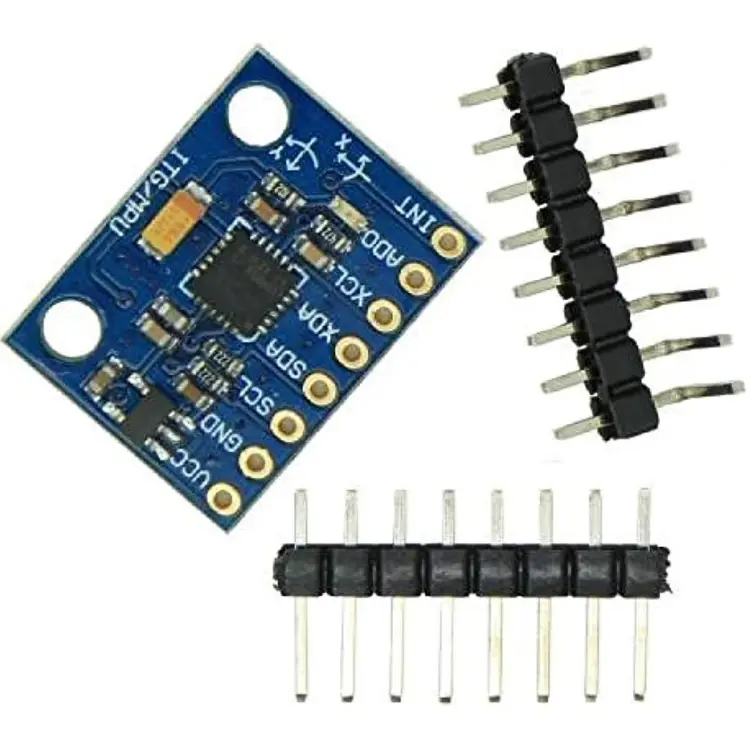

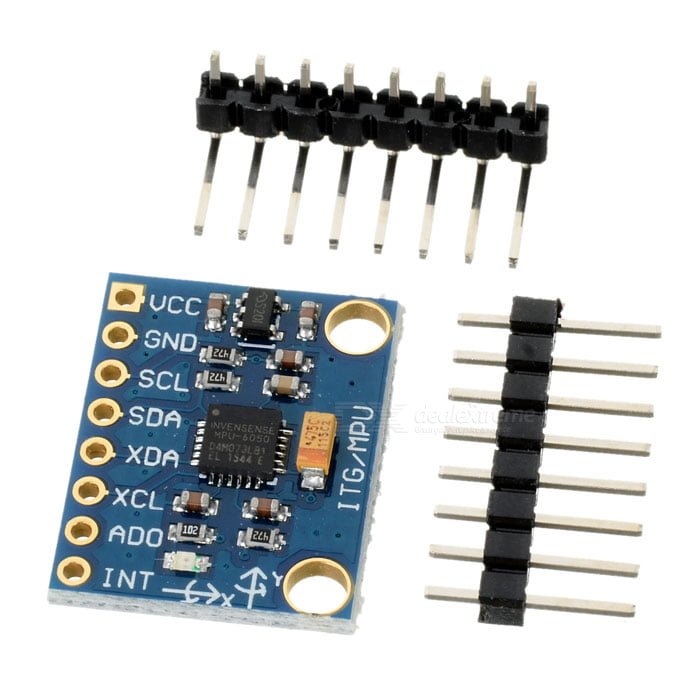

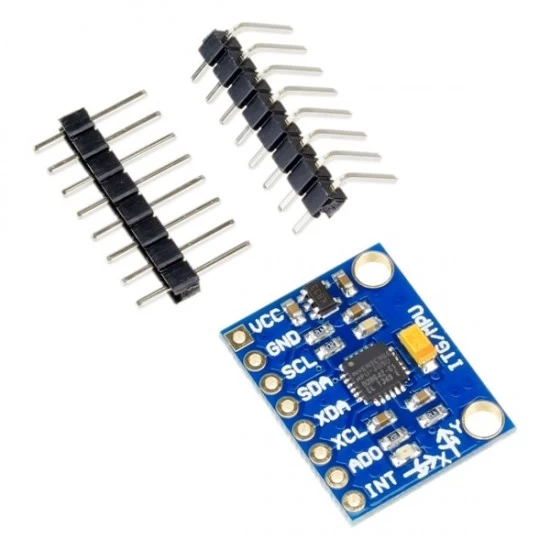

GY521 MPU6050 Module 6DOF
- Chip: MPU-6050
- Power supply: 3v-5V
- Gyroscope range: + 250 500 1000 2000/ s
- Acceleration range: 2 4 8 16 g
- Communication: Standard IIC communication agreement
- Chip built-in 16 bit AD converter, 16 bits of data output
- Pin Pitch 2.54 mm
- SIZE: 20.3mm x 15.6mm
₨ 399 ₨ 572
GY-521 MPU6050 6DOF Module Price in Pakistan
The GY-521 combines an MPU6050 three-axis accelerometer and three-axis gyroscope on one breakout board. Together they provide six degrees of freedom for motion, orientation and balancing experiments, with digital data transferred to a controller through I2C.
Key specifications
- Sensor: MPU6050
- Three-axis accelerometer and three-axis gyroscope
- Selectable accelerometer ranges: ±2g, ±4g, ±8g and ±16g
- Selectable gyroscope ranges: ±250, ±500, ±1000 and ±2000 degrees per second
- 16-bit conversion for motion channels
- I2C communication
- Listed module supply range: 3V to 5V
- 2.54mm pin pitch
- Approximate board size: 20.3 × 15.6mm
Common applications
- Balancing robots
- Motion and gesture experiments
- Orientation and tilt estimation
- RC, robotics and stabilisation prototypes
Setup and calibration
Confirm the supplied module address and controller voltage before wiring. Keep the board still during startup calibration, record accelerometer and gyroscope offsets, and mount it securely because vibration and temperature can affect readings.
For controller testing, see the Arduino UNO R3 with cable. Explore more gyroscope and IMU sensors from Robonation Pakistan.
For device information, review the official TDK MPU-6050 documentation.
