HCSR04 ultrasonic sensor Bracket
- Blue acrylic right-angle bracket for compatible HC-SR04 ultrasonic sensor modules
- Approximately 3 mm panel thickness
- Openings for the two ultrasonic transducers
- Base mounting points for robots and compatible servo assemblies
- Bracket listing only; confirm whether the sensor and fasteners are included
₨ 69 ₨ 187
HC-SR04 Sensor Bracket Price in Pakistan

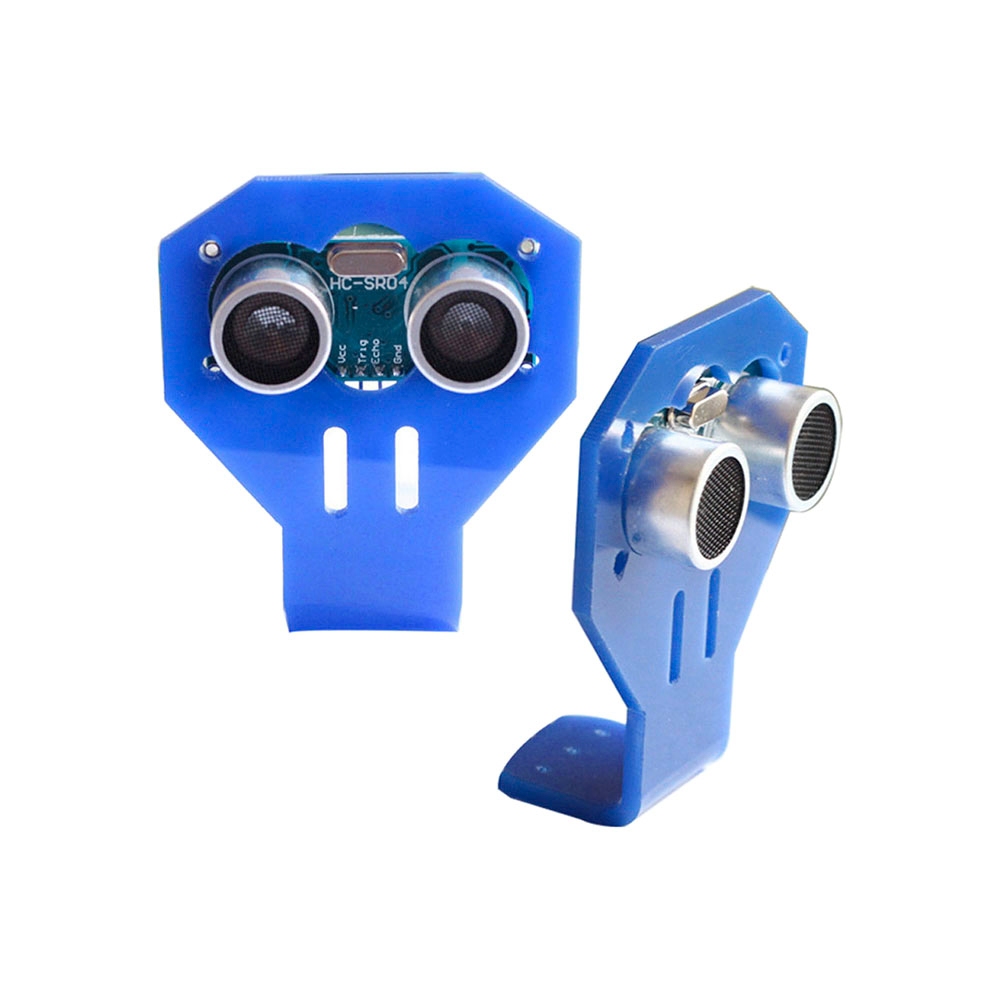

The HC-SR04 ultrasonic sensor bracket is a blue acrylic right-angle holder for mounting a compatible distance sensor on robots, servo scanning assemblies and fixed measurement projects. It helps hold the transmitter and receiver in a stable position while providing base mounting points.
When comparing an HC-SR04 sensor bracket price in Pakistan, confirm the sensor board dimensions, transducer spacing and mounting-hole layout because compatible-looking modules can vary. This listing should be treated as the bracket only unless the current package explicitly includes a sensor or fasteners.
Compatibility and assembly
- Designed for HC-SR04-style ultrasonic sensor modules
- Approximately 3 mm acrylic panel thickness
- Right-angle format for fixed or moving robot installations
- Suitable for compatible servo scanning arrangements
Remove any protective film before assembly, align the transducer openings, and tighten fasteners gently to avoid cracking the acrylic. Keep both ultrasonic transducers unobstructed during use.
Browse more distance sensors and mounting accessories at Robonation Pakistan.
Frequently Asked Questions
Does this product include the HC-SR04 sensor?
This listing is for the acrylic mounting bracket. Confirm separately whether an ultrasonic sensor or screws are included.
What material is the bracket made from?
The listed bracket is made from blue acrylic and is designed for a right-angle HC-SR04 mounting position.
How should the acrylic bracket be assembled?
Remove any protective film, align the sensor openings and tighten fasteners gently to avoid cracking or stressing the acrylic.
Will the bracket fit every ultrasonic sensor module?
No. It is intended for HC-SR04-style modules, but board size and hole spacing can vary. Compare the supplied sensor dimensions before assembly.
Can the bracket be mounted on a servo?
It can be used in a compatible servo scanning assembly when the base holes, fasteners and servo horn arrangement match the project.
Based on 0 reviews
Be the first to review “HCSR04 ultrasonic sensor Bracket”
