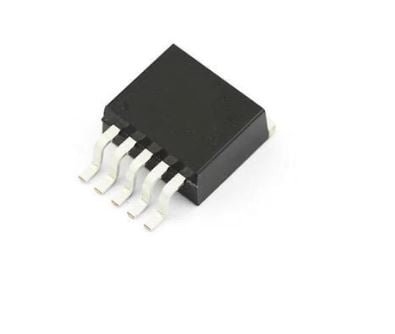

The BTS is a fully integrated high current half bridge for motor drive applications. It is part of the NovalithICTM family containing one p-channel high-side MOSFET and one n-channel low-side MOSFET with an integrated driver ICIC BTS 7960 in one package. Due to the p-channel high side switch, the need for a charge pump is eliminated thus minimizing EMI. Interfacing to a microcontroller is made easy by the integrated driver IC which features logic level inputs, diagnosis with current sense, slew rate adjustment, dead time generation, and protection against overtemperature, overvoltage, Undervoltage, overcurrent, and short circuit. The BTS 7960 provides a cost-optimized solution for protected high current PWM motor drives with very low board space consumption.
