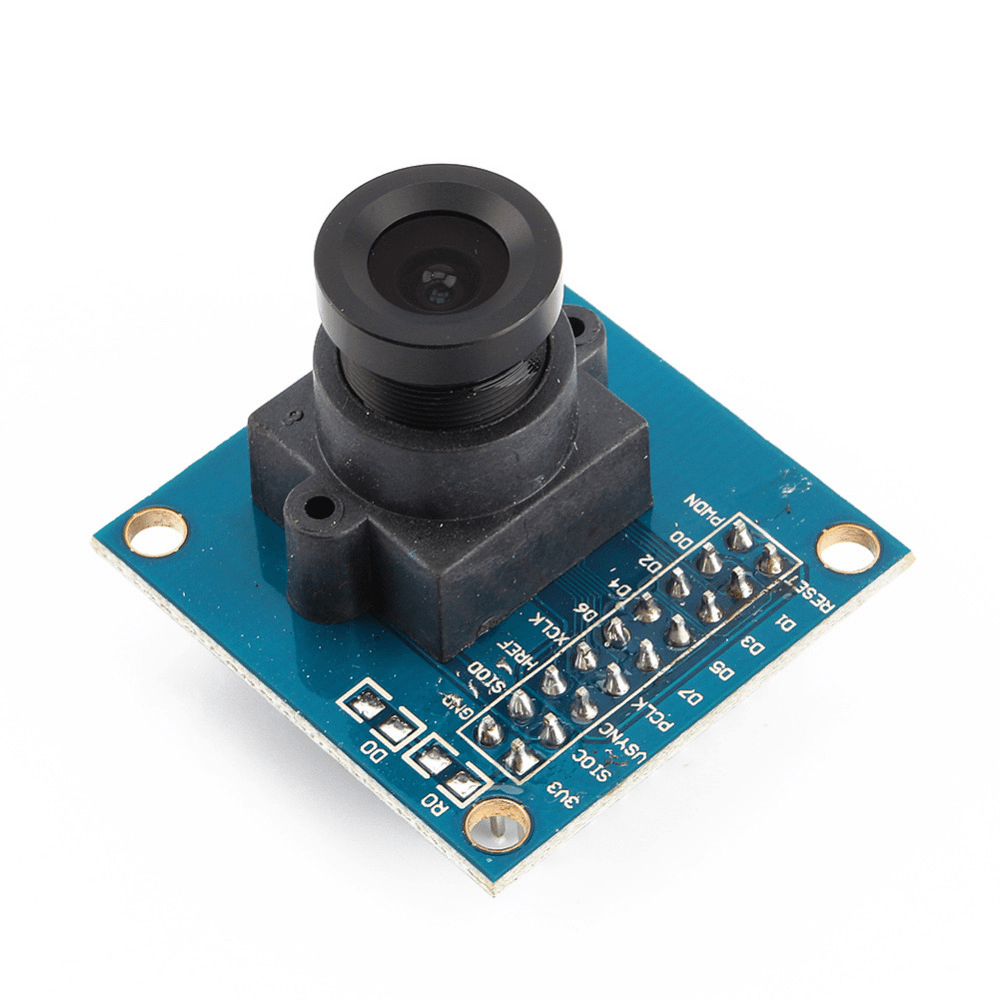

OV7670 Camera Module

OV7670 Camera Module

Availability:

Out of stock

High sensitivity suitable for illumination applications, embedded applications. This module comes with standard SCCB interface compatible with I2C interface.

₨ 720 ₨ 936

Out of stock

Description

OV7670 Module refers to the low-cost digital output CMOS camera from Micro-Snow Electronics.
Its camera includes a 300,000 pixel CMOS image sensor, 3.6mm focal length lens and lens mount, and various power supplies required for on-board CMOS chips.
The board also pulls out the control pins and data pins for easy operation and use.
Pin definition:
3V3: Input power supply voltage (3.3, 5V is recommended, but not recommended)
GDN: Grounding point
SIO_C SCCB: Control clock of the interface (Note: some low-level microcontrollers require pull-up control, similar to the I2C interface)
SIO_D SCCB: serial data input (output) of the interface (Note: some low-level microcontrollers require pull-up control, similar to the I2C interface)
VSYNC: frame sync signal (output signal) HREF line sync signal (output signal)
PCLK: pixel clock (output signal)
XCLCK: clock signal (input signal)
D0-D7: Data port (output signal)
RESTE: Reset port (normal use pull high)
PWDN: Power selection mode (normal use pull low)
