Sensor Cable – Electrode Pads
Out of stock

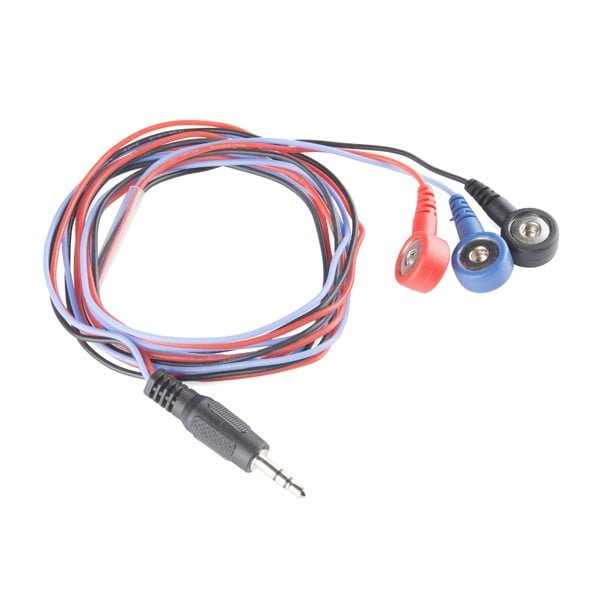

Three-conductor electrode-pad cable, approximately 24 inches long, with a 3.5 mm plug and red, blue and black snap-style connectors for compatible low-voltage educational sensor modules. Confirm the exact plug pinout and pad compatibility before use. Not a medical-grade patient cable.
₨ 1,352
Out of stock
ECG electrode cable Price in Pakistan
This three-conductor electrode-pad cable connects compatible snap-style sensor pads to modules that use a 3.5 mm lead connector. The colour-coded leads make it practical for AD8232-style ECG learning kits, biopotential experiments and replacement-cable requirements.
When comparing an ECG electrode cable price in Pakistan, confirm the 3.5 mm plug wiring, snap size, cable length and compatibility with your exact board and pads. The cable is an accessory and does not condition or isolate the signal by itself. Use it only in low-voltage educational setups; it is not a medical-grade patient cable and is not intended for diagnosis or clinical monitoring.
Sensor Cable Electrode Pads (3 connector)

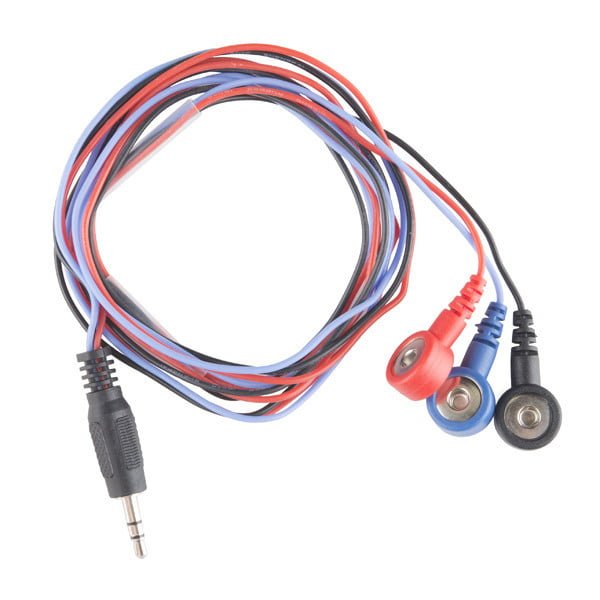

Description: This is your simple three conductor sensor cable with electrode pad leads. These cables are 24″ long and feature a 3.5mm audio jack connector on one end with snap style receptacles for biomedical sensor pads. Each cable comes in a red/blue/black set.
Browse more ECG modules, leads and sensor pads at Robonation Pakistan. For setup limits and technical guidance, review the AD8232 application documentation.
Frequently Asked Questions
What connectors are on this electrode-pad cable?
The listed cable has a 3.5 mm plug at one end and three colour-coded snap-style pad connectors at the other.
How long is the sensor cable?
The listed cable length is approximately 24 inches.
Is this a medical-grade patient cable?
No. It is an accessory for compatible low-voltage educational sensor setups and is not intended for clinical use.
Will this cable work with every AD8232 board?
Not necessarily. Confirm that the board uses the same 3.5 mm pinout and that the snap connectors match the selected pads.
Does the cable isolate or condition the sensor signal?
No. It is a passive lead cable and does not provide electrical isolation, amplification or filtering.
