Out of stock
Multi-sensor 10 DOF IMU module for acceleration, rotation, magnetic-field and barometric-pressure measurements in robotics and navigation prototypes. Board revisions may use different sensor IC combinations, so verify the supplied board markings, I2C addresses and library compatibility before setup.
₨ 1,924
Out of stock

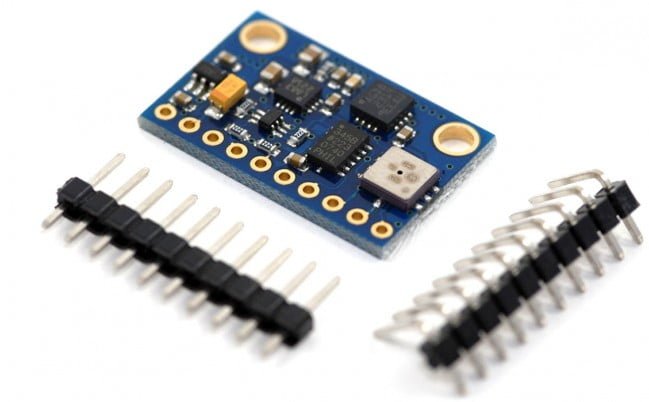

The 10 DOF IMU sensor is a compact multi-sensor board for robotics, orientation, navigation and motion-tracking prototypes. It combines three-axis motion sensing, magnetic-field measurement and barometric-pressure data in one module, reducing the number of separate boards required in a project.
If you are comparing a 10 DOF IMU sensor price in Pakistan, also check the exact board revision, sensor markings, I2C addresses, operating voltage and library support. Different 10-DOF modules can use different IC combinations, so verify the received board before choosing code or a wiring diagram.
Features:
For I2C testing, connect the verified board revision to an Arduino UNO R3 and confirm every sensor address before loading a combined library example.
Browse more IMU and motion sensors at Robonation Pakistan. For setup limits and technical guidance, review the Arduino I2C guide.
It combines three-axis acceleration, three-axis rotation, three-axis magnetic-field sensing and barometric-pressure measurement for orientation and motion projects.
Yes, it can be used with Arduino-compatible boards through I2C, provided the operating voltage, I2C addresses and libraries match the supplied board revision.
10-DOF modules are sold with different sensor IC combinations. Check the chip markings and I2C addresses on the received board before selecting libraries or wiring guides.
Yes. Accelerometer, gyroscope and magnetometer offsets should be calibrated, and the pressure sensor should be checked against a suitable reference for the intended project.
They normally share the I2C bus when their addresses do not conflict. Verify the actual chips and addresses on the supplied board revision before programming.
