Adapters/Power Supply Modules
Showing 1–24 of 29 results
-
Adapters/Power Supply Modules, Clearance Sale
12V 2A Power Adapter
- It is a convenient power supply for your devices.
- It is built-in overvoltage, over current and short circuit protection.
- It has a wide voltage function; it conforms to the safety standards.
- Its Pulse Width Modulation design ensures the stability and efficiency of the power supply.
- It has a constant and stable voltage output.
- It provides stable power to your devices.
SKU: n/a -
-
Adapters/Power Supply Modules
1500W 30A CONVERTER STEP UP POWER SUPPLY MODULE
When using the boost power supply should pay attention to the following points:
1. the output polarity cannot be reversed or short circuit.
2. when using batteries as the input source, you must lower the battery protection, otherwise it will damage the battery and power supply
3. Input power supply voltage must be above 10V.
4. When the power supply is used for the input power supply, the input power and the output voltage of the input power supply are the first to be unloaded. Then pick up the load. (must ensure that the switching power supply has been working).
5. When the constant current mode is used to set the voltage, the constant voltage must be higher than the input voltage.Do not use the way of short circuit output current,the circuit structure of the boost module can not be adjusted in short circuit way.
6. If the input voltage fluctuation range is lower than the set output voltage,then the output voltage is constant, it is to ensure that input is lower than the output voltage.
SKU: n/a -
Adapters/Power Supply Modules
150w Dc To Dc Boost Converter 10 32v To 12 35v 6a Step Up Power Supply Module
Adapters/Power Supply Modules150w Dc To Dc Boost Converter 10 32v To 12 35v 6a Step Up Power Supply Module
- Input Voltage: 10v – 32v DC
- Output Voltage: 12v – 35v DC
- Output Current: 6A MAX
- Input Current: 10A (MAX)
- Output Ripple: 2% MAX
- Working Temperature: Industrial – 40C to +85C (Environmental temperature, more than 40C, reduce load wattage or enhance cooling)
- Full-Load temperature: 45 degrees.
- No-load current: 25mA typical.
- Voltage regulation: ± 0.5%.
- Load regulation: ± 0.5%.
- Dynamic response speed: 200uS 5%.
- Short circuit protection: None (Please Install fuses and protection circuits at the Input port.)
- Input Reverse Polarity Protection: None (Please Series diode at the input port.)
- Size: 2.60 in (L), 1.85 in (W) , 1.1 in (H)
- Weight: 2.30 oz (66 g)
SKU: n/a -
Adapters/Power Supply Modules
24v 2A Adapter Power Adapter 24V 2000mA
- 100% Brand New
- Input Voltage: 100~240V AC 50-60HZ
- Output Voltage: DC 24V(constant voltage)
- Output Current: Max 2A
- Output Wattage: Max 48W
- DC plug connector size: 5.5mmx2.5mm; compatible Polarity internal: internal +, outside –
- Safety Compliance: FCC/CE/RoHS/CCC
- Working temperature: -20~60
- AC input power cable length: 47.2in / 120cm
- DC output power cable length: 36.2in / 92cm
- Adapter body size: 4.9in(L) x 2.0in(W) x 1.2in (H)
SKU: n/a -
Adapters/Power Supply Modules

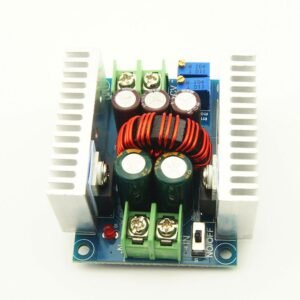

300W 20A Step Down Converter Voltage Buck Module
- Color: multicolor
- Material: electronic component
- Item size: approx.60*50*30MM
- Input Voltage: 6V to 40V DC(10V to 40V is suggested)
- Output Voltage: 1.2V to 36V DC
- Output Current: 20A(max.), 15A(suggested)
- Efficiency: 95%(24V to 12V, 20A)
- Output Ripple: 50mV
- Wiring Method: Terminal
- Short Circuit Protecting: Self-recovery(cannot short circuit for long time)
- Size: approx. 60 x 53 x 27mm / 2.36 x 2.08 x 1.06′
- VO+: Output positive
- VO-: Output negative
- +IN: Input positive
- -IN: Input negative
- CV: Output voltage adjustment
- CC: Output current adjustment
- EN: Enable, low voltage level shut off output; suspension, high voltage level is effective
- When input and output is common grounded, no-load CV output constant voltage, CC output constant current.
SKU: n/a -
Adapters/Power Supply Modules, Mega Payday Sale
5A XL4015 DC To DC Buck Converter Blue
- 100% New and High-Quality 5A (5,000mA) 4-38V DC-DC Adjustable Step-Down Module
- Original XL4015 IC Power Supply Suitable for LED Strips, LED Matrix, and Other Circuits
- Wide Input Voltage 4V DC to 38V DC, Adjustable Output Voltage 1.25V DC to 36V DC
- Module Size: 54mm x 24mm x 15mm (l x w x h) Weight: 30 grams only with heat sink
SKU: n/a -
Adapters/Power Supply Modules, Mega Payday Sale
5A XL4015 Module Adjustable Step Down Buck Converter
- Module nature: non-isolated step-down module
- Rectification: Non-synchronous rectification
- Input voltage: 5V-32V
- Output voltage: 0.8V-30V
- Output current: adjustable Z large 5A
- Conversion efficiency: 95% (Z high)
- Switching frequency: 300KHz
- Output ripple: 50mV (Z large) 20M bandwidth
- Load regulation: 0.5% Voltage regulation: 2.5%
- Operating temperature: -40 C to + 85 C
SKU: n/a -
-
Adapters/Power Supply Modules
5V 6A 6000mAh Adapter With Power Cord
- Input: 100 – 240V AC 50/60Hz
- Output: DC 5V 6A
- Max Wattage: 30W
- DC Jack Converter: 5.5 x 2.5mm (Compatible with 5.5×2.1mm DC Port)
- DC Cable Length: about 110cm
- AC Power Cord: about 110cm with US Plug
- Pole of DC Plug: Center Positive(+), Outside Negative (-)
- Condition: Brand New 100%
SKU: n/a -
Adapters/Power Supply Modules
9V 1.5A Adapter Power Adapter 9V 1500mA
- Input: 100 – 240 V AC;
- Output: DC 9V, 1500mA;
- Safety features: high efficiency and reliability;
- Low interference and noise;
- Our products are CE / FCC / RoHS, tested by the manufacturer to meet and / or exceed OEM specifications
- Compatible with led Lamps
SKU: n/a -
Adapters/Power Supply Modules, Clearance Sale, Mega Payday Sale
High Quality 12V 6A AC-DC Switching Power Supply Module Heavy Duty
Adapters/Power Supply Modules, Clearance Sale, Mega Payday SaleHigh Quality 12V 6A AC-DC Switching Power Supply Module Heavy Duty
- Item Type: Switching Power Supply Module
- Material: Synthetic cardboard
- Usage: Used for AC to DC power module
- Power Supply Model: WX -DC2407p
- AC Input: AC100-240V
- Universal AC Frequency: 50HZ/60HZ
- Output Voltage: DC12V
- Output Current: 5-6.5A (without any voltage drop)
- Output Power: 180W (maximum 220W)
- Positioning Hole Size: Approx. 10.58 x 5.57cm / 4.2 x 2.2in
SKU: n/a -
Adapters/Power Supply Modules
High Quality Power Supply Adapter 5V DC 2Amp
- Simple to use, just plug-in, charge up and play.
- Short circuit, over-voltage and over-current protection.
- Incredibly low fault rates this power supply is a regulated center positive power supply.
- High quality graded AC to DC power adapter.
- Light in weight and with heavy-duty cable-wire.
- Compatible with Dth, STB, CCTV, toys, broadband, laptop, DVD, tablet, TV tuner card, cordless phones, LCD monitor, scanner, cell phone, printers
SKU: n/a -
Adapters/Power Supply Modules
IMAX B6 LIPO Charger With Adapter
- Input Voltage: 11-18v
- Circuit power: Max Charge: 80W / Max Discharge: 5W
- Charge Current Range: 0.1-5.0A
- Discharge current range: 0.1-1.0A
- Ni-MH/NiCd cells: 1-15
- Li-ion/Poly cells: 1-6
- Pb battery voltage: 2-20v
- Dimensions: 103x83x30mm
- Weight: 450 grams
SKU: n/a -
Adapters/Power Supply Modules, Batteries & Chargers
Lithium Battery 12V 2.2 Amp 2200mah With BMS
- A 12V and 2.2A rating battery with a Battery Management system to have balanced charging and discharging through every cell of the battery.
- It’s a universal/multipurpose battery also used as WIFI routers, Power Bank, ETC.
- You can also customize lithium batteries as per your requirements.
SKU: n/a -
Adapters/Power Supply Modules
LM2596 Dual USB Module DC 6V 40V To 5V 3A
LM2596 Dual USB Module Specifications:
- Input: 6V-40V
- Output: 5V / 3A (MAX)
- Efficiency: 92% (MAX)
- Switching frequency: 150KHZ
- Working temperature: -40 + 85
- Baby Size: L: 59mm x W: 21mm x H: 17mm
- Load capacity: Maximum output 3A
- Applications: mobile power, mobile phones, USB-powered devices.
- Output Port: Double USB
SKU: n/a -
Adapters/Power Supply Modules

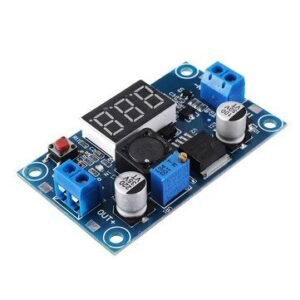

LM2596 Module With Display
- Input voltage range: 4.5V to 40V
- Output voltage range: 1.25V to 37V
- Output current: up to 3A
- Switching frequency: 150 kHz
- Quiescent current: typically 80 µA
- Thermal shutdown and current limiting
- Digital display: 1602A LCD display
- Display accuracy: 0.1 V
- Dimensions: 62 x 26 x 14mm
SKU: n/a -
-
Adapters/Power Supply Modules, Electrical Equipment
Meanwell Switching Power Supply 24V-5A
- DC-output: 24V, DC, adjustable via potentiometer, range 20V – 28V
- DC-current continuous max.: 5A
- Max. power : 120W
- Required min-load: 0A
- Ripple max.: 150mVpp
- Efficiency: typical 87%
- Working temperature: -20 to +70°C
- AC-input range: 88 – 264V AC or 124 – 370V DC
- Connector: screw-terminal, M4
- Weight: 0.5kg measure
- Dimensions LxWxH: mm
SKU: n/a -
