Motor Drivers
Showing all 8 results
-
Motor Drivers, Motor Drivers, Motors & Drivers, Robotics
A4988 Stepper driver
- Supply Voltage : 8-35 VDC.
- Current : 1.0A (no heatsink ).
- Current : 2.0A (with heat-sinking).
- logic input : 3 – 5.5V .
- Automatic current decay mode detection/choice.
- Mixed with slow current decay mode.
- The low power dissipation of synchronous rectifier.
- Internal UVLO(ultra voltage lockout).
- Crossover current protection.
- Thermal shutdown circuit.
- Ground fault protection.
- Loading and short circuit protection.
- The optional five-step mode: full, 1/2, 1/4, 1/8 and 1/16.
SKU: n/a -
Motor Drivers, Motor Drivers, Motors & Drivers, Robotics
BTS 7960 Motor Driver 43A
- Double BTS7960 large current (43 A) H bridge driver;
- 5V isolate with MCU, and effectively protect MCU;
- 5V power indicator on board;
- voltage indication of motor driver output end;
- can solder heat sink;
- Just need four lines from MCU to driver module (GND. 5V. PWM1. PWM2);
- isolation chip 5 V power supply (can share with MCU 5 V);
- size: 4 * 5 * 1.2 cm;
SKU: n/a -
Motor Drivers, Motors & Drivers
DRV8825 Stepper Motor Driver with Heat Sink | High-Precision Stepper Control for 3D Printers & CNC
Motor Drivers, Motors & DriversDRV8825 Stepper Motor Driver with Heat Sink | High-Precision Stepper Control for 3D Printers & CNC
- Model: DRV8825
- Supply Voltage: 8.2 – 42 VDC.
- Current Capacity : 2.2A max(24V).
- Continuous current per phase: 1.5 A.
- Minimum Logic voltage: 2.5V.
- Maximum Logic Voltage: 5V.
- Microstep resolutions: full, 1/2, 1/4, 1/8, 1/16, and 1/32.
- Dimensions : 15 x 20 mm.
- Weight: 4 gm.
SKU: n/a -
Motor Drivers, Motor Drivers, Motors & Drivers, Robotics
L298-Mini
1.Module supply voltage: DC 2V-10V
2.Signal input voltage: DC 1.8-7V
3.Single working current: 1.5A
4.Peak current up to 2.5A
5.Low standby current (less than 0.1uA)
6.Built-in common conduction circuit, the input terminal vacant, the motor does not malfunction
7.Size: 24.7 x 21 x 7mm
8.Mounting hole diameter: 2 mmSKU: n/a -
Motor Drivers, Motors & Drivers
MONSTER MOTO SHIELD DUAL VNH2SP30 16V 30A
- Power supply: Max 16V
- Max current rating: 16A
- Practical Continuous Current: 14A
- Current sensing available to Arduino analog pin
- MOSFET on-resistance: 19 m OHM (per leg)
- Maximum PWM frequency: 20kHz
- Thermal Shutdown
- Under-voltage and Over-voltage shutdown.
SKU: n/a -
Motor Drivers, Motors & Drivers
Tb6560 3a Stepper Motor Driver Module Cnc Single Axis Controller Module
Motor Drivers, Motors & DriversTb6560 3a Stepper Motor Driver Module Cnc Single Axis Controller Module
- Low cost and good high-speed torque
- Supply voltage up to +32 VDC
- Output current up to 3.0A
- Pulse frequency up to 20 KHz
- Suitable for 2-phase and 4-phase motors
- Over-voltage and short-circuit protection
- 7 output current choices, max 3200 steps/rev
- Automatic idle-current reduction
- Slim size (96x61x37mm)
SKU: n/a -
Motor Drivers, Motors & Drivers
TB6600 Arduino Stepper Motor Driver 4A, 5A
- This stepper motor driver supports 8 kinds of current control.
- This stepper driver supports 7 kinds of micro-steps adjustable.
- Stepper motor driver interface adopts high-speed optocoupler isolation.
- It has the feature of automatic semi-flow to reduce heat.
- It has a large area heat sink.
- It has anti-high-frequency interference ability.
- It has input anti-reverse protection
- It has the feature of overheating, over-current, and short circuit protection.
SKU: n/a -
Motor Drivers, Motors & Drivers

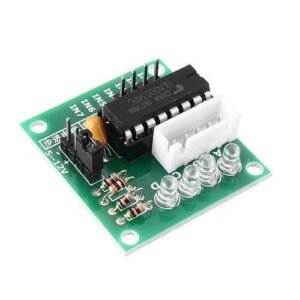

ULN2003 Stepper Driver 5V
This is ULN2003 Driver Module Stepper Motor Driver, small size and easy to use. It uses the ULN2003 driver chip to amplify the control signal from the Arduino. This Ultra Lightweight and cheap option commonly used to run and control the small applications stepper motors.
SKU: n/a
