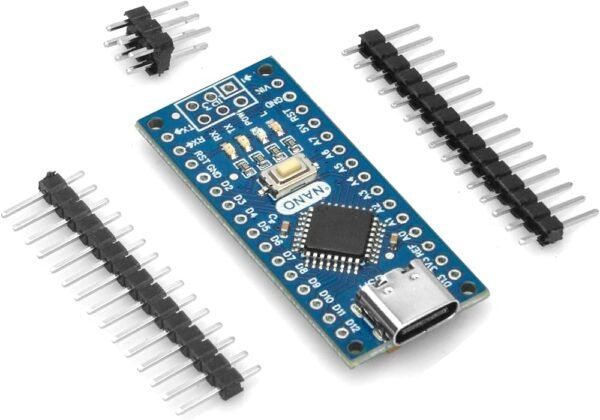

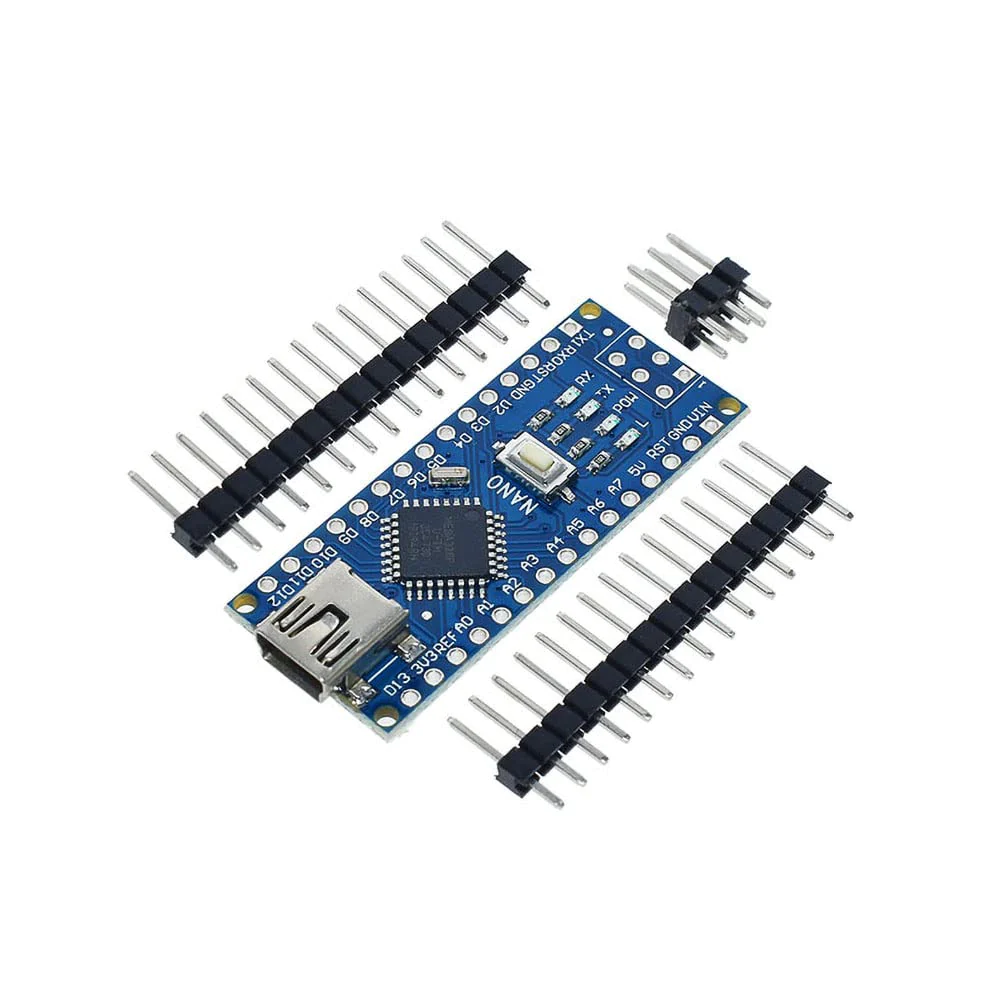

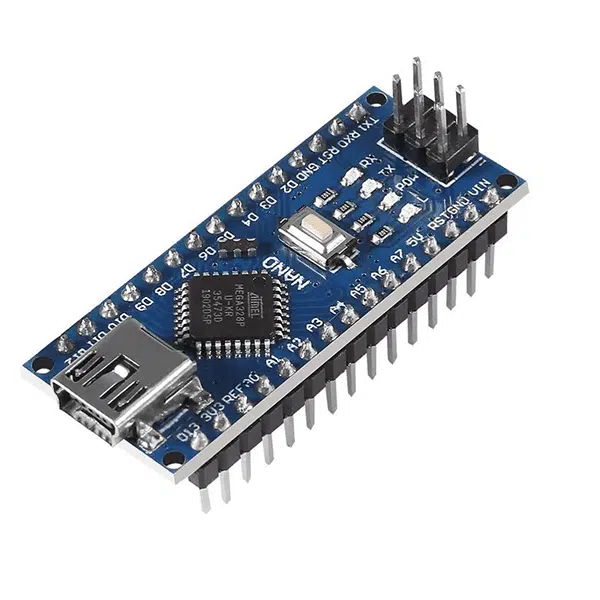

Arduino Nano V3

Arduino Nano V3

Arduino Nano V3 is a microcontroller board which is designed by Arduino. The same microcontroller Atmega328 is used for Arduino NANO Micro-controller and Arduino UNO. We can do a wide range of applications. It is the major microcontroller board because its size is small and it is flexible.

It has the same functionality as Arduino Duemilanove but it has a different pin package. It does not have a DC power jack. If we look at the Arduino Nano schematic, then we know that it works with a mini-B USB cable instead of the standard one.

Feature Of Arduino Nano V3:

• Microcontroller: Atmel ATmega168 or ATmega328.
• Operating Voltage (logic level): l5 V.
• Input Voltage (recommended): 7-12 V.
• Input Voltage (limits): 6-20 V.
• Digital I/O Pins: 14 (of which 6 provide PWM output).
• Analog Input Pins: 8.
• DC Current per I/O Pin: 40 mA.
• Flash Memory: 16 KB (ATmega168) or 32 KB (ATmega328) of which 2 KB is used by the boot loader.
• SRAM : 1 KB (ATmega168) or 2 KB (ATmega328).
• EEPROM : 512 bytes (ATmega168) or 1 KB (ATmega328).
• Clock Speed: 16 MHz.
• Dimensions : 0.73 x 1.70
• Length: 45 mm.
