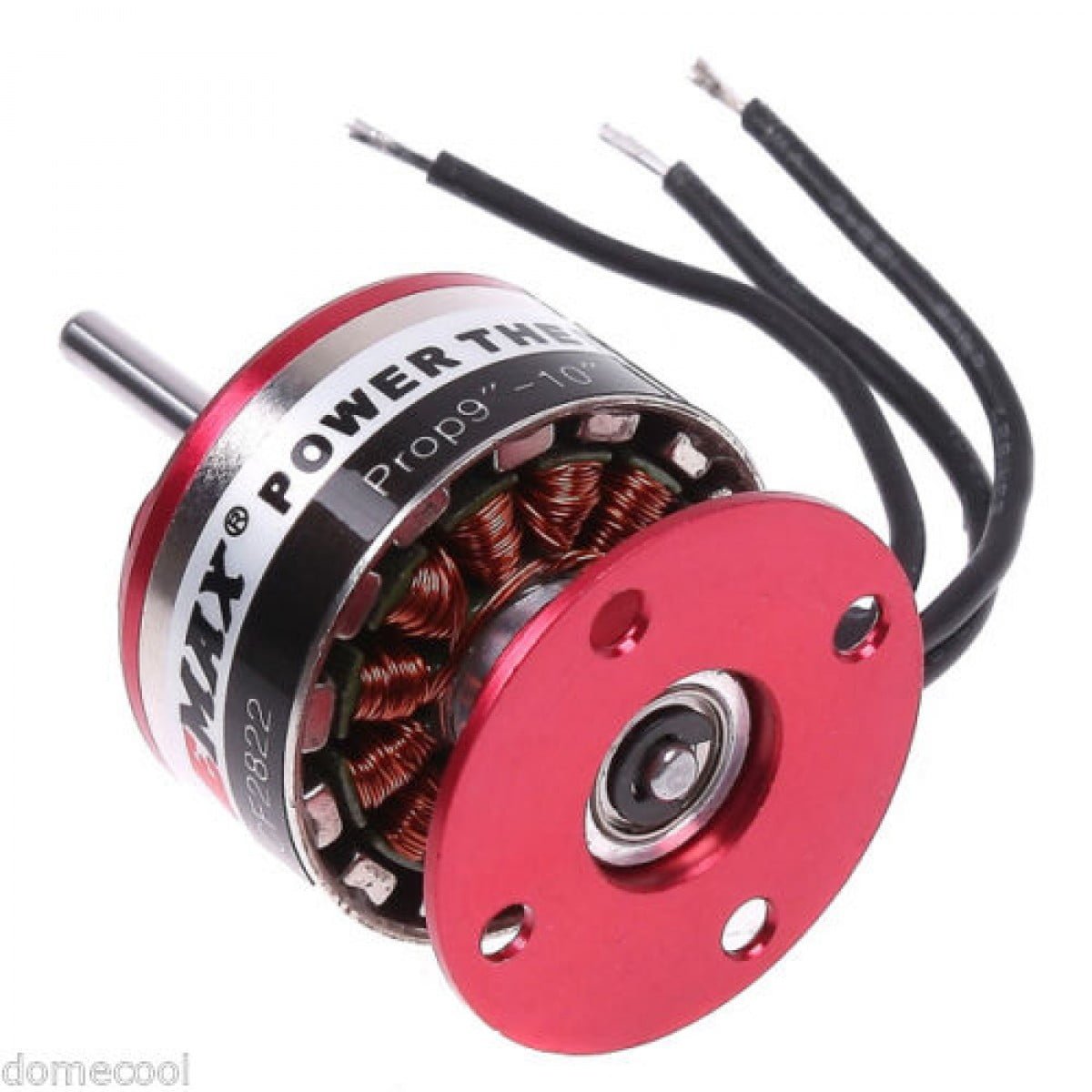

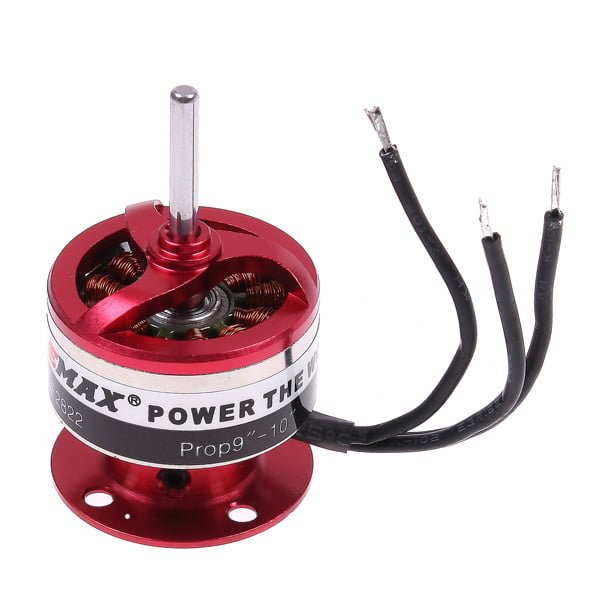

EMAX CF2822 Outrunner Brushless Motor
Availability:
Out of stock
A well made and nicely finished outrunner. Excellent for small foamies and indoor shockflyers.
₨ 1,404
Out of stock
Spec.
Weight: 39g (with wire & sticker etc)
Shaft: 3mm
Motor Length: 46mm
Diameter: 28mm
Stator Size: 22x10mm
Suggested prop: 9~10inch
Voltage: 11.1v (3S)
Kv: 1200RPM/V
Based on 0 reviews
Be the first to review “EMAX CF2822 Outrunner Brushless Motor”
Related products
-
Flight Controller, Multicopter Accesories
APM Power Module
The power module has the ability to provide APM lossless power from a LiPo battery as well as current consumption and voltage measurements through 6-pos cable. The on board regulator switch has the ability of giving outputs 5.3V and a maximum of 2.25A from up to a 4S LiPo battery.
SKU: n/a -
Multicopter Accesories, Others
Power Module for APM 2.8 and quadcopters
Power Module for APM 2.8 and quadcopters is a simple way of providing your APM/Arduflyer with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6P cable. The on-board switching regulator outputs 5.3V and a maximum of 3A from up to a 7S LiPo battery.
Note: The Power Module is only designed to power APM/Arduflyer, a RC receiver and accessories (GPS, Radio telemetry). It is not designed to power servos. Use your aircraft’s own ESC/BEC for that.
SKU: n/a -
BLDC Motor, Motors, Motors & Drivers, Multicopter Accesories
A2212 2200KV Brushless DC Motor BLDC
- Recommended Voltage: 2-12VDC
- Internal Resistance: 90mΩ
- Shaft Size: 3.17mm (1.8″)
- Shaft Length: 11mm
- Motor Diameter: 27.5mm
- Motor Length (Overall): 40mm
- Current Capacity: 12A/60s
- Max Efficiency: 80%
- Max Power: 239W
- Recommended ESC: Minimum Of 18A
- Recommended Model Weight: 300-1000g
- Mounting Holes: M3
- Wire Length: ~70mm
SKU: n/a -
