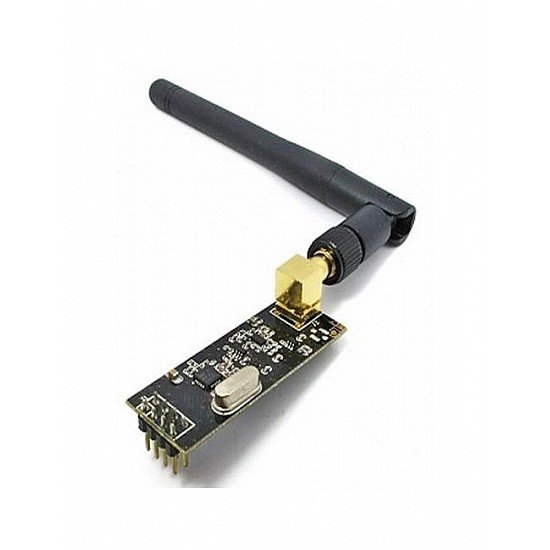

HW-237 2.4GHz NRF24L01+PA+LNA SMA Wireless Transceiver Module with Antenna
- Voltage: 3-3.6V (recommended 3.3V) V.
- Maximum output power: +20dBm.
- Emission mode current(peak): 115mA.
- Receive Mode Current(peak): 45mA.
- Power-down mode current: 4.2uA.
- Sensitivity 2Mbps mode in received: -92dBm.
- Sensitivity 1Mbps mode in received: -95dBm.
- PA gain: 20DbLNA gain: 10Db.
- Sensitivity 250kbps mode in received: -104dBm.
- Operating Range: 1 km
- LNA Noise figure: 2.6 Db.
- Antenna Gain (peak): 2Dbi.
- 2MB rate (Open area): 520m.
- 1MB rate (Open area): 750m.
- 250Kb rate (Open area): 1100m.
- Interface: SPI.
₨ 549 ₨ 1,248

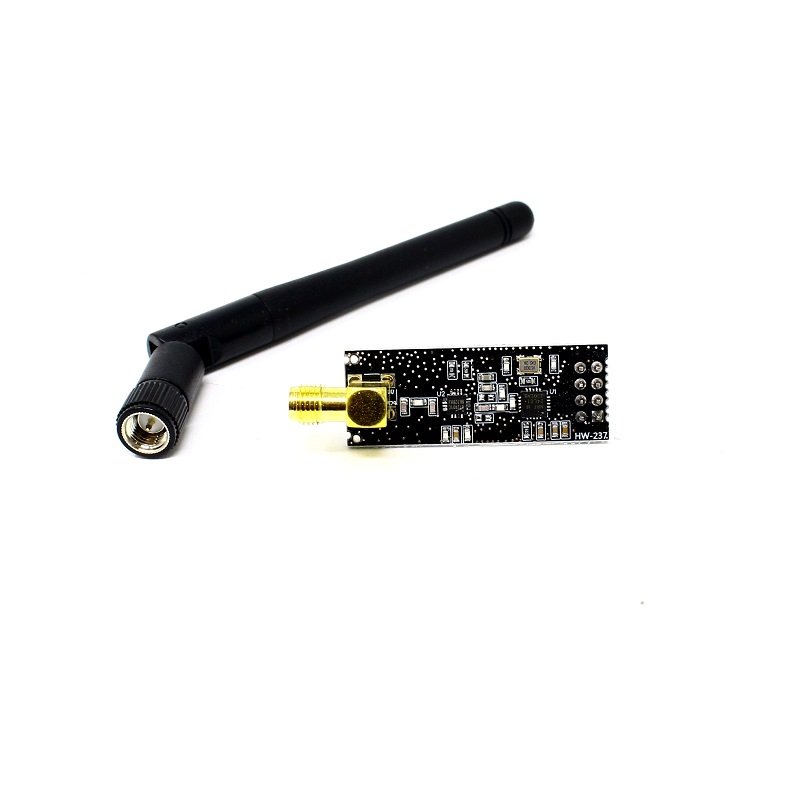

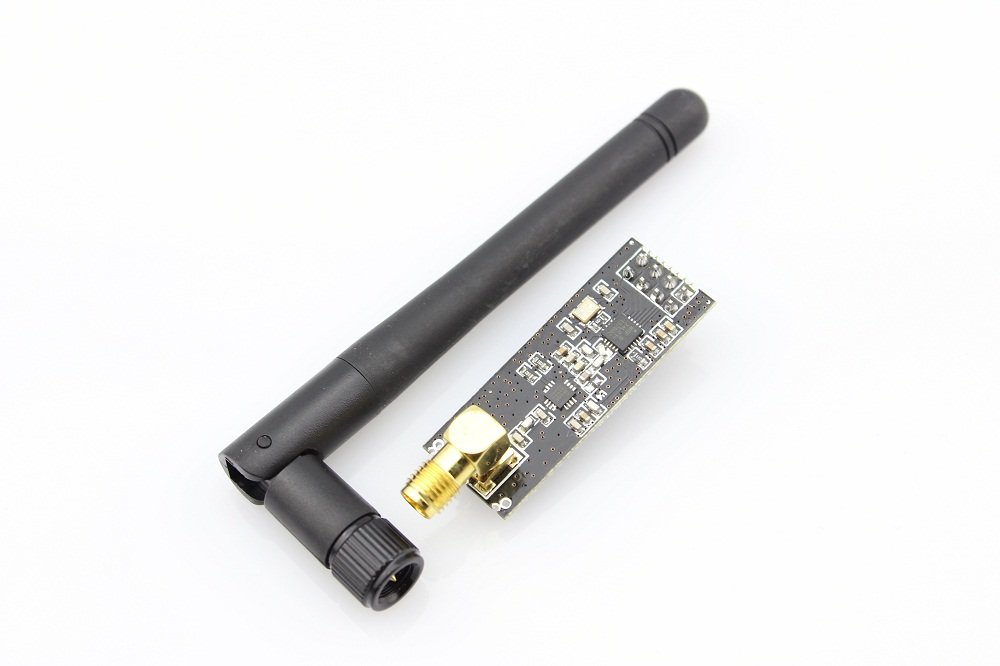

HW-237 2.4GHz NRF24L01+PA+LNA SMA Wireless Transceiver Module with Antenna
This board features a reverse-polarized SMA connector for maximum RF range. It also has PA and LNA circuits. With the external antenna, it can reach a longer distance than the one without these parts.
This module comes with a 2.4G antenna (2DB), with a 250Kbps transmission rate in the open air; it can reach a communication distance of 800-1K meters.
Package Includes :
- 1 x 2.4GHz NRF24L01 Transceiver module.
- 1 x SMA Antenna.
Specifications and Features :
- Voltage: 3-3.6V (recommended 3.3V) V.
- Maximum output power: +20dBm.
- Emission mode current(peak): 115mA.
- Receive Mode Current(peak): 45mA.
- Power-down mode current: 4.2uA.
- Sensitivity 2Mbps mode in received: -92dBm.
- Sensitivity 1Mbps mode in received: -95dBm.
- PA gain: 20DbLNA gain: 10Db.
- Sensitivity 250kbps mode in received: -104dBm.
- Operating Range: 1 km
- LNA Noise figure: 2.6 Db.
- Antenna Gain (peak): 2Dbi.
- 2MB rate (Open area): 520m.
- 1MB rate (Open area): 750m.
- 250Kb rate (Open area): 1100m.
- Interface: SPI.
