Diodes
Showing all 8 results
-
Diodes
1/2W Zener diode 12V 0.5W
Specification of BZX55C12V0 12V 1/2W Zener Diode DO-35
Supply Voltage: BZX55C12V0 12V
Type: Low Power Switching Zener Diode
Package: DO-35
Diode Configuration: Single
Zener Voltage Tolerance: 5%
Package Type: Through Hole
Dissipation Power: 1/2 W
Dimensions: 4.25 x 1.85 x 1.85mm
Operating Temperature: -40°C to 85°CSKU: n/a -
Diodes
10A10 10 AMP 1000V 10A 1KV AXIAL RECTIFIER DIODE
The 10A10 diode is one of the family of popular 10A (ampere) general-purpose silicon diodes commonly used in AC adapters for high power devices. Blocking voltage varies from 1000 to 10,000 volts.
Features
- Low forward voltage drop
- High current capability
- High reliability
- High surge current capability
SKU: n/a -
Diodes
1N4007 1000V 1A General Purpose Rectifier Diode 4007
- Maximum Recurrent Peak Reverse Voltage 1000V
- Maximum Average Forward Output Current 1A
- Maximum Forward Voltage Drop per element at 1.0A DC 1.1V
- Typical Junction Capacitance 15pF
- Package DO-41
- Weight 0.33grams
- Operating and Storage Temperature Range (65 to +175C)
SKU: n/a -
Diodes, LED Lights & Bulbs
3mm Frosted LEDs
3mm Frosted LEDs bright 3mm LEDs are incredibly bright with a wide beam angle. They’re suitable for use in your projects, illuminations, car lighting, models or anywhere where you need low power, high-intensity reliable lighting or indication. They fit easily into a breadboard and will add that extra zing to your project.
The lens has a frosted effect, which distributes the light evenly. Excellent for use in all types of indicators where an unfocused light is desirable. They work well mounted in our 3mm LED Holders and the light produced from the Red, Green, Blue, Yellow, or White LED appears very crisp and clean.
SKU: n/a -
-
Diodes
DB3 – DIAC DO-35 Glass diode
Specification
- Origin: China
- Type: DIAC
Package Type: Through Hole - Package: DO-35
- Breakover Voltage: 28v to 36v
- Typical Breakover voltage: 32v
- Output voltage: 5v
- Breakover current: 50µA
- Leakage current: 10µA
- Peak current: 0.30A
- Rise time: 2µs
- Operating junction temperature: -40℃ to +125℃
- Storage temperature range: -40°c – +125°c
SKU: n/a -
Diodes

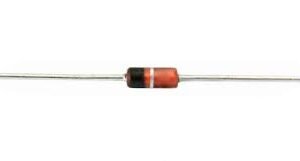

IN4148 Diode 1N4148 / 1N914 Signal Diode
Voltage – DC Reverse (Vr) (Max): 75VCurrent – Average Rectified (Io): 150mAVoltage – Forward (Vf) (Max) @ If: 1V @ 10mASpeed: Small Signal =< 200mA (Io), Any SpeedReverse Recovery Time (trr): 4nsCurrent – Reverse Leakage @ Vr: 5A @ 75VCapacitance @ Vr, F: 4pF @ 0V, 1MHzThermal Resistance: 300C/W JaMounting Type: Through HolePackage / Case: DO-204AH, DO-35, AxialSupplier Device Package: DO-35Operating Temperature – Junction: -65C ~ 175COther Names: 1N4148CT,1N4148CT-ND, 1N4148DICT, 1N914SKU: n/a
