Relays & Interface Module
Showing 1–24 of 30 results
-
Mega Payday Sale, Module, Relay Modules, Relay Modules, Relays & Interface Module
1 Channel Relay Module
Mega Payday Sale, Module, Relay Modules, Relay Modules, Relays & Interface Module1 Channel Relay Module
- VCC: Power interface,5V
- GND: Ground
- IN: Control interface.
- Drive Current: At least 4mA
- COM: Control circuit ground, connect to GND
- Size: approx. 41 x 16 x 16mm/ 1.61 x 0.62 x 0.62”
- Weight: Approx. 12g
SKU: n/a -
Relay Modules, Relays & Interface Module
12v 4 Channel IR Infrared Remote Control Switch Relay Module Board Kit
Relay Modules, Relays & Interface Module12v 4 Channel IR Infrared Remote Control Switch Relay Module Board Kit
- Can be high and low bidirectional trigger, support a variety of single-chip, support Arduino.
- Anti-interference ability, the use of diode freewheeling protection.
- Relay contact part of the use of double-sided thick wiring, for large current through, safe and reliable.
- Each relay output is led to normally open and normally closed two groups of electric shock, easy to use and flexible.
- Finished product with 100% functional testing and stability testing.
- Through the MCU control, can achieve external self-locking mode and non-self-locking two ways to trigger the relay.
SKU: n/a -
Module, Relay Modules, Relay Modules, Relays & Interface Module
16 Channel Relay Module
- Product Name: 16-Channel Relay Module
- Number of Channels: 16
- Control Signal voltage: 5V, active low
- Load Voltage: AC 250V/10A, AC 125V/15A
- DC 30V 10A
- Input power: 12V
- Each board needs 15-20mA Driver Current
- I / O port driver is active in low level.
- 1-16 channel optionally fully open/closed,
- or any channel.
- Standard interface that can be controlled directly by microcontroller
- Indication LEDs for Relay output status.
- Independent common end COM makes the relay convenient for users to access different signals.
- Use optocoupler protection with high safety performance
- Widely used for all MCU control, industrial sector, PLC control, smart home control.
- Size: 8 x 5.7 x 1.2 inches
- Weight: 8.8 ounces
SKU: n/a -
Module, Relay Modules, Relay Modules, Relays & Interface Module
2Channel Relay Module
- 5V 2-Channel Relay interface board, and each one needs 15-20mA Driver Current
- Equiped Equipped with high-current relay, AC250V 10A ; DC30V 10A
- Standard interface that can be controlled directly by microcontroller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic active low)
- Opto-isolated inputs
- Indication LED’s for Relay output status
SKU: n/a -
Module, Relay Modules, Relay Modules, Relays & Interface Module
5v 8 Channel Relay Module Relay Board Relay Arduino Relay Module
Module, Relay Modules, Relay Modules, Relays & Interface Module5v 8 Channel Relay Module Relay Board Relay Arduino Relay Module
- Imported high-quality double-sided compact PCB.
- Opto-isolated inputs mean your digital electronics are safe and noise-free.
- This relay module is 5V active low.
- It is an 8-channel relay interface board, which can controlled directly by a wide range of microcontrollers such as Arduino, AVR, PIC, ARM, PLC, etc.
- It is also able to control various appliances and other equipment with a large current.
- 5v Relay output maximum contact is AC250V 10A and DC30V 10A.
- The standard interface can be directly connected with microcontrollers.
- Red working status indicator lights are conducive to safe use.
- Widely used for all MCU control, industrial sector, PLC control, and smart home control.
SKU: MOD554 -
-
-
Module, Relay Modules, Relay Modules, Relays & Interface Module
Light Sensitive LDR Relay Module 12V
- Automatically controls the relay based on light intensity
- Included LDR (Light Dependent Resistor) sensor on 10 lead detects visible light
- Adjustable light level set-point
- Controls loads of 115/230VAC @ 10A
- Controls loads of 0 15VDC @ 10A
- Both NO (Normally Open) and NC (Normally Closed) contacts
- LED indicator when the relay is energized
- 12V power operation
SKU: n/a -
Relay, Relays & Interface Module
Relay 12V 5Pin
- Model Number: SRD-12VDC-SL-C
- Coil Power : 12V DC
- Pin Out: 5 Pin – Coil – COM – NC – NO
- Nominal Coil Power: 0.36w, 0.45W
- Contact Capacity: 10A 250VAC/10A 125VAC 10A 30VDC/10A 28VDC
- Insulation Resistance: 100M.500VDC
- Operate Time: 15ms/10ms
- Terminal Type: PCB
- Contact Load: High Power
- Product name:: 12V DC Electrical Relay SRD-05VDC-SL-C
- Contact Ratings: 1A,1C
- Contact Resistance: 100m (at 10A 5VDC)
- Contact Material: Silver Alloy
- Size: Miniature
- Protect Feature: Sealed
SKU: n/a -
Relay, Relays & Interface Module
RELAY 24V 10A 5 PIN PCB
Specifications:
- Model Number: SRD-24VDC-SL-C
- Coil Power: 24V DC
- Pin Out: 5 Pin – Coil – COM – NC – NO
- Nominal Coil Power: 0.36w, 0.45W
- Contact Capacity: 10A 250VAC/10A 125VAC 10A 30VDC/10A 28VDC
- Insulation Resistance: 100M .500VDC
- Operate Time: 15ms/10ms
- Terminal Type: PCB
- Contact Load: High Power
- Product name:: 24V DC Electrical Relay SRD-05VDC-SL-C
- Contact Ratings: 1A,1C
- Contact Resistance: 100m?(at 10A 5VDC)
- Contact Material: Silver Alloy
- Size: Miniature
- Protect Feature: Sealed
SKU: n/a -
Relay, Relays & Interface Module

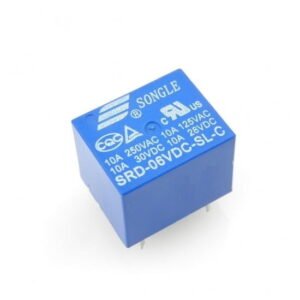

RELAY 6V 10A – 5 PIN PCB
Specifications:
- Model Number: SRD-06VDC-SL-C
- Coil Power : 6V DC
- Pin Out: 5 Pin – Coil – COM – NC – NO
- Nominal Coil Power: 0.36w, 0.45W
- Contact Capacity: 10A 250VAC/10A 125VAC 10A 30VDC/10A 28VDC
- Insulation Resistance: 100M-.500VDC
- Operate Time: 15ms/10ms
- Terminal Type: PCB
- Contact Load: High Power
- Product name:: 6V DC Electrical Relay SRD-05VDC-SL-C
- Contact Ratings: 1A,1C
- Contact Resistance: 100m (at 10A 5VDC)
- Contact Material: Silver Alloy
- Size: Miniature
- Protect Feature: Sealed
SKU: n/a
