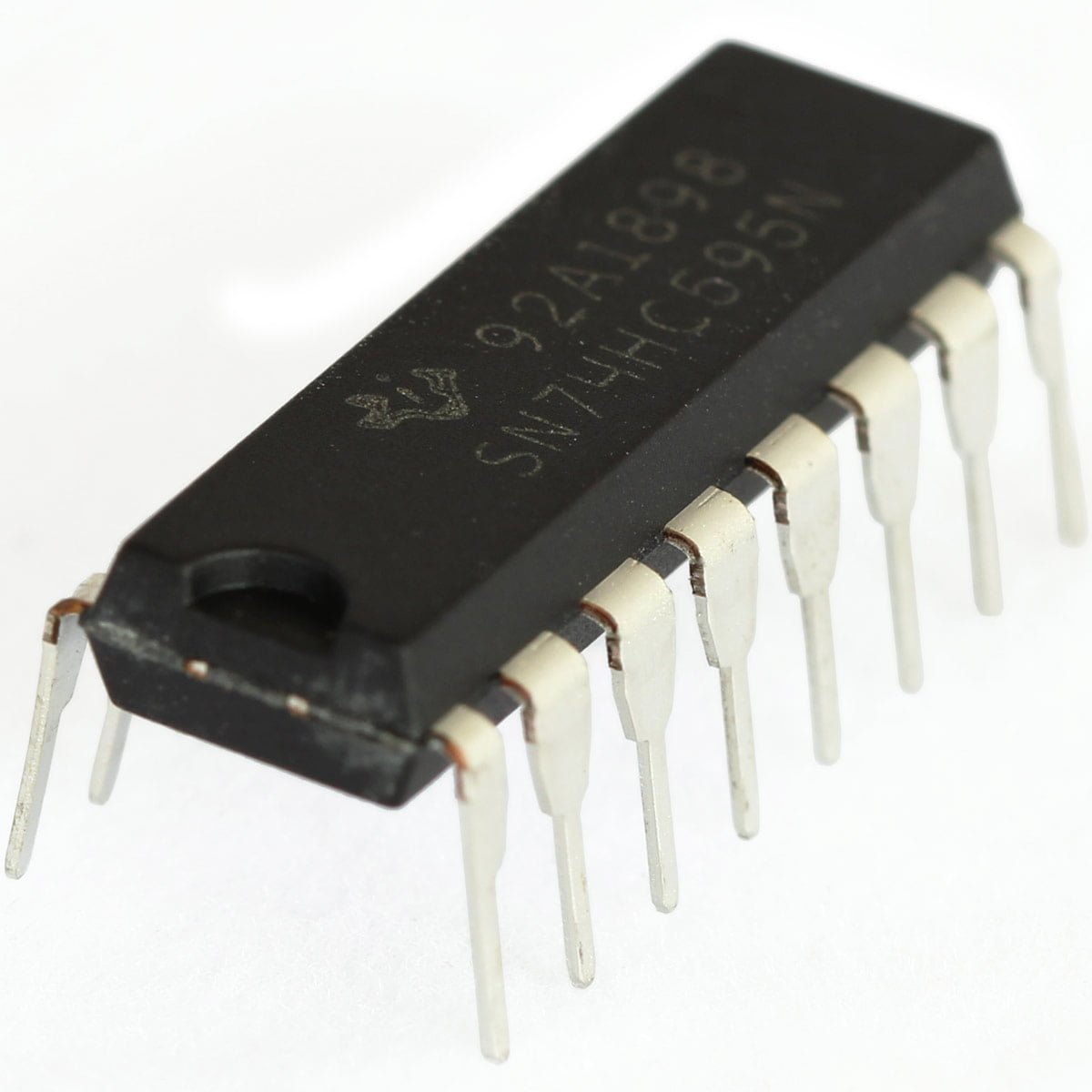

74HC595 74HC595D Shift Register
74HC595 8-BIT SERIAL-IN SERIAL OR PARALLEL-OUT SHIFT REGISTER contain an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. The storage register has parallel 3-state outputs. Separate clocks are provided for both the shift and storage register. The shift register has a direct overriding clear (SRCLR) input, serial (SER) input, and serial outputs for cascading. When the output-enable (OE) input is high, the outputs are in the high-impedance state.
₨ 40 ₨ 62
74HC595 8-BIT SERIAL-IN SERIAL OR PARALLEL-OUT SHIFT REGISTER
1 8-bit serial input
2 8-bit serial or parallel output
3 Storage register with 3-state outputs
4 Shift register with direct clear
5 100 MHz (typical) shift out frequency
6 Complies with JEDEC standard no. 7A
7 Input levels:
8 For 74HC595: CMOS level
9 For 74HCT595: TTL level
10 ESD protection:
11 HBM JESD22-A114F exceeds 2000 V
12 MM JESD22-A115-A exceeds 200 V
13 Multiple package options
14 Specified from 40C to +85C and from 40C to +125C
