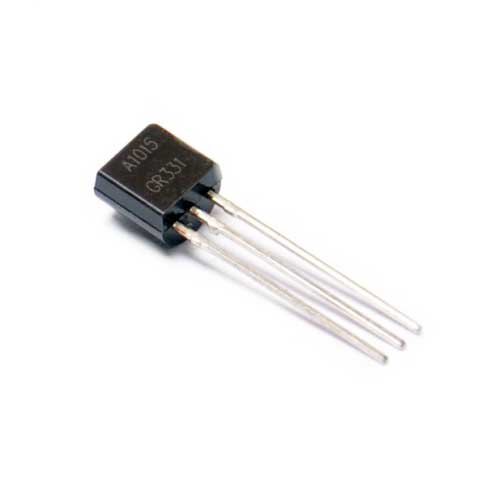

A1015 PNP Transistor

A1015 PNP Transistor

The main use is for audio frequency amplifier applications. It can also be used for the switching purpose just like other PNP transistors. When use as an Audio frequency general purpose amplifier, can be operated in the active region. This transistor is further divided into four groups according to the DC current gain, O, Y, G, and L and has 140, 240, 400 and 700 hfe DC current gain respectively.

₨ 10

Features and Technical Specifications

  • Type: p-np
  • Power Dissipation: 0.4watts
  • High voltage and High current: Vceo = 50v and Ic = 150mA
  • Low Noise: 1dB
  • Case Material: molded plastic
  • Collector power dissipation: 400mW
  • DC current gain: 400
  • Collector-Emitter and Collector Base breakdown voltage: 50Vdc
  • Base Emitter Saturation Voltage: 1.1Vdc
  • Collector-Emitter Saturation Voltage: 0.3Vdc
  • Base Emitter voltage: 1.45Vdc
  • Complementary to 2SC1815
  • Operating Temperature and Storage Temperature: -55 to +150
