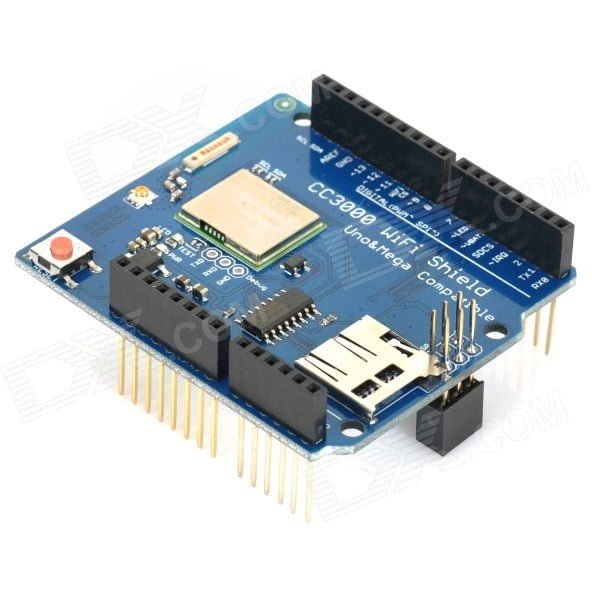

Arduino WiFi Shield CC3000

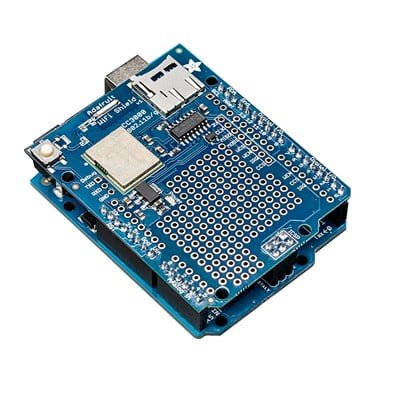

Arduino WiFi Shield CC3000 - Image 2
, ,

Arduino WiFi Shield CC3000

Availability:

Out of stock
  1. Based on TI CC3000 WIFI module.
  2. Use SPI communication .
  3. Integrated 3.3V regulator .
  4. Level shifter integrated .
  5. Integrated ceramic antenna .
  6. It has a connector for external antenna WIFI
  7. Compatible with Arduino UNO, Mega, Leondardo & Micro
  8. Antenna: Onboard Ceramic
  9. MicroSD card slot onboard
  10. Reset button
  11. Communication Protocol: SPI
  12. Connects via IEEE 802.11 b/g networks
  13. Tx Bandwidth: 11Mbps
  14. Tx Sensitivity: +/-18dBm
  15. Rx sensitivity: -86dBm
  16. IRQ pin for interrupts (useful for asynchronous connections)
  17. Supports WEP, WPA, WPA2, TKIP and AES
  18. TCP and UDP Client & Server Modes available
  19. Max Concurrent TCP/UDP Sockets: 4
  20. TCP/IP stack is built in.

₨ 2,912

Out of stock

Features

  1. Arduino, Crowduino, Seeeduino, Arduino Mega and Crowduino Mega compatible
  2. Support SD card 2GB and 4GB
  3. Wireless network processor
    • IEEE 802.11 b/g ( 2.4GHz)
    • Embedded IPv4 TCP/IP stack
  4. Best-in-class radio performance
    • TX power: +18.0 dBm at 11 Mbps, CCK
    • RX sensitivity: –88 dBm, 8% PER, 11 Mbps
  5. Works with low MIPS and low-cost MCUs with compact memory footprint
    • Small code size (Flash and RAM) required for MCU
  6. FCC, IC, CE and TELEC certified reference design with a chip antenna
  7. Integrated crystal and power management
  8. Small form factor
    • 16.3 mm × 13.5 mm × 2 mm
  9. Operating temperature: –20°C to 70°C
  10. SmartConfig technology enables simple Wi-Fi configuration using a smartphone, tablet or PC
  11. Proven Wi-Fi interoperability; based on TI’s seventh generation of proven Wi-Fi solutions
  12. Complete platform solution including user and porting guides, API guide, sample applications, and support community

Specifications

CC3000 Specifications
CC3000’s Characteristics
Standards 802.11 b/g, BSS Station
Wi-Fi Security Modes WEP, WPA/WPA2 (AES and TKIP – Personal)
Embedded Wi-Fi TCP/IP stack (IPv4 – DHCP client, DNS, mDNS, ARP),
Wi-Fi driver, security supplicant, Auto-calibrated radio
Required Code size As low as 5KB Flash & 360B RAM
Host Interface SPI at 16MHz
Power Modes Active Mode (92mA typ RX current),
Shutdown Mode (<5uA)
Power Supply 2.9V – 4.8V
I/O Voltage 1.8V – 3.6V
Connections 4 Sockets (UDP or TCP)
Throughput (TCP) ~4 Mbps*Note This was measured for CC3000, when combined with MSP430FR5739
Headless Configuration SmartConfig™ Technology
