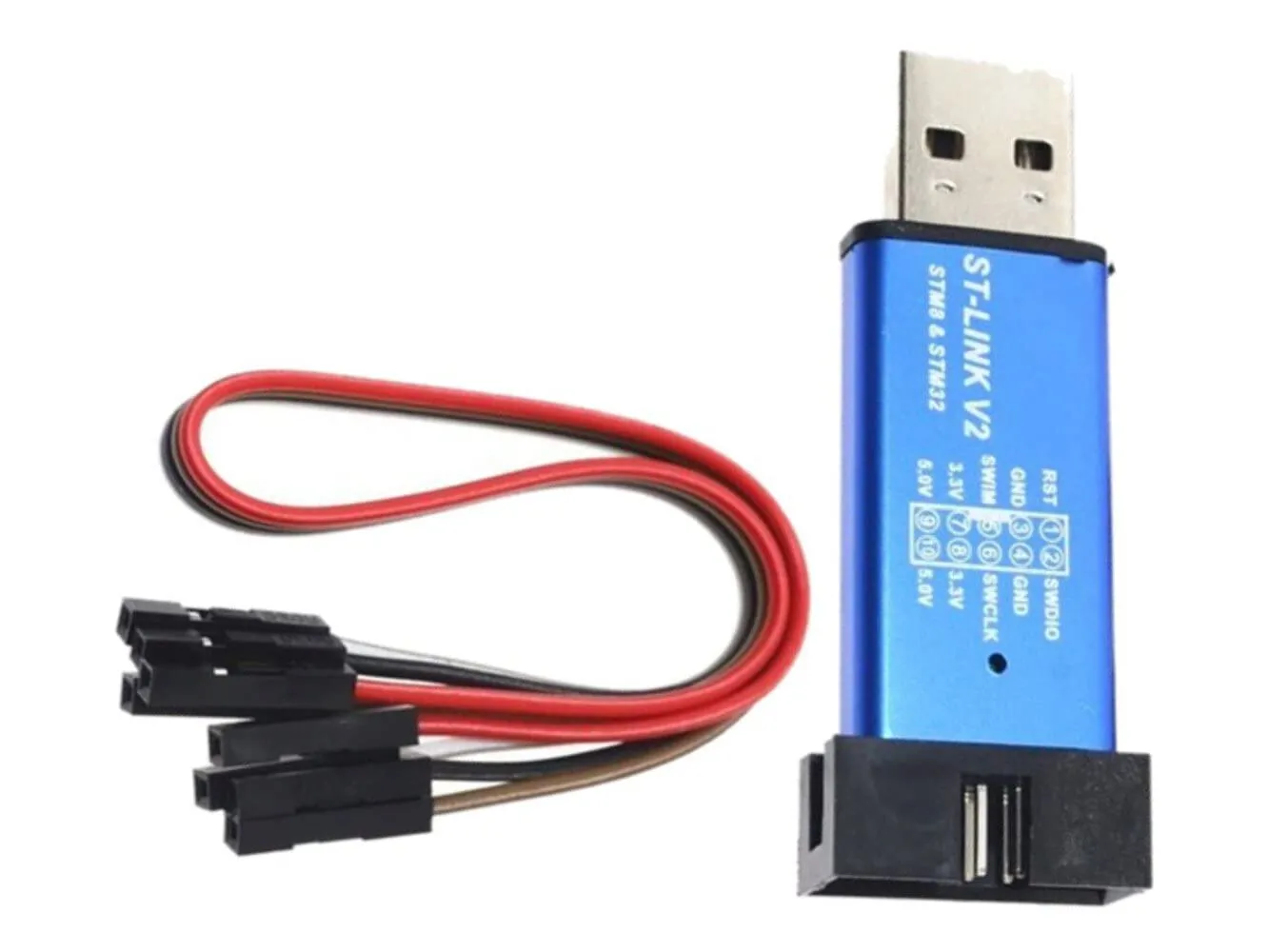

Mini ST-LINK V2, fully consistent with the official version, support for automatic upgrades, support the full range STM32 SWD (only 4pins including SWCLK, SWDIO, and power) and a full range STM8 SWIM (only 4pins including SWIM, Reset and power) download and debug.

Use this device to send program code to the 32-bit STM32 ARM Cortex or 8-bit STM8 microcontrollers. The header for this ST-Link v2 programmer contains connections for 5V, 3.3V, SWCLK, SWDIO, SWIM, Reset (RST/NRST) and GND. The connector on the opposite side of this device is a USB connector and is intended to be plugged into the computer.

Features:

• PCB installed inside of aluminium alloy U disk shell, portable, safe and reliable!
• The interface definition is directly marked on the shell, which is clear, convenient, and practical!
• 5V, and 3.3V offers at the same time, allowing you to program your target board with both 5V and 3.3V
• Shell characters using laser engraving, never fade off! Permanent clarity!
• 500MA internal resettable fuse, complete protection of your expensive computer motherboard!
• The Red and blue LED indicator allows you to always observe ST-LINK V2 working conditions!
• With 4 DuPont lines, you can easily respond to different target board line orders!
• Use anti-static bag packaging.

Supports For ST-LINK V2:

• ST-LINK Utility 2.0 and above
• STVD 4.2.1 and above
• STVP 3.2.3 and above
• IAR EWARM V6.20 and above
• IAR EWSTM8 V1.30 and above
• KEIL RVMDK V4.21 and above

You can download the Drivers by clicking here

Note: The product is available in Multiple colours Will be shipped randomly.
