Development Boards
Showing all 13 results
-
AVR/Atmel, Development Boards
AVR C51 Development Board
Support for 51 series microcontroller STC89C52, STC12C5A60S2, AT89C51, AT89C52, AT89S51, AT89S52 most commonly used. In addition, to support the other 40 feet of the 51 series microcontroller and the ATmega16! STC89C52, STC12C5A60S2 can serial direct download program for, AT89S series microcontroller needs need specialized programming download program with USBISP a download manager program, AT89C series microcontroller. The ATmega16 use need to use an adapter plate, the download program needs USBISP Downloader!
SKU: n/a -
Development Boards, PIC Controllers - Microchip
Pic Development Board
PIC development board is powerful development platform for all versions of PIC microcontroller. It can be used for data logging, applications in real time data monitoring controll processes and interactive control panel sytems.
SKU: n/a -
Development Boards, STM32
ST Link V2 Programmer For STM8 & STM32 Microcontroller
- PCB installed inside of aluminium alloy U disk shell, portable, safe and reliable!
- The interface definition is directly marked on the shell, which is clear, convenient, and practical!
- 5V, and 3.3V offers at the same time, allowing you to program your target board with both 5V and 3.3V
- Shell characters using laser engraving, never fade off! Permanent clarity!
- 500MA internal resettable fuse, complete protection of your expensive computer motherboard!
- The Red and blue LED indicator allows you to always observe ST-LINK V2 working conditions!
- With 4 DuPont lines, you can easily respond to different target board line orders!
- Use anti-static bag packaging.
SKU: n/a -
Development Boards, STM32

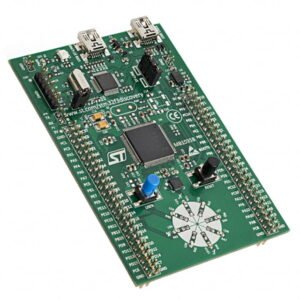

STM Discovery Kit STM32F3 STM32F303VC
- STM32F303VCT6 microcontroller featuring 256 KB Flash, and 48 KB RAM in an LQFP100 package
- On-board ST-LINK/V2 with selection mode switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging)
- Board power supply: through USB bus or from an external 3 V or 5 V supply voltage
- External application power supply: 3 V and 5 V
- L3GD20, ST MEMs motion sensor, 3-axis digital output gyroscope
- LSM303DLHC, ST MEMs system-in-package featuring a 3D digital linear acceleration sensor and a 3D digital magnetic sensor
- Ten LEDs:
- LD1 (red) for 3.3 V power on
- LD2 (red/green) for USB communication
- Eight user LEDS, LD3/10 (red), LD4/9 (blue), LD5/8 (orange) and LD6/7 (green)
- Two pushbuttons (user and reset)
- USB USER with Mini-B connector
- Extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing
SKU: n/a -
Development Boards, STM32
STM32F103C8T6 Blue Pill STM32f103 Arm Cortex Dev Board
- 100% Brand new and high-quality STM32 Board
- 72MHz work frequency.
- 64K flash memory, 20K SRAM.
- 2.0-3.6V power, I/O.
- Reset(POR/PDR).
- 4-16MHz crystal.
- Onboard Mini USB interface, you can give the board power supply and USB communication.
SKU: n/a -
Development Boards, STM32
STM32F4 Discovery – Arm Cortex M4 Processor kit
- STM32F407VGT6 microcontroller featuring 32-bit ARM Cortex-M4F core, 1 MB Flash, 192 KB RAM in an LQFP100 package
- On-board ST-LINK/V2 with selection mode switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging)
- Board power supply: through USB bus or from an external 5 V supply voltage
- External application power supply: 3 V and 5 V
- LIS302DL or LIS3DSH ST MEMS 3-axis accelerometer
- MP45DT02, ST MEMS audio sensor, omni-directional digital microphone
- CS43L22, audio DAC with integrated class D speaker driver
- Eight LEDs:
- LD1 (red/green) for USB communication
- LD2 (red) for 3.3 V power on
- Four user LEDs, LD3 (orange), LD4 (green), LD5 (red) and LD6 (blue)
- 2 USB OTG LEDs LD7 (green) VBus and LD8 (red) over-current
- Two push buttons (user and reset)
- USB OTG FS with micro-AB connector
- Extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing
SKU: n/a -
Development Boards, STM32

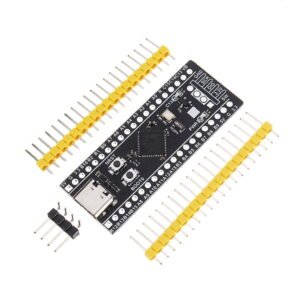

STM32F401 F411 Black Pill Mini Development Board
- STM32F411CEU6 (100Mhz) with 512KB FLASH & 128KB RAM
- Onboard LDO for 5V to 3.3V DC conversion
- 2x 20 Pin Single Line Header which gives access to all the IOs. The board comes with unsoldered header connectors.
- The header for SWD Programming Interface
- Switches for Reset, Boot Mode, User
- LED for Power and another connected on GPIO(C13)
- 25MHZ high speed crystal, 32.768Khz low speed crystal
- BOOT0 and NRST, releasing NRST to access serial port download, and DFU download, using ST multi-in-one STM32 Cube Programmer burning software.
- Option to solder SPI Memory on the bottom side of the board.
- USB-C type Connector
SKU: n/a -
Development Boards, Other SBCs
Teensy 3.1
The Teensy is a breadboard-friendly development board with loads of features in a, well, teensy package. The Teensy 3.1 brings a 32 bit ARM Cortex microprocessor into the mix so you can do some serious number crunching.
The Teensy 3.1 comes pre-flashed with a bootloader so you can program it using the on-board USB connection: No external programmer needed! You can program for the Teensy in your favorite program editor using C or you can install the Teensyduino add-on for the Arduino IDE and write Arduino sketches for Teensy!
The processor on the Teensy also has access to the USB and can emulate any kind of USB device you need it to be, making it great for USB-MIDI and other HID projects. The 32 bit processor brings a few other features to the table as well, such as multiple channels of Direct Memory Access, several high-resolution ADCs and even an I2S digital audio interface! There are also 4 separate interval timers plus a delay timer! Oh yeah, and all pins have interrupt capability. Also, it can provide system voltage of 3.3V to other devices at up to 100mA.
SKU: n/a
