Showing 1–24 of 39 results
-
Mega Payday Sale, Module, Relay Modules, Relay Modules, Relays & Interface Module
1 Channel Relay Module
Mega Payday Sale, Module, Relay Modules, Relay Modules, Relays & Interface Module1 Channel Relay Module
- VCC: Power interface,5V
- GND: Ground
- IN: Control interface.
- Drive Current: At least 4mA
- COM: Control circuit ground, connect to GND
- Size: approx. 41 x 16 x 16mm/ 1.61 x 0.62 x 0.62”
- Weight: Approx. 12g
SKU: n/a -
Batteries & Chargers, Battery Management System (BMS), Clearance Sale, Mega Payday Sale
1S BMS 18650 3.7v Battery Management Module
Batteries & Chargers, Battery Management System (BMS), Clearance Sale, Mega Payday Sale1S BMS 18650 3.7v Battery Management Module
- Over charge voltage: 4.25±0.05V
- Over charge release voltage:4.23±0.05V
- Over discharge voltage:2.54±0.1V
- Maximal continuous charging current: 2A
- Maximal continuous Discharging current: 2A
- Over current protection: 1A-3A
- Overcharge protection, over discharge protection, short circuit protection, over current protection.
- high-accuracy voltage detection circuit.
- terminal of the charger using high voltage device.
- Built-in three stage over current detection circuit (over current 1, over current 2, load short circuit);
- MOS transistor can control the battery charge and discharge.
- Weight:5 grm
SKU: n/a -
Battery Testers, Mega Payday Sale, Testers
1S-8S Lithium Battery Capacity Level Indicator Module
- Material: Plastic, Electronic Components
- Size: As Shown (1inch=2.54cm)
- Color: As Shown
- Working voltage: 3-34V, working current 5mA
- Operating temperature: -20-50 degrees Celsius
- The voltage error is 2%
SKU: n/a -
Arduino & IOT Boards, Mega Payday Sale, PWM Speed Controllers
5A Mini DC Motor PWM Speed Controller Module
Arduino & IOT Boards, Mega Payday Sale, PWM Speed Controllers5A Mini DC Motor PWM Speed Controller Module
DC 5V-35V 5A 20khz LED PWM DC Motor Controller Speed Regulation Dimmer available at best price in Pakistan at Electronation Pakistan
- Working voltage: DC4.5V-35V
- Output current: 0-5A
- Output power: 90W (MAX)
- Quiescent current: 7u A(standby mode)
- PWM duty ratio: 1%-100%
- PWM frequency: 20khz
- Size: 30*26mm
- Color: multicolor
- Material: electric components
SKU: n/a -
Adapters/Power Supply Modules, Mega Payday Sale

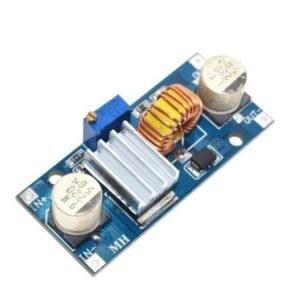

5A XL4015 DC To DC Buck Converter Blue
- 100% New and High-Quality 5A (5,000mA) 4-38V DC-DC Adjustable Step-Down Module
- Original XL4015 IC Power Supply Suitable for LED Strips, LED Matrix, and Other Circuits
- Wide Input Voltage 4V DC to 38V DC, Adjustable Output Voltage 1.25V DC to 36V DC
- Module Size: 54mm x 24mm x 15mm (l x w x h) Weight: 30 grams only with heat sink
SKU: n/a -
Adapters/Power Supply Modules, Mega Payday Sale
5A XL4015 Module Adjustable Step Down Buck Converter
- Module nature: non-isolated step-down module
- Rectification: Non-synchronous rectification
- Input voltage: 5V-32V
- Output voltage: 0.8V-30V
- Output current: adjustable Z large 5A
- Conversion efficiency: 95% (Z high)
- Switching frequency: 300KHz
- Output ripple: 50mV (Z large) 20M bandwidth
- Load regulation: 0.5% Voltage regulation: 2.5%
- Operating temperature: -40 C to + 85 C
SKU: n/a -
-
Arduino & IOT Boards, Boards, Mega Payday Sale
Arduino UNO R3 Dip
- ATmega328 microcontroller
- Input voltage – 7-12V
- 14 Digital I/O Pins (6 PWM outputs)
- 6 Analog Inputs
- 32k Flash Memory
- 16Mhz Clock Speed
- ATmega328
- Operating Voltage 5V
- Input Voltage (recommended) 7-12V
- Input Voltage (limits) 6-20V
- Digital I/O Pins 14 (of which 6 provide PWM output)
- Analog Input Pins 6
- DC Current per I/O Pin 40 mA
- DC Current for 3.3V Pin 150 mA
- Flash Memory 32 KB (ATmega328) of which 0.5 KB used by bootloader SRAM
- 2 KB (ATmega328) EEPROM
- 1 KB (ATmega328)
- Clock Speed 16 MHz
SKU: n/a -
Alphanumeric Displays, Display, Mega Payday Sale
Character LCD 16X2 Blue color
LCD (Liquid Crystal Display) screen is an electronic display module and find a wide range of applications. A 16×2 LCD display is very basic module and is very commonly used in various devices and circuits. These modules are preferred over seven segments and other multi segment LEDs. The reasons being: LCDs are economical; easily programmable; have no limitation of displaying special & even custom characters (unlike in seven segments), animations and so on. A 16×2 LCD means it can display 16 characters per line and there are 2 such lines.
SKU: n/a -
Digital Meter, Mega Payday Sale, Multi Meters
DC Voltmeter 0-30V 7-Segment Display
Specification
- Measuring range: DC4.0-30.0V
- Power supply range: No additional power supply, direct use of the measured voltage as a power supply, the range as above
- The highest input DC is 30.0V. Note: The input voltage higher than 30V may be permanently damaged! Allowable error 1%; greater than or equal to V, the error is 0.3V; less than V error 0.
- Input impedance : > 0K ohms
- Operating current < 23mA
- Refresh speed: about 300mS time
- Display mode: three “0.6” LED digital tube
- Display colour: red
- Lead length: about cm / 7.7 in
- Dimensions: about 4 x 2 x mm / 1. x 1.14 x 0.7 in
- Opening size: about 46 x mm / 1.1 x 1.07 in
- Net weight: about g
- Operating temperature: – ~ 6
SKU: n/a -
Digital Meter, Mega Payday Sale, Multi Meters
Digital Clamp Meter DT-266 DT266 AC Digital Clamp Multimeter Electronic Volt Resistance Tester Meter
Digital Meter, Mega Payday Sale, Multi MetersDigital Clamp Meter DT-266 DT266 AC Digital Clamp Multimeter Electronic Volt Resistance Tester Meter
- DC Voltage: 1000V (±0.5%)
- AC Voltage: 750V (±1.2%)
- AC Current: 20-1000A (±2.5%)
- Resistance(ohm): 20M-2000M(±1.0%)
- Battery: 9V Batteries
- LCD Max Reading: 1999
- LCD Display: 14×47mm
- Clamp Diameter: 2.13cm / 0.83″
- Size: 230×70×37mm
- Clamp meter with high accuracy and good reliability
- 3 1/2 digit LCD display max.value 1999
- Data hold function
- The low voltage symbol display
- Overload protection
- Continuity measurement
- Plug-in insulation tester adapter 500VCD(optional)
- Audible continuity
- Low power indication
SKU: n/a -
DIY Kits, Edison, Mega Payday Sale, Robotics
Edison Robot Kit
Get started on your EdVenture into coding and robotics with the EdPack1, which includes 1 Edison robot.
Each Edison robot comes with an internal rechargeable battery and an attached USB cable for both programming and charging your robot.
What’s included in the box?
1 x Edison robot with internal rechargeable battery
3 x skids (1 x attached to the robot, 2 x spare skids located in the packaging)
2 x wheels (attached)
2 x tyres (attached)SKU: n/a -
-
-
-
Adapters/Power Supply Modules, Clearance Sale, Mega Payday Sale
High Quality 12V 6A AC-DC Switching Power Supply Module Heavy Duty
Adapters/Power Supply Modules, Clearance Sale, Mega Payday SaleHigh Quality 12V 6A AC-DC Switching Power Supply Module Heavy Duty
- Item Type: Switching Power Supply Module
- Material: Synthetic cardboard
- Usage: Used for AC to DC power module
- Power Supply Model: WX -DC2407p
- AC Input: AC100-240V
- Universal AC Frequency: 50HZ/60HZ
- Output Voltage: DC12V
- Output Current: 5-6.5A (without any voltage drop)
- Output Power: 180W (maximum 220W)
- Positioning Hole Size: Approx. 10.58 x 5.57cm / 4.2 x 2.2in
SKU: n/a -
Arduino & IOT Boards, Kits, Mega Payday Sale, Module, Sensors
High Quality 37 in 1 Sensor Module Board Set Kit For Arduino
Arduino & IOT Boards, Kits, Mega Payday Sale, Module, SensorsHigh Quality 37 in 1 Sensor Module Board Set Kit For Arduino
This 37 in 1 Sensor Module Kit for Arduino is supplied with a variety of sensors that are compatible with Arduino Boards. This is the most complete performance starter kit with all the essential Arduino sensors.
It comprises 37 Pcs of essential Arduino components. The kit includes the latest Arduino components that can be used to turn your idea into a real product.
Tons of updated lessons and Arduino codes are available on Google and YouTube for free. It is extremely easy for Arduino fancier to control and use these modules. This kit will help you control the physical world with sensors.
SKU: n/a -
Incubator, Mega Payday Sale, Temperature & Humidity Meters
HTC-1 Electronic Temperature Humidity Meter
Incubator, Mega Payday Sale, Temperature & Humidity MetersHTC-1 Electronic Temperature Humidity Meter
- Large LCD display, multi-function.
- Indoor & outdoor temperature display, indoor humidity display, and time display.
- A memory of MAX & MIN measuring value.
- 12-hour / 24-hour displaying system selectable.
- degree C& F unit selectable.
- Clock, Date & Calendar function (month and date).
- Everyday alarm function.
- Desktop placing or Wall Hanging.
- Low power consumption.
- High stability & accuracy.
SKU: n/a -
IR & Vision, Mega Payday Sale, Sensors
IR Infrared sensor Two way Obstacle Sensor
- Reliable and accurate: Infrared obstacle avoidance sensors are a reliable and accurate way to detect objects in the environment. They are not affected by ambient light, making them a good choice for applications where there is a lot of light.
- Inexpensive: Infrared obstacle avoidance sensors are relatively inexpensive, making them a cost-effective solution for many applications.
- Easy to use: Infrared obstacle avoidance sensors are easy to use and can be integrated into a variety of applications.
- Durable: Infrared obstacle avoidance sensors are durable and can withstand harsh environments.
SKU: n/a -
Batteries & Chargers, Battery Management System (BMS), Mega Payday Sale
Lithium Battery 3S 12V 10A Charge Protection Board BMS
Batteries & Chargers, Battery Management System (BMS), Mega Payday SaleLithium Battery 3S 12V 10A Charge Protection Board BMS
- Model: 3S 10A BMS
- Size: 50 * 16 * 1.0mm
- Short circuit protection: protection, self-recovery delay.
- Input voltage: 12.6V
- Over-charge voltage range: 4.25-4.35v 0.05v
- Over-discharge voltage range: 2.3-3.0v 0.05v
- Maximum operating current: 5-8A
- Overload voltage range: 4.25-4.35 v 0.05 v
- Overpressure voltage range: 2.3-3.0 v 0.05 v
- Maximum instantaneous current: 9-10A
- Operating temperature: -40 — +50
- Storage conditions: -40 — +80
- Quiescent current: less than 6uA
- Internal resistance: less than 60m
SKU: n/a -
Converters, Mega Payday Sale

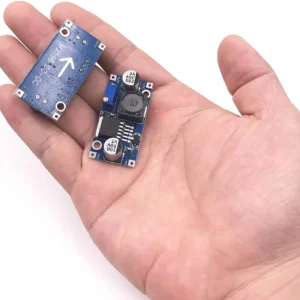

lm2596 Module DC/DC Step-Down
- Input voltage: 4-35V
- Output Voltage: 1.5-35V (adjustable)
- Output current: rated current 2A, maximum 3A (heat sink required)
- Conversion efficiency: Up to 92% (the higher the voltage, the higher the efficiency)
- Switching Frequency: 150KHz
- Rectifier: Non-Synchronous Rectification
- Module Properties: Non-isolated step-down module (buck)
- Short circuit protection: current limiting
- Operating temperature: Industrial grade (-40 to +85) (output power 10W or less)
- Full load temperature rise: 40
- Load regulation: 0.5%
- Voltage regulation: 0.5%
- Dynamic response speed: 5% 200uS
- Output ripple:
- Input 12V Output 5V 3A 60mV (MAX)
- Input 24V Output 12V 3A 120mV (MAX)
SKU: n/a
