Motors & Drivers
Showing 1–24 of 45 results
-
Cooling Fan, Motors & Drivers, Peltier & accessories

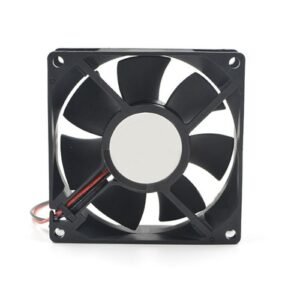

12V DC Cooling Fan 80mm
12v DC cooling fan 80mm Ideal for compact PC cases (HTPC, ITX, Small Form Factor) and other chassis (intake & exhaust), replacement fan for NAS and other devices, etc. you can order all types of electrical and electronics components at ELECTRONATION.PK
SKU: n/a -
Cooling Fan, Motors & Drivers, Peltier & accessories
12V DC Fan 3 Inches
- Type: Axial Flow Fan
- Blade Material: Plastic
- Bearing Type: Ball/hyper bearing
- Bearing system type: Ball/Hydraulic bearing
- Rated voltage: 5V/12V/24V/48V
- Rated speed: 2000/2500/3000/3500/4000/5000RPM
- Maximum airflow: 26.13/33.02/38.10/43.90/49.50/63.50CFM
- Maximum pressure(mmH2O): 1.75/2.65/3.38/4.85/6.58/9.40mmH2O
- Maxima noise(dBA): 22.1/26.7/30.9/37.2/40.9/42.0dBA
- Function: by impedance, by IC, by IC with FG
- Safety approvals: CE, TUV, UL
- Lead wire: UL Type (+): Red wire ; (-): Black wire. This is a two-wire cooling fan
- Bearing Type: Dual Ball Bearings
- Life: Working up to 50000h at 25 degrees.
- Applications: Server cabinet, UPS power, computer, CPU, etc.
- Check the voltage whether fit your need. power the fan with corresponding voltage.
- Make sure the + (RED wire) and Black wire are connected to power correctly.
- 1 x 3 Inches12V DC Fan
SKU: n/a -
Gear Motor, Motors & Drivers
12V DC Motor 350RPM w/Encoder (12kg*cm)
This is a gear motor with encoder. It is a motor with a 34:1 gearbox and an integrated quadrature encoder that provides a resolution of 11 pulse single per round giving a maximum output of 374 within one round. With an Arduino controller and motor driver, applications for this include a closed-loop PID control or PWM motor speed control. This motor is an ideal option for mobile robot projects. The copper output shaft, embedded thread and reinforced connector greatly extends the motor’s service life.
SKU: MOT544 -
Cooling Fan, Motors & Drivers, Peltier & accessories
2.5inch 12V DC Fan Cooling Fan
2.5inch 12V DC Fan Cooling Fan is the best choice for customers. This Exhaust Fan with high-quality material is ideal for compact PC cases (HTPC, ITX, Small Form Factor) and other chassis (intake & exhaust), replacement fan for NAS and other devices, etc. This fan is made from injection-molded, plastic housing a durable DC motor for long life. 2.5 inch 12V DC Fan is 4 through holes to allow easy mounting to a variety of surfaces. Our 12V DC fans are the clear choice for anyone needing, quality, reliability, and low-cost cooling in their DIY project.
SKU: n/a -
-
-
Gear Motor, Motors & Drivers
6V DC Micro Gear Motor 56 RPM Gearhead Motor
Specifications:
Model: GM12-N20
Material: Alloy Gear
Rated Voltage: DC 6.0V
No Load
Speed: 56RPM
Current: 50mA
With Maximum Efficiency
Speed: 40RPM
Current: 150mA .
Torque: 73.5 mN.m (26.46 oz)
Stall
Torque: 6.6 lbs.cm
Current: 0.6A
Size: 0.394 x 0.433 x 1.378 in.
SKU: n/a -
DC Motor, Motors & Drivers

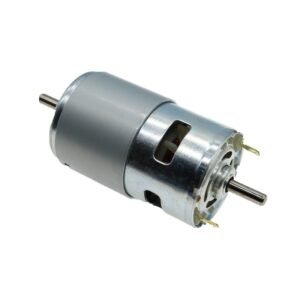

755 DC Motor Dual Shaft
- Model: RS-775 DATASHEET
- Voltage: 12v-24v universal
- Selectable voltage / speed (no load /per minute)
- 12V: 3000 4500 6500 10000
- 24V: 6000 9000 13000 20000
- Shaft length: 50mm
- Shaft diameter: 5mm
- Voltage: 12-24V DC
- Speed: 3000-20000 rpm
- No-load current: 1.7A (starting current 5A)
- Rated current : 2A
- Weight: 0.35KG
- Dimensions: outer diameter 44mm, length 66.5mm
SKU: n/a -
BLDC Motor, Motors & Drivers
A2212 – 1400KV BLDC Brushless Motor
- KV: 1400
- No-load Current : 10 V : 0.5 A.
- Current Capacity: 12A/60s
- No Load Current @ 10V: 0.5A
- No. Of Cells: 2-3 Li-Poly
- Motor Dimensions: 27.5 x 30mm
- Shaft Diameter: 934;3.17mm
- Shaft diameter: 3.175mm.
- Minimum ESC Specification: 18A (30A Suggested)
- Thrust @ 3S with 1045 propeller: 1000gms approx.
- Thrust @ 3S with 0945 propeller: 650gms approx.
- Thrust @ 3S with 0845 propeller: 550gms approx
SKU: n/a -
BLDC Motor, Motors, Motors & Drivers, Multicopter Accesories
A2212 2200KV Brushless DC Motor BLDC
- Recommended Voltage: 2-12VDC
- Internal Resistance: 90mΩ
- Shaft Size: 3.17mm (1.8″)
- Shaft Length: 11mm
- Motor Diameter: 27.5mm
- Motor Length (Overall): 40mm
- Current Capacity: 12A/60s
- Max Efficiency: 80%
- Max Power: 239W
- Recommended ESC: Minimum Of 18A
- Recommended Model Weight: 300-1000g
- Mounting Holes: M3
- Wire Length: ~70mm
SKU: n/a -
Motor Drivers, Motor Drivers, Motors & Drivers, Robotics
A4988 Stepper driver
- Supply Voltage : 8-35 VDC.
- Current : 1.0A (no heatsink ).
- Current : 2.0A (with heat-sinking).
- logic input : 3 – 5.5V .
- Automatic current decay mode detection/choice.
- Mixed with slow current decay mode.
- The low power dissipation of synchronous rectifier.
- Internal UVLO(ultra voltage lockout).
- Crossover current protection.
- Thermal shutdown circuit.
- Ground fault protection.
- Loading and short circuit protection.
- The optional five-step mode: full, 1/2, 1/4, 1/8 and 1/16.
SKU: n/a -
Arduino & IOT Boards, Module, Motors & Drivers, Stepper Motor
Arduino 28BYJ48 Stepper Motor
Arduino 28BYJ48 Stepper Motor With ULN2003 Driver Board Description: This is 28YBJ-48 DC 5V 4 phase 5 wire stepper motor with ULN2003 driver board5-wire phase can drive ordinary uln2003 chip can also be connected as phase 2 may be supporting the development board, direct plug. Motor: Diameter: 28mmVoltage: 5VStep angle: 5.625 x 1/64Reduction ratio: 1/64ULN2003 driver board: A, B, C, D LED indication Four-phase stepper motor work status Size: 31x35mmPackage included:1 x ULN2003 driver board1 x 28BYJ-48 stepper motor Options:
SKU: n/a -
Motor Drivers, Motor Drivers, Motors & Drivers, Robotics
BTS 7960 Motor Driver 43A
- Double BTS7960 large current (43 A) H bridge driver;
- 5V isolate with MCU, and effectively protect MCU;
- 5V power indicator on board;
- voltage indication of motor driver output end;
- can solder heat sink;
- Just need four lines from MCU to driver module (GND. 5V. PWM1. PWM2);
- isolation chip 5 V power supply (can share with MCU 5 V);
- size: 4 * 5 * 1.2 cm;
SKU: n/a -
Clearance Sale, DC Motor, Motors & Drivers

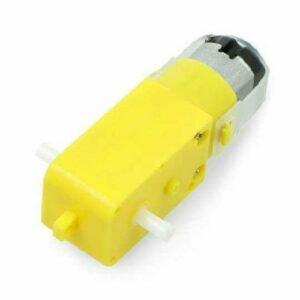

DC Gear Motor 6v TT Yellow Gear Motor Double Shaft
Specification: DC Gear Motor 6v TT Gear Motor Yellow Double Shaft
Operating voltage: 3V-6VDC .
Reduction Ratio: 1:48.
The load current: less than or equal to150mA (3V) , less than or equal to200mA (6V) .
No-load Speed: 90+/-10% rpm(3V), 200±10% rpm(6V) .
Color: Yellow.
Material: Plastic, metal.
Size: 7×2.2×1.8cmSKU: n/a -
Gear Motor, Motors & Drivers
DC Gear Motor With Encoder (6V 210RPM)
This is 6V DC Motor 10kg-cm 210RPM w/Encoder metal geared DC motor w/Encoder. It is a 6V motor with a 34:1 metal gearbox and an integrated quadrature encoder that provides a resolution of 11 counts per revolution of the motor shaft, which corresponds to 341.2 counts per revolution of the gearbox’s output shaft.
SKU: n/a -
Gear Motor, Motors & Drivers
DC gear motor Yellow
Operating voltage: 3V ~ 6V DC (recommended value 5V)
Maximum torque: 800g.cm
Speed without load: 90x10rpm
Reduction ratio: 1:48
No Load current: 190mA(max.250mA)
Stall Current: ~1A
Strong anti-interference on this motor keeps it safe around micro-controllers.SKU: n/a -
DC Motor, Motors & Drivers
DC Motor (Large)
Buy best quality DC Motor at the minimal rates from ElectroNation.
775 motor, with metal rollers in the front, trailed by a copper coat
Shaft length: 17mm;
Shaft distance across: 5mm
Body Diameter: 42mm; Body Length: 66.7mm
Mounting Hole Size: M4;
Mounting Hole: 2SKU: n/a -
DC Motor, Motors & Drivers

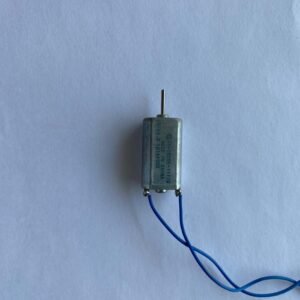

DC Motor (Mini)
Buy the best quality DC Motor at minimal rates from Electronation.
- Product name: DC motor;
- Model: FF-050;
- Operating voltage: 3-12V.
- Output speed: 7400 rpm;
- Motor Size: 1063 x 0.630 x 0.472mm (L x W x H).
- Shaft diameter: 0.059 in;
- Shaft length: 10mm.
- Main Color: Silver Tone.
- Material: metal.
SKU: n/a
