Distance & Proximity, Sensors

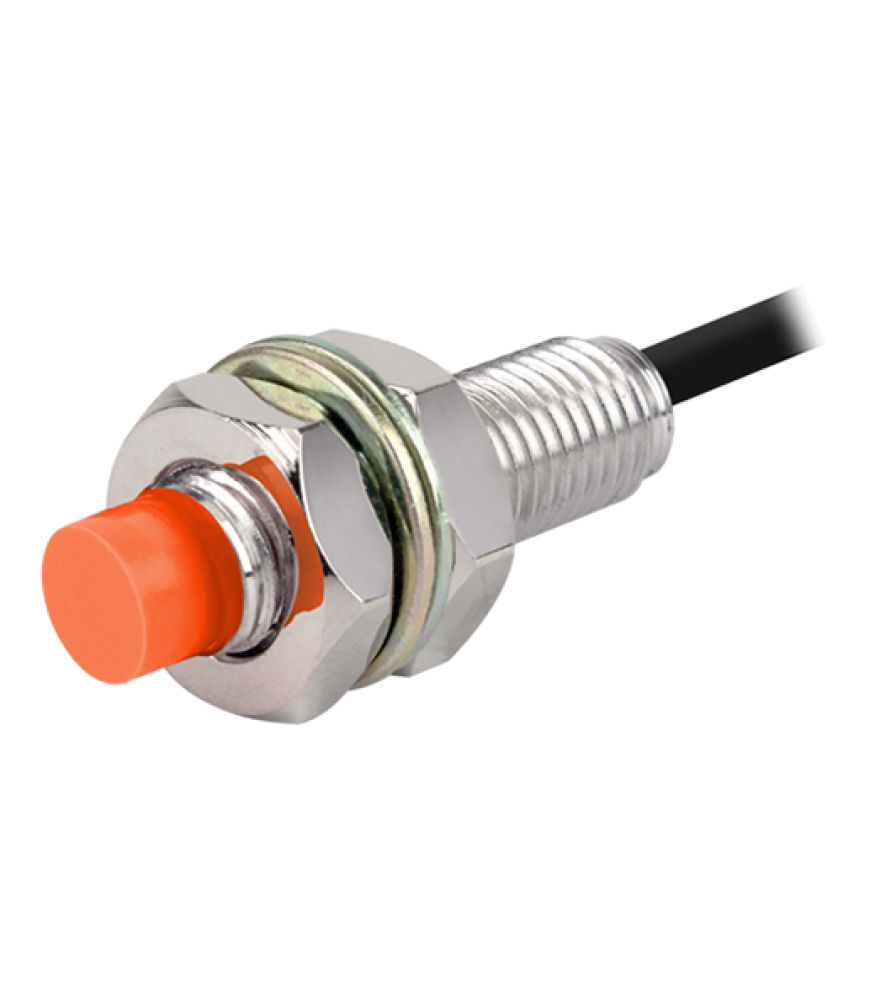

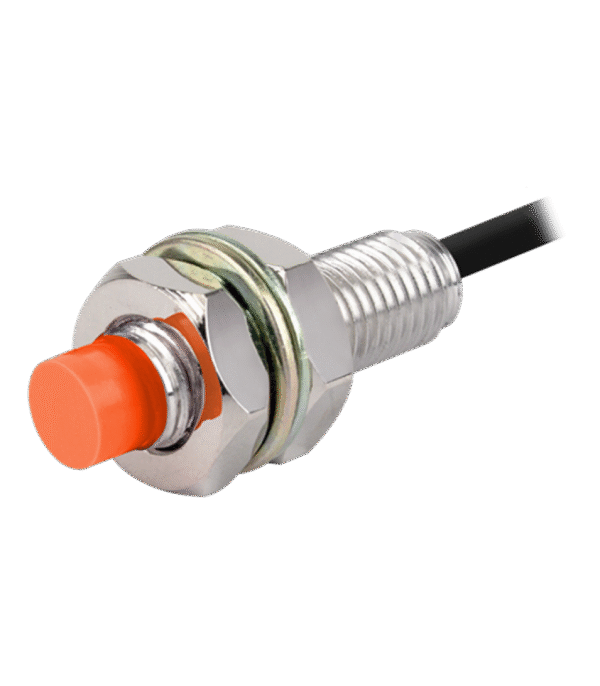

PR12 4DP Proximity sensor Autonics
| Sensing distance | 1.5mm |
| Installation | Shield(flush) |
| Standard sensing target | 8×8×1mm(iron) |
| Response frequency | 1.5kHz |
| Current specification | Current consumption: Max. 10mA |
| Control output | PNP Normally Open |
| Material | Brass(nickel plated) |
| Cable Standard/material | Standard cable |
| Body length | Standard type |
| Weight | Approx. 64g (approx. 52g) |
₨ 799 ₨ 1,039
PR12 4DP Proximity sensor Autonics
Power 12-24 VDC
– Drat: M12x1
– Sensing distance: 4mm
– PNP Open Collector output, Normally Open
– Sensor head type: non-flush / non-shield
– Material: Case Nickel-plated brass, Sensing Surface: PBT
– Connection: Cable type (4,2m), 3 wire
– Sensor length specifications, can be seen in the image section
