Distance & Proximity, Sensors

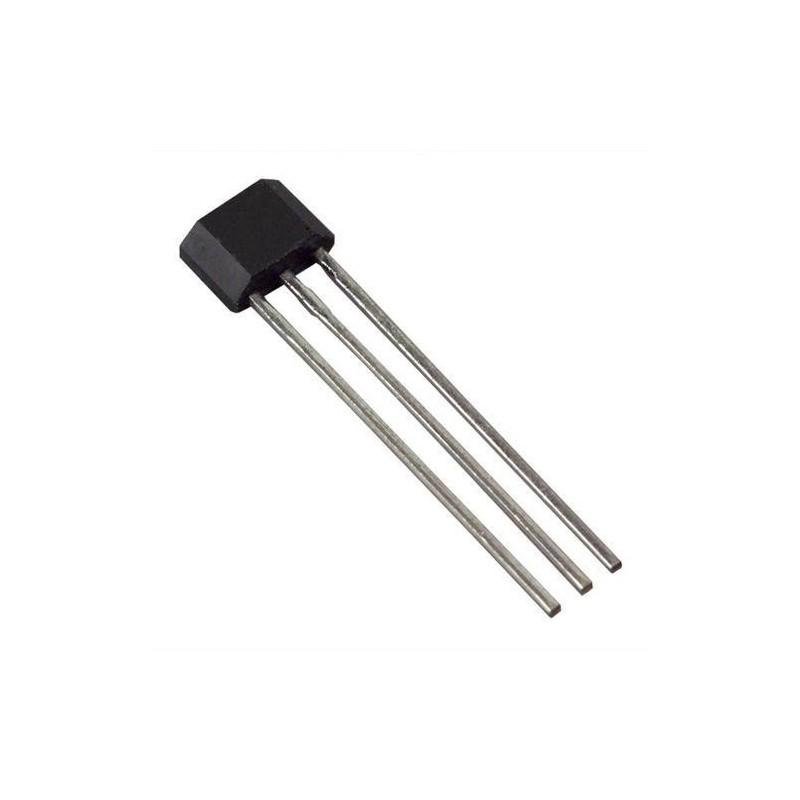

UGN3503 AH3503 Hall Effect Sensor
- Extremely Sensitive
- Flat Response to 23 kHz
- Low-Noise Output
- 4.5 V to 6 V Operation
₨ 159 ₨ 208
UGN3503 AH3503 Hall Effect Sensor
UGN3503 AH3503 Hall Effect Sensor is an analog signal outputs Hall IC, output voltage varies with the intensity of the magnetic field. The sensor chip has built-in reverse-voltage protection and voltage.
regulators, temperature compensation circuit, Hall voltage generator, signal amplifier, etc circuit
uint. Excellent voltage regulator and temperature compensation circuit enable the sensor to stable
operation within a wide voltage range and temperature range, the reverse voltage protection circuit
avoids the sensor being reverse voltage damage.
Based on 0 reviews
Be the first to review “UGN3503 AH3503 Hall Effect Sensor”
Related products
-
Gas Sensor, Sensors

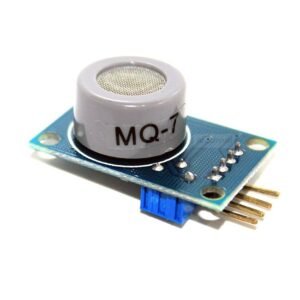

MQ7 MQ-7 Gas Sensor Detection Module
- Product Name: Gas Sensor Module;
- Model: MQ-7;
- Type: Analog
- Detecting Type : Carbonic Oxide(Co);
- Rated Voltage: DC 5V;
- Rated Current: 180mA
- Detecting Range: 100-1000ppm;
- Pin Quantity: 4;
- Pin Spacing: 1.8mm/ 0.07″
- Pin Definition: AO-analog Output, DO-Digital Output, GND- Ground, VCC-Voltage To Current Converter ;
- Total Size: 35 x 20 x 21mm/ 1.4″ x 0.79″ x 0.83″ (L*W*H)
SKU: n/a -
Current & Voltage, Sensors

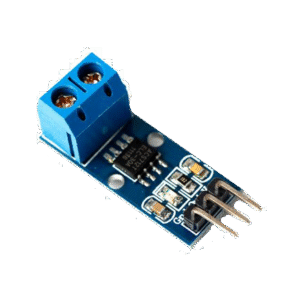

ACS712 Current Sensor 30A
