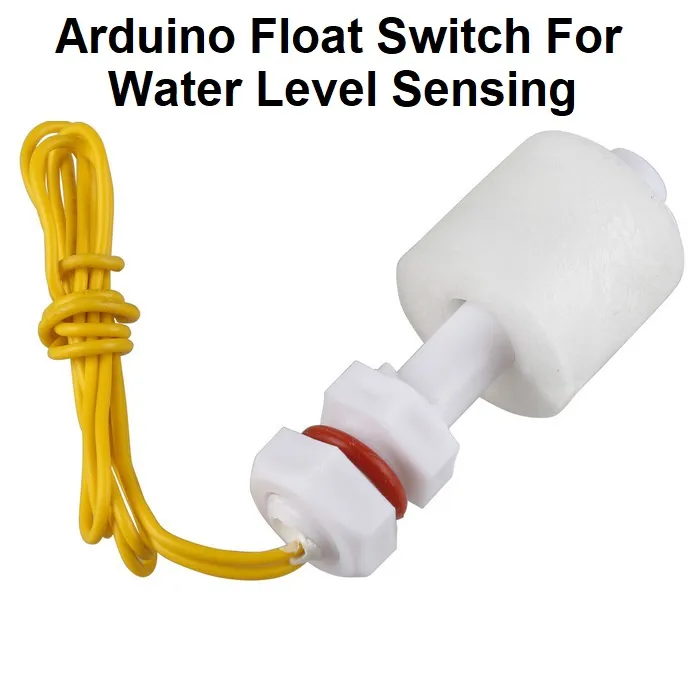

Vertical Float Switch

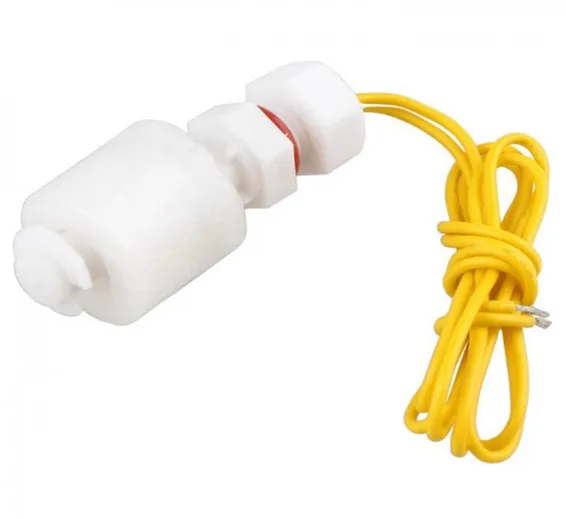

Vertical Float Switch - Image 2

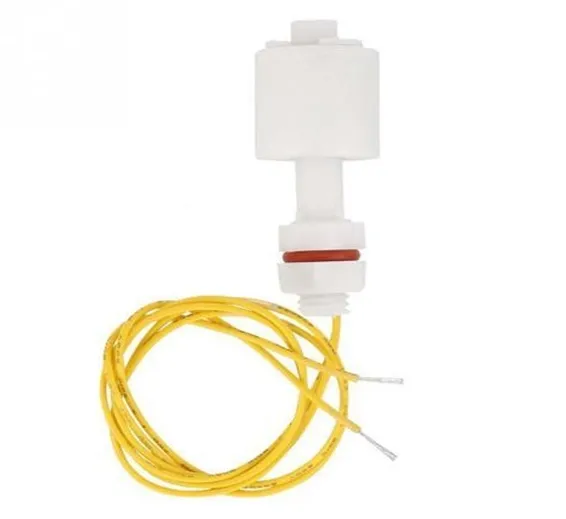

Vertical Float Switch - Image 3
, , ,

Vertical Float Switch

  • Form A Switch,1 Watt max.
  • 24v DC switching voltage max.
  • 0.1A switching current max.
  • 150v DC breakdown voltage min.
  • 7/0.2mm PVC insulated cable
  • 7/0.2mm PTFE insulated cable on Acetal switch

₨ 299 ₨ 520

Vertical Float Switch

The 20 Series Micro-Miniature Vertical Float Switch is a cost-effective mini float switch for high-volume OEM applications. The micro-miniature packaging allows for accurate sensing within a very small form factor, ideal for small spaces.

Download 20 Series Datasheet

Applications

This vertical float switch is suitable for food/beverage, automotive, consumer, and medical applications.

Technical Data

vertical float switch 20 series technical information

  • Designed for cost-sensitive high volume OEM applications
  • High-reliability reed switch lifetime of 5 x 107 operations
  • Available in UL/WRC listed PVC, Polypropylene, Acetal, and Nylon materials
  • Change from N/O to N/C by inverting the float
  • Ideal for beverage, automotive, and consumer applications

Electrical

  • Form A Switch,1 Watt max.
  • 24v DC switching voltage max.
  • 0.1A switching current max.
  • 150v DC breakdown voltage min.
  • 7/0.2mm PVC insulated cable
  • 7/0.2mm PTFE insulated cable on Acetal switch

Mechanical

  • 1/8 NPT &M10 mounting
  • 1m Cable length
  • 0.1A switching current max.
  • Float SG PVC (0.63),Polypropylene (0.49) Acetal (0.62) and Nylon (0.5)

Ordering Code

vertical float switch 20 series ordering code
