ICs
Showing 1–48 of 127 results
-
IC Base, ICs
14 Pin – DIP IC Socket/Base
14 Pin – DIP IC Socket/Base IC sockets are generally for preventing damage to IC’s from soldering and while testing multiple circuits. These are made from Black Thermoplastic and tin-plated alloy contacts. One end is notched to aid in identification. They can be mounted end to end to suit longer IC’s.
SKU: n/a -
IC Base, ICs
20 Pin – DIP IC Socket/Base
IC sockets are generally for preventing damage to IC’s from soldering and while testing multiple circuits. These are made from Black Thermoplastic and tin-plated alloy contacts. One end is notched to aid in identification. They can be mounted end to end to suit longer IC’s.
SKU: n/a -
ICs
24C16
- Low Voltage and Standard-Voltage Operation
- 2-wire Serial Interface
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- Bi-directional Data Transfer Protocol
- 100kHz and 400kHz Compatibility
- Write Protect Pin for Hardware Data Protection
- 8-byte Page (1K, 2K), 16-byte Page (4K, 8K, 16K) Write Modes
- Partial Page Writes are Allowed
- Self-timed Write Cycle (10mS max)
SKU: n/a -
IC Base, ICs
28 Pin – DIP IC Socket/Base
IC sockets are generally for preventing damage to IC’s from soldering and while testing multiple circuits. These are made from Black Thermoplastic and tin-plated alloy contacts. One end is notched to aid in identification. They can be mounted end to end to suit longer IC’s.
SKU: n/a -
ICs

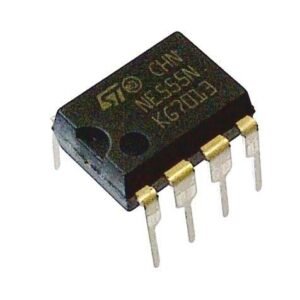

555 Timer IC
- It works from a wide range of power supplies ranging from +5V to +18V.
- Sourcing or sinking load current is 200mA.
- The external components must be selected correctly, so that the timing intervals can be completed in several minutes along with the frequencies beyond several hundred kHz.
- The o/p of a 555 timer IC can drive TTL due to its high current o/p.
- It takes a temperature stability of 50 ppm/oC change in temperature (ppm means parts per million)
- The timers duty cycle is adjustable.
- The max power dissipation per package is 600 milliwatts & its reset and trigger i/ps has logic compatibility.
SKU: n/a -
ICs
74139 Demultiplexer IC
The 74LS139 is a high speed Dual 1-of-4 Decoder/De-multiplexer. The device has two independent decoders, each accepting two inputs and providing four mutually exclusive active LOW Outputs. Each decoder has an active LOW Enable input which can be used as a data input for a 4-output demultiplexer. Each half of the LS139 can be used as a function generator providing all four minterms of two variables. The LS139 is fabricated with the Schottky barrier diode process for high speed and is completely compatible with all Motorola TTL families.
SKU: n/a -
ICs
74244 Buffer & Line Driver IC
The SN74HC244N is an Octal Buffer and Line Driver IC, designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers and bus-oriented receivers and transmitters. This device organized as two 4-bit buffers/drivers with separate output-enable (OE)/inputs. When OE/ is low, the device passes non-inverted data from the A inputs to the Y outputs. When OE/ is high, the outputs are in the high-impedance state.
SKU: n/a -
ICs
74540 Inverting Buffer IC CD4050
74HC540 is a 20 Pin Octal 3-state Inverting Buffer IC having 2V to 6V Operating Voltage range with 6mA output current. The 3-STATE buffers utilize advanced silicon-gate CMOS technology. They possess high drive current outputs which enable high speed operation even when driving large bus capacitances.
SKU: n/a -
ICs

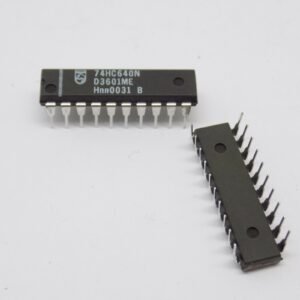

74640 IC
This Tri-state bi-directional transceiver utilize advanced silicon-gate CMOS technology and is intended for two-way asynchronous communication between data buses. They have high drive current outputs which enable high speed operation even when driving large bus capacitances. The circuit possess the low power consumption of CMOS circuitry, yet have speeds comparable to low power Schottky TTL circuits.
SKU: n/a -
-
ICs
74HC164 8-Bit Parallel-Out Shift Register
Features/Specs:
Wide Supply Voltage Range from 2.0V to 6.0V
Sinks or Sources 4mA at VCC = 4.5V
CMOS Low Power Consumption
Schmitt Trigger Action at all Inputs
ESD Protection Exceeds JESD 22v 200-V Machine Model (A115)
2000-V Human Body Model (A114)
Exceeds 1000-V Charged Device Model (C101)
Range of Package Options SO-14 and TSSOP-14
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. Green Device
SKU: n/a -
ICs

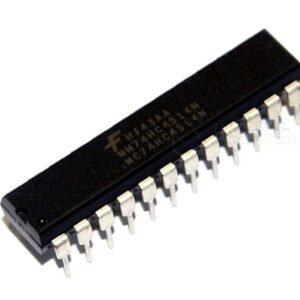

74HC4514 – 4-to-16 line Decoder/Demultiplexer
- Input levels: CMOS level
- 16-line demultiplexing capability
- Decodes 4 binary-coded inputs into 16 mutually-exclusive outputs
- Complies with JEDEC standard no. 7 A
- ESD protection: HBM JESD22-A114F exceeds 2000 V MM JESD22-A115-A exceeds 200V
- Multiple package options
- Specified from -40C to +85C and -40C to +125C
SKU: n/a -
ICs
74HC595 74HC595D Shift Register
74HC595 8-BIT SERIAL-IN SERIAL OR PARALLEL-OUT SHIFT REGISTER contain an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. The storage register has parallel 3-state outputs. Separate clocks are provided for both the shift and storage register. The shift register has a direct overriding clear (SRCLR) input, serial (SER) input, and serial outputs for cascading. When the output-enable (OE) input is high, the outputs are in the high-impedance state.
SKU: n/a -
ICs
74LS32 (or 7432) IC-OR Gate-Quad-2 Input 74-LS32
- Dual Input IC with 4 OR Gates with an operating voltage range from 3V to 18V
- Fully Static and Medium Speed Operation: with tPHL, tPLH = 60ns (typ) at 10V
- DC input current: 10mA
- High-Voltage Type (20V Rating)
- Power Dissipation: 500mW
- Maximum propagation delay is 250ns.
- Standard symmetric output
- Minimum logic Low and High voltage @+5V is1.5V and 3.5V
- Maximum Transition Time is 200ns
SKU: n/a -
-
IC Base, ICs
8 Pin – DIP IC Socket/Base
IC sockets are generally for preventing damage to IC’s from soldering and while testing multiple circuits. These are made from Black Thermoplastic and tin-plated alloy contacts. One end is notched to aid in identification. They can be mounted end to end to suit longer IC’s.
SKU: n/a -
ICs
8051 Atmel AT89C51 Microcontroller 8-bit
- Compatible with MCS-51 Products
- 4K Bytes of In-System Reprogrammable Flash Memory
- Endurance: 1,000 Write/Erase Cycles
- Fully Static Operation: 0 Hz to 24 MHz
- Three-Level Program Memory Lock
- 128 x 8-Bit Internal RAM
- 32 Programmable I/O Lines
- Two 16-Bit Timer/Counters
- Six Interrupt Sources
- Programmable Serial Channel
- Low Power Idle and Power Down Modes
SKU: n/a -
ICs
8051 Microcontroller
8051 is an 8-bit family of microcontrollers developed by Intel. This microcontroller was also referred as a system on a chip because it has 128 bytes of RAM, 4K bytes of ROM, 2 Timers, 1 Serial port, and four ports on a single chip. The CPU can work for only 8 bits of data at a time because 8051 is an 8-bit processor. In case the data is larger than 8 bits then it has to be broken into parts so that the CPU can process conveniently.
SKU: n/a -
ICs
AD7528 DAC IC
The AD7528 is a monolithic dual 8-bit digital/analog converter featuring excellent DAC-to-DAC matching. It is available in skinny 0.3″ wide 20-lead DIPs and in 20-lead surface mount packages. Separate on-chip latches are provided for each DAC to allow easy microprocessor interface.
SKU: n/a -
ICs
ATMEGA 328P ATMEGA328P-PU MICROCONTROLLER
The ATMEGA328P-PU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega328P-PU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
The AVR core combines a rich instruction set with 32 general purpose working registers. All the 32 registers are directly connected to the Arithmetic Logic Unit (ALU),allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers.The ATmega328P-PU AVR is supported with a full suite of program and system development tools including: C Compilers, Macro Assemblers, Program Debugger/Simulators, In-Circuit Emulators, and Evaluation kits.
SKU: n/a -
ICs
Atmega8 Microcontrollers IC 8Kbytes
The Atmel AVR ATmega8 is a low-power CMOS 8-bit microcontroller based on the AVR RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega8 achieves throughputs approaching 1MIPS per MHz, allowing the system designer to optimize power consumption versus processing speed.
SKU: n/a -
ICs
Atmel Attiny85 Attiny-85 ATtiny85-20PU
Features of ATtiny85 Microcontroller:-
- Flash (Kbytes): 8 Kbytes
- Pin Count: 8
- Max. Operating Freq. (MHz): 20 MHz
- CPU: 8-bit AVR
- Number of Touch Channels: 3
- Hardware QTouch Acquisition: No
- Max I/O Pins: 6
- Ext Interrupts: 6
- USB Interface:No
- Package – SMD
SKU: n/a -
Common Components, ICs
BC547-B166 NPN Transistor 50V/ 0.3A
Overall, the BC547 NPN transistor is a versatile and reliable transistor that is suitable for a wide range of applications. NPN Transistor BC547 is a popular choice for electronic hobbyists and engineers because it is inexpensive and easy to use. here are the specifications of the BC547-B166 NPN transistor:
- Collector current (maximum): 300mA
- Collector-emitter voltage (maximum): 65V
- Base current (maximum): 5mA
- Current gain (hFE): 110 to 800
- Package: TO-92
SKU: n/a -
ICs
BT134 Triac – 600V – 4A (BT134-600E) Triac
BT134 Triac – 600V – 4A (BT134-600E) Triac they are used in AC switching and control applications with current ratings from under 1A to 40A rms. Since TRIACs are bi-directional switching devices they are commonly used for switching AC applications. It has Maximum Terminal current: 4A, Max Terminal Voltage is 600 V, Gate trigger current: 25mA & On-state Gate voltage: 1.7V.
SKU: n/a -
ICs
BT139-800
The BT139 is a TRIAC thyristor, which is a type of semiconductor device that can use to control alternating current (AC) power. TRIAC thyristor BT139 is a four-quadrant device, meaning that it can conduct current in either direction. The BT139 has a peak inverse voltage (PIV) of 800 volts and a current rating of 16 amperes. It is a sensitive gate triac, meaning that it can be triggered with a low gate current. The on-state voltage drop of the BT139 is 1.2 volts. Here are some of the key features of the BT139-800E 4 Quadrant TRIAC:
- Peak inverse voltage (PIV): 800 V
- RMS current: 16 A
- Gate trigger current: 2.5 mA
- Gate trigger voltage: 1.4 V
- On-state voltage drop: 1.2 V
- Thermal resistance: 1.2 K/W (junction to mounting base)
- Operating temperature range: -40 to 125 °C
SKU: n/a -
ICs
CA3130 MOSFET Op-Amp
- Op-amp coupled with MOSFET at output
- Wide power supply Range
- Singe supply – 5V to 16V
- Dual supply – ±2.5V to ±8V
- Input Terminal current: 1mA
- Maximum Output Voltage: 13.3V
- Maximum source current: 22mA
- Maximum sink current: 20mA
- Supply current: 10mA
- Common Mode Rejection Ration (CMRR): 80dB
SKU: n/a -
ICs
CD4001 NOR Gate IC
- Technology Family: CD4000
- VCC (Min) (V): 3
- VCC (Max) (V): 18
- Channels (#): 4
- Inputs per channel: 2
- IOL (Max) (mA): 6.8
- IOH (Max) (mA): -6.8
- Input type Standard: CMOS
- Output type: Push-Pull
- 5V–10V–15V parametric ratings
- Symmetrical output characteristics
- Speed: (tpd > 50ns)
- Data rate (Max) (Mbps): 8
- Rating: Catalog
- Operating temperature range (C): -55 to 125
SKU: n/a -
ICs
CD4002 NOR Gate Dual 4-Input
- Wide supply voltage range 3.0V to 15V
- Low power 10 nW (typ.)
- High noise immunity 0.45 VDD (typ.)
- Buffered Inputs and Outputs
- Standard Symmetrical Output Characteristics
- 100% Tested for Maximum Quiescent Current at 20V
- 5V, 10V and 15V Parametric Ratings
- Maximum Input Current of 1A at 18V Over Full Package-Temperature Range; 100nA at 18V and +25oC
SKU: n/a -
ICs
CD4011 – Quad 2-Input NAND Gate
- Dual inputQuad NAND gate operation.
- Input voltage range: -0.5 to VDD +5V
- Power dissipation of 100mW per logic change.
- It is available in different outline packages
- The propagation delay time is 60ns
- All input and output pins are buffered for high throughput
- The output characteristics are standardized symmetric
- CD4011 draws a maximum input current of 1 Ampere at 18 volts
- Offers different noise margin level according to the input voltage level
- Temperature operating range is -55C to +125C
SKU: n/a -
ICs
CD4013 – Dual D-Type Flip Flop
- Asynchronous Set-Reset Capability
- Static Flip-Flop Operation
- Medium-Speed Operation: 16 MHz (Typical) Clock Toggle Rate at 10-V Supply
- Standardized Symmetrical Output Characteristics
- Maximum Input Current Of 1- A at 18 V Over Full Package Temperature Range:
- 100 nA at 18 V and 25C
- Noise Margin (Over Full Package Temperature Range):
- 1 V at VDD = 5 V
- 2 V at VDD = 10 V
- 2.5 V at VDD = 15 V
SKU: n/a -
ICs
CD4017 Decade Counter
- The supply voltage of IC 4017 ranges from 3V to 15V, usually +5V
- This IC is well-matched with Transistor-Transistor Logic or TTL.
- The operational speed/CLK speed of this IC is 5 MHz.
- It provides support to10 outputs that are decoded.
- It is available in different packages like 16-pin GDIP, PDIP & PDSO
- Input high time 30 ns
- Output current is 10 mA
- Noise immunity is high typically 0.45 VDD
- Operation is completely static
- Low power like 10 W
- Speed operation is medium like 5.0 MHz with 10V VDD
- Input Voltage or Vin ranges from 0.5 VDC to VDD +0.5 VDC
- TS or Storage Temperature ranges from 65C to +150C
- VDD or DC Supply Voltage ranges from 0.5 VDC to +18 VDC
- PD or Power Dissipation is Dual-In-Line is 700 mW
- TL or Lead Temperature is 260C
SKU: n/a -
ICs
CD4024 7-Bit Binary Counter
The CD4024 is a 7-stage ripple-carry binary counter. Buffered outputs are externally available from stages 1 through 7. The counter is reset to its logical 0 stage by a logical 1 on the reset input. The counter is advanced one count on the negative transition of each clock pulse.
SKU: n/a
