-36%
Optical Sensors/Photo Transistors, Sensors

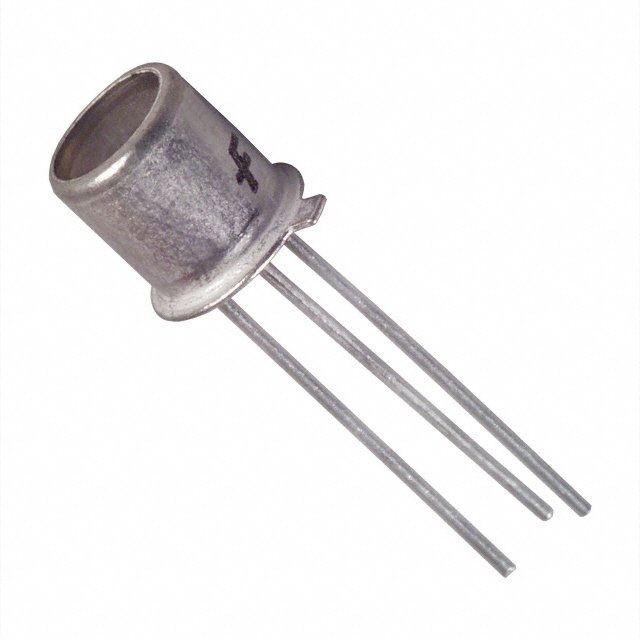

ON Semiconductor L14G3
- L14G3
- PHOTO TRANSISTOR
- PACKAGE/CASE:3-TO-18
- LEADED PROCESS COMPATIBLE: NO
- PEAK REFLOW COMPATIBLE (260 C): NO
- CURRENT RATING:2MA
- MOUNTING TYPE: THROUGH HOL
₨ 299 ₨ 468

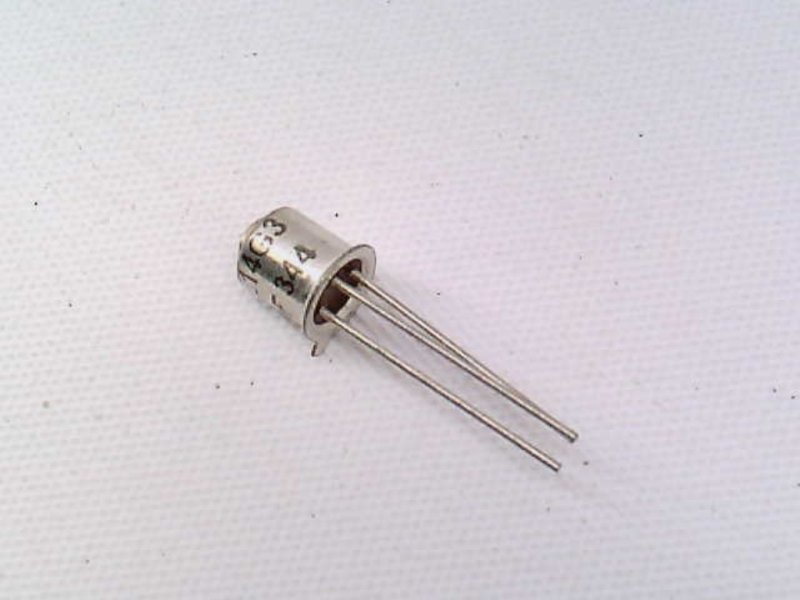

ON Semiconductor L14G3
The L14G3 is a Phototransistor with a Collector-Emitter Voltage (Breakdown) of 45 V, Collector-Emitter Voltage(Saturation) of 0.40 V, On-State Collector Current of 2 mA, and Power Dissipation of 300 to 600 mW.
- L14G3
- PHOTO TRANSISTOR
- PACKAGE/CASE:3-TO-18
- LEADED PROCESS COMPATIBLE: NO
- PEAK REFLOW COMPATIBLE (260 C): NO
- CURRENT RATING:2MA
- MOUNTING TYPE: THROUGH HOL
Based on 0 reviews
Be the first to review “ON Semiconductor L14G3”
